Part number
1SDA051360R1
$222.84 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
ABB Tmax XT

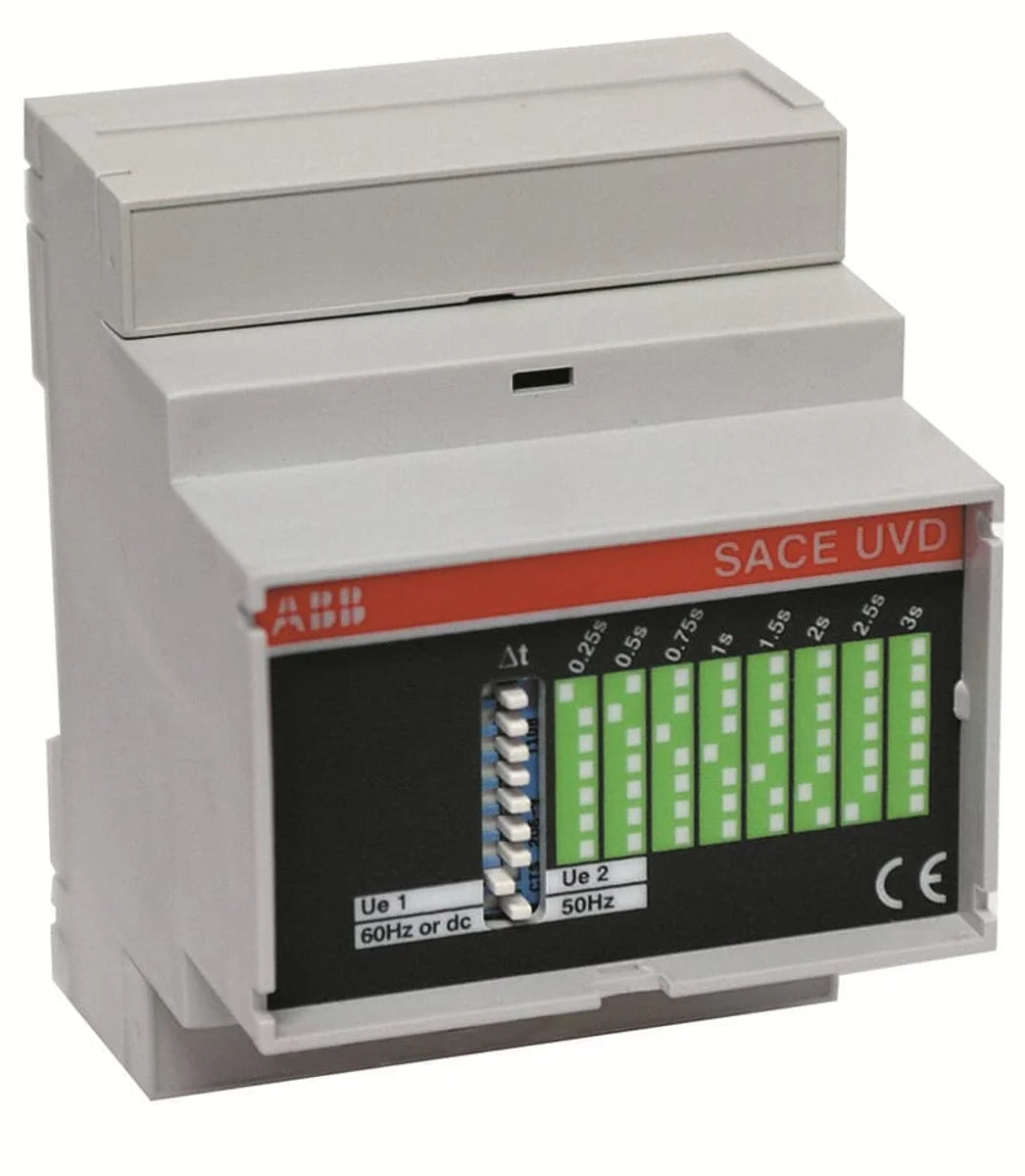

ABB 1SDA051360R1 UVD T1..T6 - XT1..XT4 110..125Va.c./d.c. Undervoltage Release Accessory (Electronic Time Delay)

RoHS Information
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
EAN
8015644517816
Description

About the 1SDA051360R1

The ABB 1SDA051360R1 UVD T1..T6 - XT1..XT4 110..125Va.c./d.c. is an electronic time delay undervoltage release accessory designed for the SACE Tmax T1–T6 and Tmax XT1–XT4 series moulded case circuit breakers. Rated for 110–125 V a.c./d.c. control voltage, this accessory automatically trips the connected circuit breaker when supply voltage drops below the set threshold, protecting motors, drives, and critical loads from damage caused by sustained undervoltage conditions. Compact and certified to IEC 60947-2, it integrates directly into the breaker frame without additional wiring complexity.

Certifications & Standards

  • CE: Compliant with EU low-voltage and electromagnetic compatibility directives
  • IEC 60947-2: Meets international standard for low-voltage circuit breakers and associated accessories
  • UL 489: Listed to UL standard for moulded case circuit breakers and circuit-breaker enclosures
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation (EC) No 1907/2006 on chemical substances
  • WEEE: Compliant with Waste Electrical and Electronic Equipment Directive 2012/19/EU

Applications & Use Cases

  • Motor and drive protection in industrial control panels where sustained undervoltage can cause overheating or stall conditions
  • Generator and UPS switchgear applications requiring automatic tripping on voltage loss or excessive voltage dip
  • li>
  • Process automation systems requiring fail-safe disconnection of critical loads during power quality events
  • Building services and infrastructure switchboards with T1–T6 or XT1–XT4 Tmax breakers already installed
Specification

Full specification

36 values · Last verified 30 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 1

Product Net Weight 0.258 kg

Additional Information 5

Product Main Type Accessories for Tmax XT
Product Name Accessory
Product Type Accessory
Suitable For T1, T2, T3, T4, T5, T6, XT1, XT2, XT3, XT4
Suitable for Product Class SACE Tmax T, SACE Tmax XT
Show all 36 specifications ↓ Show less ↑29 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 10

Part number 1SDA051360R1
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644517816
ETIM class EC002052
eCl@ss 27370426
Minimum Order Quantity 1 piece
Customs Tariff Number 85389099

Technical 5

Configuration Type Loose or configurable
Current Type AC/DC
Order Multiple 1 piece
Rated Voltage (Ur) 110 ... 125 V AC, 110 ... 125 V DC
Standards IEC60947-2, UL489

External Classifications and Standards 4

ETIM 10 EC002052 - Time delay under voltage coil
UNSPSC 39120000
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370426

Logistics 10

Package Level 1 Units 1 piece
Package Level 1 Width 105 mm
Package Level 1 Height 95 mm
Package Level 1 Depth / Length 150 mm
Package Level 1 Gross Weight 0.272 kg
Package Level 1 EAN 8015644517816
Shipping weight 0.272 kg
Ships from Türkiye
Dispatch 17 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA051360R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • IEC60947-2
  • UL489
Quick answers

Questions about the 1SDA051360R1

What is the HS code of 1SDA051360R1 for customs?

The tariff (HS) code on file for 1SDA051360R1 is 85389099.

What is the EAN of 1SDA051360R1?

The EAN (GTIN) of 1SDA051360R1 is 8015644517816.

Where does 1SDA051360R1 ship from, and how fast?

1SDA051360R1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
