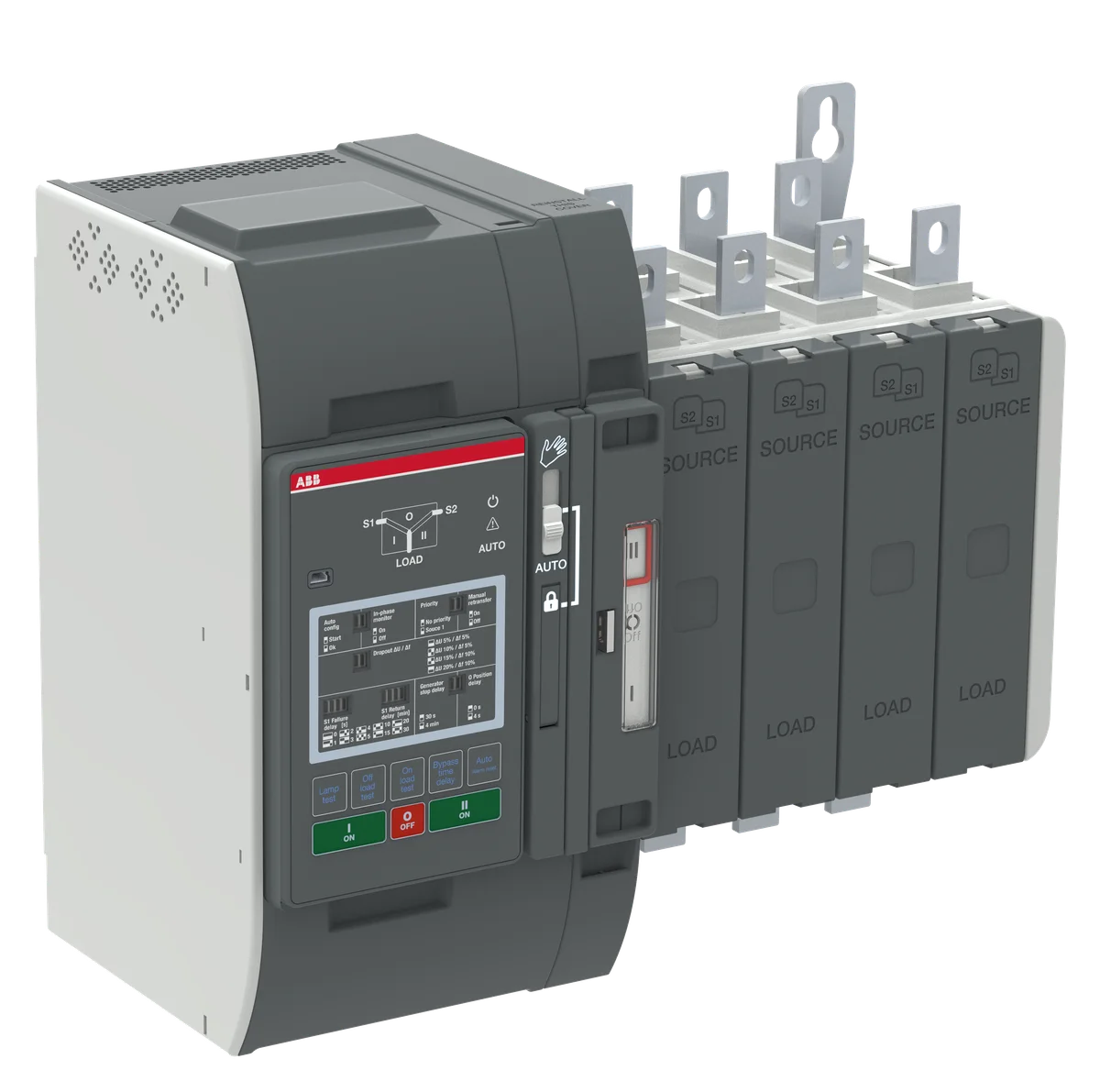

The ABB OXB250E3S2QT automatic transfer switch (SKU 1SCA153457R1001) is a 4-pole, open-style ATS from the TruONE series, rated for 200–480 VAC and engineered for seamless source switching in critical power infrastructure. Designed to meet the demands of industrial and commercial applications, the OXB250E3S2QT ensures reliable changeover between primary and backup power supplies, minimising downtime in control panels and distribution systems.
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
| Product Net Width | 375 mm, 14.76 in |
|---|---|
| Product Net Height | 305 mm, 12.01 in |
| Product Net Depth / Length | 183 mm, 7.2 in |
| Product Net Weight | 15.57 kg, 34.33 lb |
| Part number | 1SCA153457R1001 |
|---|---|
| Type designation | OXB250E3S2QT |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019844831 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Controller Type | Level 2 (DIP) |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Fourth Pole Position | Left and Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct Mount |
| Number of Poles | 4P |
| Position of Line Terminals | Supplies on Top - Load on Bottom |
| Power Loss | at Rated Operating Conditions per Pole 9.7 W, Total 29.1 W |
| Rated Frequency (f) | Main Circuit 50-60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-31B (Ie) | (200 … 415 V AC) 250 A |
| Rated Operational Current AC-32B (Ie) | (200 … 415 V AC) 250 A |
| Rated Operational Current AC-33B (Ie) | (200 … 415 V AC) 250 A |
| Rated Operational Voltage | Main Circuit 200...480 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 18 kiloampere rms |
| Special Functions | Open style |
| Standards | IEC60947-6-1 |
| Terminal Type | Bolt |
| Transition Type | Delayed |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 345 mm, 13.58 in |
| Package Level 1 Depth / Length | 445 mm, 17.52 in |
| Package Level 1 Height | 240 mm, 9.45 in |
| Package Level 1 Gross Weight | 16.27 kg, 35.87 lb |
| Package Level 1 EAN | 6417019844831 |
| Shipping weight | 16.27 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of OXB250E3S2QT is 200–480 V AC.
The tariff (HS) code on file for OXB250E3S2QT is 85365080.
The EAN (GTIN) of OXB250E3S2QT is 6417019844831.
OXB250E3S2QT ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
