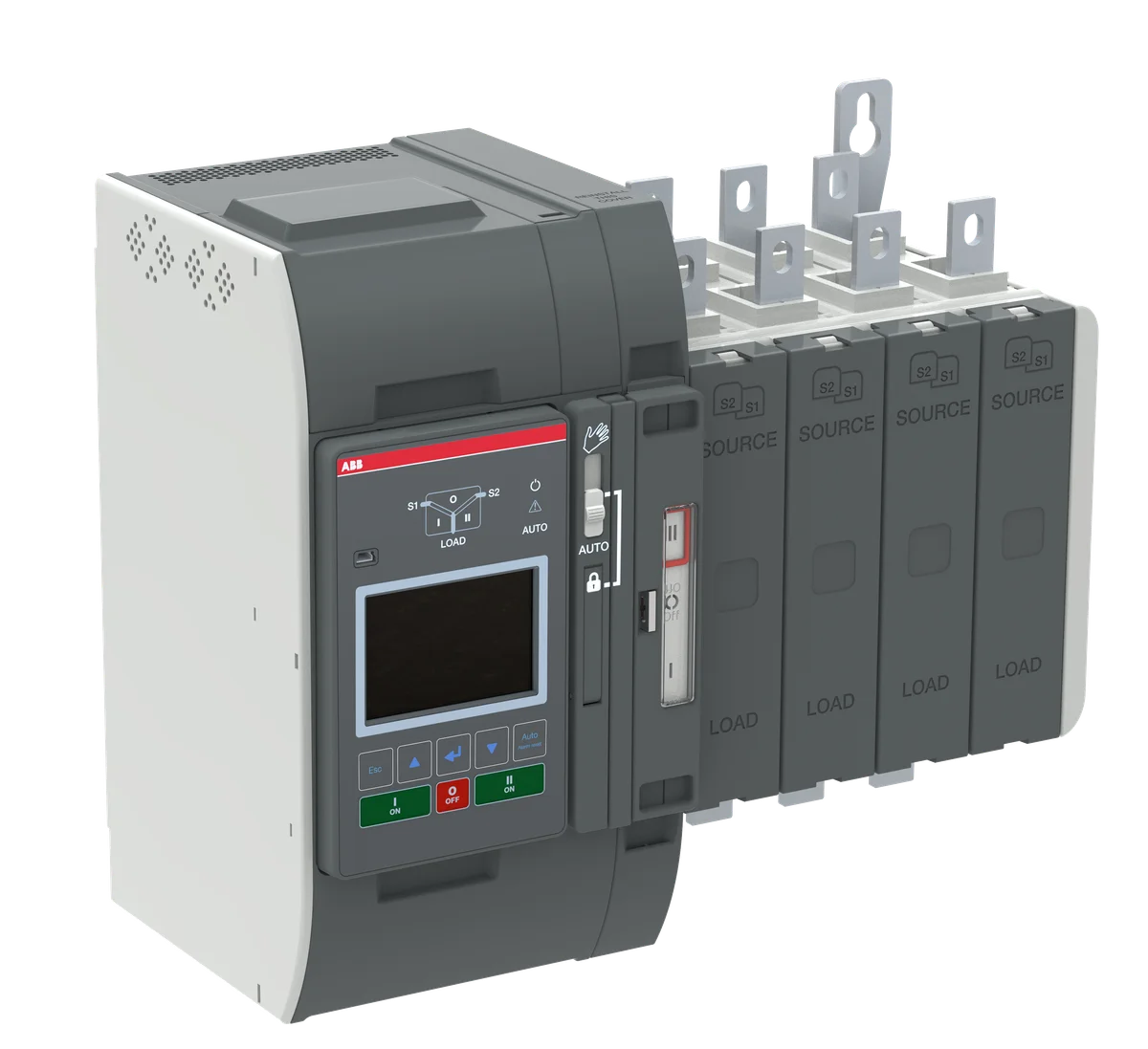

The ABB OXB200E3S3QT (SKU: 1SCA153430R1001) is a 4-pole open-style automatic transfer switch from the ABB TruONE series, rated for 200–480 VAC operation. Designed for reliable power source changeover in critical industrial and commercial applications, this ATS ensures seamless transition between primary and backup supplies, protecting connected loads from supply interruptions. Weighing 16.27 kg, the OXB200E3S3QT is built for panel integration in demanding control environments.
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
| Product Net Width | 375 mm, 14.76 in |
|---|---|
| Product Net Height | 305 mm, 12.01 in |
| Product Net Depth / Length | 183 mm, 7.2 in |
| Product Net Weight | 15.57 kg, 34.33 lb |
| Part number | 1SCA153430R1001 |
|---|---|
| Type designation | OXB200E3S3QT |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019844565 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Controller Type | Level 3 (LCD) |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Fourth Pole Position | Left and Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct Mount |
| Number of Poles | 4P |
| Position of Line Terminals | Supplies on Top - Load on Bottom |
| Power Loss | at Rated Operating Conditions per Pole 5.8 W, Total 17.4 W |
| Rated Frequency (f) | Main Circuit 50-60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-31B (Ie) | (200 … 415 V AC) 200 A |
| Rated Operational Current AC-32B (Ie) | (200 … 415 V AC) 200 A |
| Rated Operational Current AC-33B (Ie) | (200 … 415 V AC) 200 A |
| Rated Operational Voltage | Main Circuit 200...480 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 18 kiloampere rms |
| Special Functions | Open style |
| Standards | IEC60947-6-1 |
| Terminal Type | Bolt |
| Transition Type | Delayed |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 345 mm, 13.58 in |
| Package Level 1 Depth / Length | 445 mm, 17.52 in |
| Package Level 1 Height | 240 mm, 9.45 in |
| Package Level 1 Gross Weight | 16.27 kg, 35.87 lb |
| Package Level 1 EAN | 6417019844565 |
| Shipping weight | 16.27 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of OXB200E3S3QT is 200–480 V AC.
The tariff (HS) code on file for OXB200E3S3QT is 85365080.
The EAN (GTIN) of OXB200E3S3QT is 6417019844565.
OXB200E3S3QT ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
