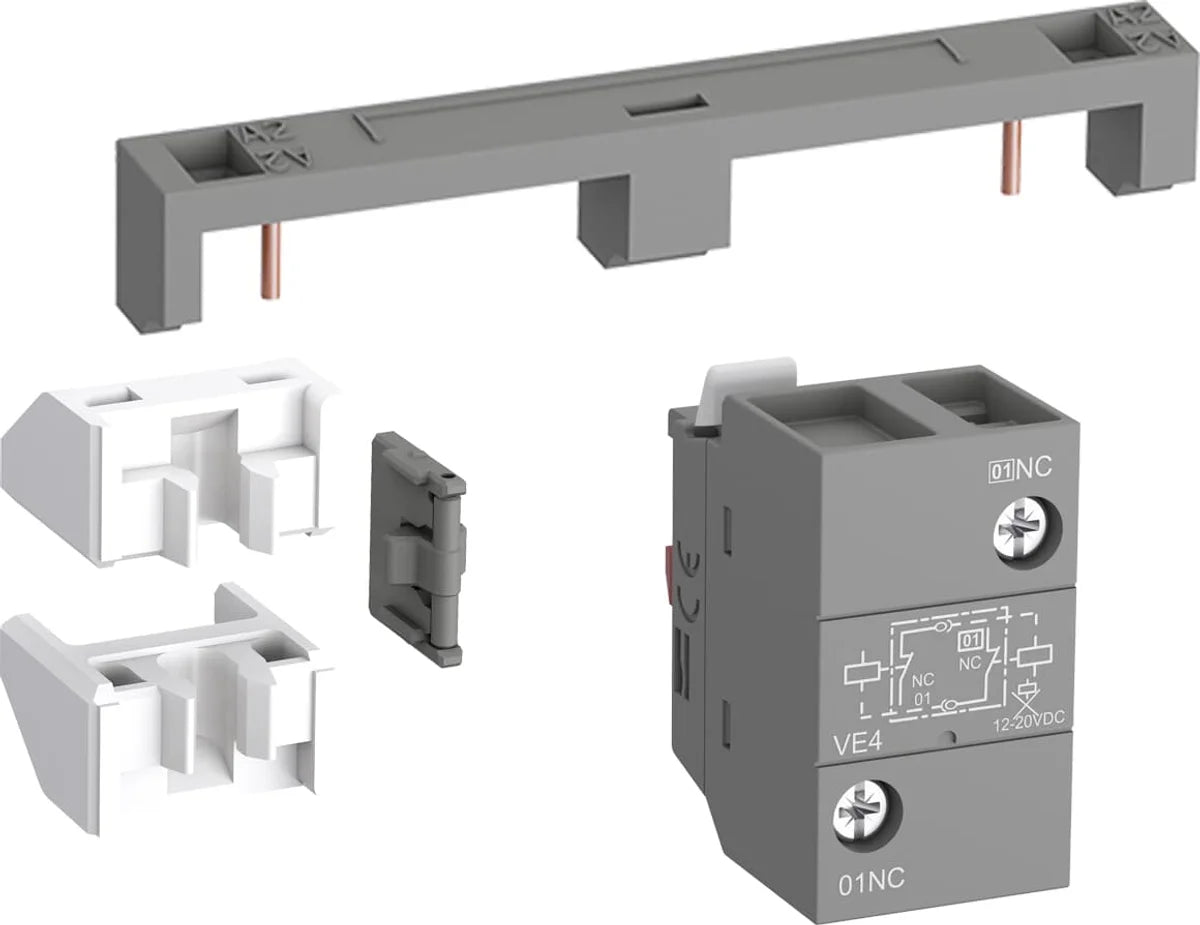

The ABB VEM4 (1SBN030111R1000) is a Mechanical and Electrical Interlock Set designed to prevent simultaneous operation of two contactors or switches, ensuring safe and reliable interlocking in industrial control panels. The VEM4 is a 2-pole interlock accessory with a compact footprint of 25 mm × 43 mm × 31.6 mm and a lightweight 35 g construction, making it ideal for space-constrained switchgear installations.
| Product Net Width | 25 mm |
|---|---|
| Product Net Depth / Length | 31.6 mm |
| Product Net Height | 43 mm |
| Product Net Weight | 0.035 kg |
| Number of Auxiliary Contacts NO | 0 |
|---|---|
| Number of Auxiliary Contacts NC | 2 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1 |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Maximum Electrical Switching Frequency | 1200 cycles per hour |
| Mechanical Durability | 5 million |
| Maximum Mechanical Switching Frequency | 1800 cycles per hour |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Rigid Solid 1/2x 1 ... 2.5 mm², Rigid Stranded 1/2x 1 ... 2.5 mm² |
| Wire Stripping Length | Auxiliary Circuit 10 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Tightening Torque | Auxiliary Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, AF09B, AF09ZB, AF12B, AF12ZB, AF16B, AF16ZB, AF26B, AF26ZB, AF30B, AF30ZB, AF38B, AF38ZB |
| Product Name | Mechanical and Electrical Interlock Set |
| Maximum Operating Voltage UL/CSA | Auxiliary Circuit 500 V AC/DC |
|---|---|
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lb |
| Part number | 1SBN030111R1000 |
|---|---|
| Type designation | VEM4 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 3471523130616 |
| eCl@ss | 27371303 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| REACH Declaration | 2CMT2021-006202 |
|---|---|
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 7 | EC001044 - Mechanic interlock for switch |
|---|---|
| eClass | V11.0 : 27371303 |
| UNSPSC | 39122221 |
| E-Number (Sweden) | 3210004 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 92 mm |
| Package Level 1 Depth / Length | 35 mm |
| Package Level 1 Height | 46 mm |
| Package Level 1 Gross Weight | 0.035 kg |
| Package Level 1 EAN | 3471523130616 |
| Package Level 2 Units | box 132 piece |
| Package Level 2 Gross Weight | 4.62 kg |
| Shipping weight | 0.035 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for VEM4 is 85389099.
The EAN (GTIN) of VEM4 is 3471523130616.
VEM4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
