ABB 1SBL397001R1311 AF80-30-11-13 3-Pole 125A 1000V AC-1 100-250V Coil Power Contactor AC Switching

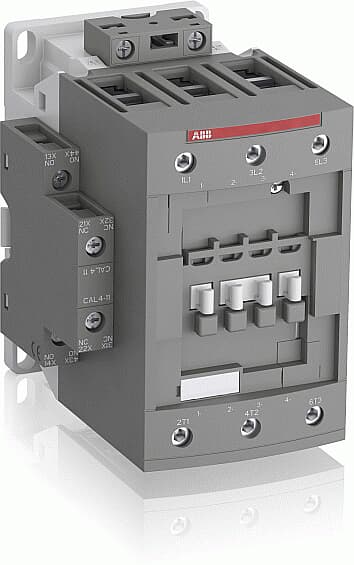

The ABB AF80-30-11-13 (SKU: 1SBL397001R1311) is a 3-pole power contactor designed for AC switching applications in industrial automation and control panel environments. Rated at 125 A (AC-1) and up to 1000 V IEC, it delivers 37 kW at 400 V AC (AC-3) with a wide-range 100–250 V AC/DC coil, making it highly versatile across global installations. Part of ABB's AF series, this contactor combines robust performance with a compact 82 × 125.5 × 116 mm footprint and a weight of just 1.21 kg.

Technical Specifications

Certifications & Standards

• CE: European Conformity — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed — equivalent to CE for Great Britain market
• UL: UL 60335-2-40 — UL Listed under file LZGH2A2L
• UL 60947-1: Low-voltage switchgear and controlgear — general rules
• UL 60947-4-1: Contactors and motor-starters (UL standard)
• CSA: CSA C22.2 No. 60335-2-40 — CSA certified under LZGH2A2L
• CSA C22.2 No. 60947-1:22: Low-voltage switchgear and controlgear — general rules (CSA)
• CSA C22.2 No. 60947-4-1:22: Contactors and motor-starters (CSA standard)
• IEC 60947-1 / EN 60947-1: Low-voltage switchgear and controlgear — general rules
• IEC 60947-4 / EN 60947-4: Contactors and motor-starters
• IEC 60947-5: Control circuit devices and switching elements
• IEC 60068-2-27: Environmental testing — shock
• CCC: China Compulsory Certification for the Chinese market
• CB: IEC CB Scheme — internationally recognised safety certification
• ABS: American Bureau of Shipping — marine and offshore approval
• BV: Bureau Veritas — marine and industrial type approval
• EN 45555: General methods for the assessment of the ability to recover resources from electrical and electronic equipment
• REACH: Compliant with EU REACH regulation on chemical substances
• RoHS: Restriction of Hazardous Substances — EU Directive compliant
• WEEE: Waste Electrical and Electronic Equipment Directive compliant

Applications & Use Cases

• Motor starting and switching in industrial automation systems
• HVAC compressor and pump control (AC-3 duty)
• Control panel integration for manufacturing machinery
• Heating and resistive load switching (AC-1 duty)
• Marine and offshore installations (ABS/BV approved)
• Global deployments requiring UL/CSA/CE/CCC multi-certification

Frequently Asked Questions

• What is the coil voltage range for the AF80-30-11-13? The coil accepts 100–250 V AC/DC at 50/60 Hz, eliminating the need for multiple coil variants across different supply voltages.
• What auxiliary contacts are included? The AF80-30-11-13 configuration includes 1 NO + 1 NC auxiliary contacts (as indicated by the -11-13 designation).
• Is this contactor suitable for UL-listed installations? Yes. It is UL Listed (UL 60947-4-1, UL 60335-2-40) and CSA certified, rated at 105 A general use and 60 hp at 480 V for North American applications.
• What is the rated power for motor applications? 37 kW at 400 V AC under AC-3 duty (IEC), and 60 hp at 480 V (UL).
