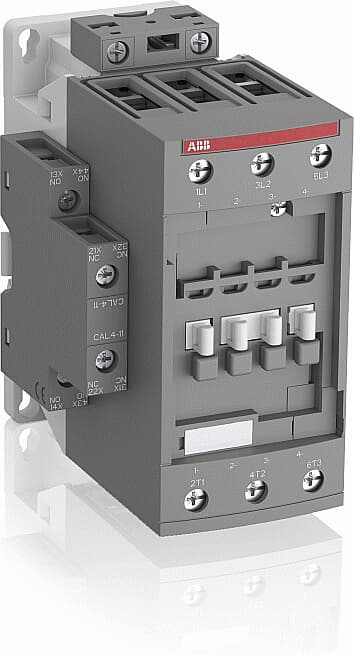

ABB 1SBL387001R1311 AF65-30-11-13 3-Pole 105A 690V AC-1 30kW 100-250V Coil Power Contactor AC Switching

The ABB AF65-30-11-13 power contactor (SKU: 1SBL387001R1311) is a 3-pole AC switching contactor rated at 105 A AC-1 and 690 V IEC, delivering 30 kW at 400 V AC-3 for demanding industrial motor and load control applications. Featuring a wide-range coil accepting 100–250 V AC/DC (50/60 Hz), the AF65-30-11-13 eliminates the need for separate AC and DC coil versions, simplifying spares inventory and panel design. Compact at 67 × 125.5 × 111 mm and weighing just 0.99 kg, it fits readily into space-constrained control panels.

Technical Specifications

Certifications & Standards

• CE: European Conformity — meets EU low voltage and EMC directives
• UKCA: UK Conformity Assessed — compliant for Great Britain market
• UL: Underwriters Laboratories listed for North American markets
• UL 60947-1: UL standard for low-voltage switchgear and controlgear — general rules
• UL 60947-4-1: UL standard for contactors and motor starters
• UL 60335-2-40: UL standard for heat pumps, air conditioners and dehumidifiers
• UL 60335-2-40 LZGH2 A2L: UL certification covering A2L low-GWP refrigerant applications
• CSA: Canadian Standards Association certification
• CSA C22.2 No.60947-1:22: CSA standard for low-voltage switchgear — general rules
• CSA C22.2 No.60947-4-1:22: CSA standard for contactors and motor starters
• CSA C22.2 No. 60335-2-40: CSA standard for HVAC equipment
• CSA C22.2 No.60335-2-40 LZGH2 A2L: CSA certification for A2L refrigerant equipment
• CSA C22.2 No.60947: CSA series standard for low-voltage switchgear
• CSA C22.2 No.60335: CSA series standard for household and similar electrical appliances
• CCC: China Compulsory Certification for the Chinese market
• ABS: American Bureau of Shipping — marine and offshore applications
• BV: Bureau Veritas — international classification and certification
• CB: IECEE CB Scheme — international safety certification mutual recognition
• IEC 60947-1 / EN 60947-1 / IEC/EN 60947-1: International and European standard for low-voltage switchgear — general rules
• IEC 60947-4 / EN 60947-4 / IEC/EN 60947-4: International and European standard for contactors and motor starters
• IEC 60947-5: IEC standard for control circuit devices and switching elements
• IEC60068-2: Environmental testing standard — vibration, temperature, humidity
• REACH: EU regulation on chemical substances — compliant
• RoHS: Restriction of Hazardous Substances — compliant
• WEEE: Waste Electrical and Electronic Equipment directive — compliant
