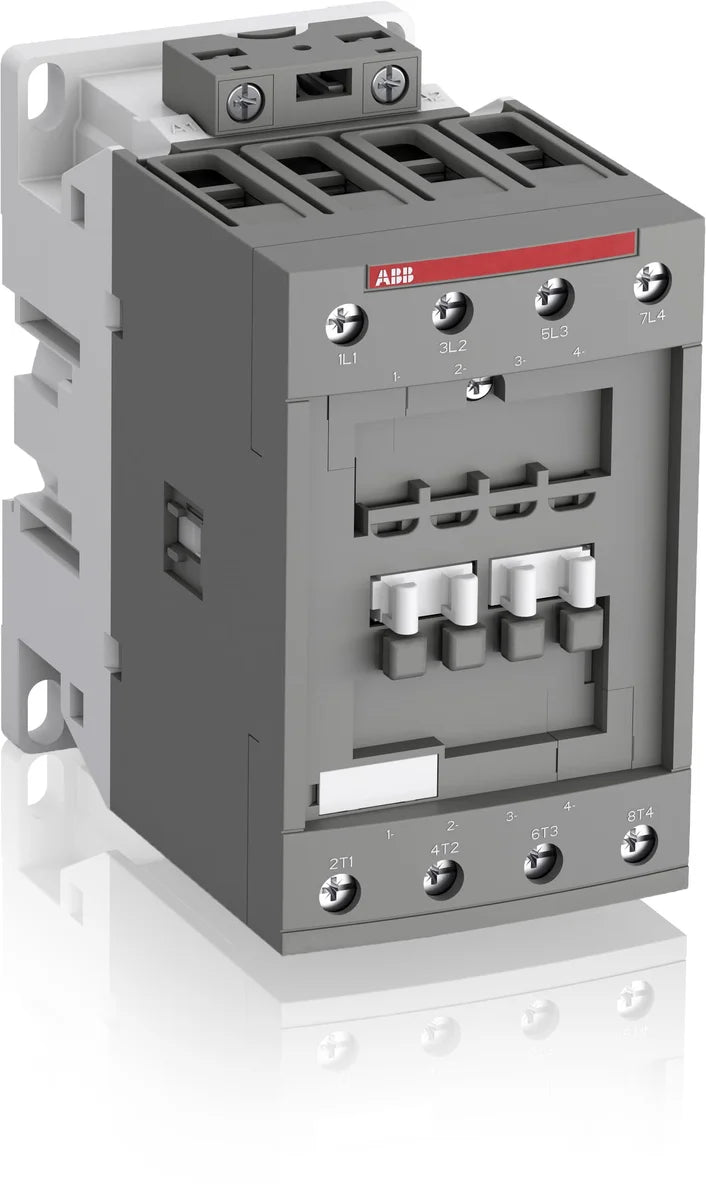

ABB 1SBL367201R1300 AF52-40-00-13 4-Pole 100A 690V AC 22kW Coil 100-250V Power Contactor AC Switching

The ABB AF52-40-00-13 power contactor (SKU 1SBL367201R1300) is a 4-pole AC switching contactor rated at 100 A (AC-1) and 690 V IEC, delivering 22 kW at 400 V AC-3 with a wide-range coil accepting 100–250 V AC/DC. Designed for demanding industrial automation and motor control applications, the AF52-40-00-13 features ABB's patented coil technology for reliable operation across a broad voltage window, making it ideal for global deployments in control panels, motor starters, and distribution systems.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed — compliance for the Great Britain market
• UL: Underwriters Laboratories listed for North American market
• CSA: Canadian Standards Association certified
• CCC: China Compulsory Certification for the Chinese market
• CB: CB Scheme international safety certification
• DNV: Det Norske Veritas — marine and offshore type approval
• KC: Korea Certification mark
• LR: Lloyd's Register type approval
• RMRS: Russian Maritime Register of Shipping approval
• IEC 60947-1 / EN 60947-1 / IEC/EN 60947-1: Low-voltage switchgear and controlgear — general rules
• IEC 60947-4 / EN 60947-4 / IEC/EN 60947-4: Contactors and motor starters
• UL 60947-1: UL standard for low-voltage switchgear — general rules
• UL 60947-4-1: UL standard for electromechanical contactors and motor starters
• UL 60335-2-40 LZGH2A2L: UL standard for particular requirements — heat pumps, air conditioners and dehumidifiers
• CSA C22.2 No.60947-1:22: CSA standard for low-voltage switchgear — general rules
• CSA C22.2 No.60947-4-1:22: CSA standard for electromechanical contactors and motor starters
• CSA C22.2 No.60335-2-40 LZGH2A2L: CSA standard for heat pumps and air conditioners
• CSA C22.2 No.60335: CSA standard for household and similar electrical appliances
• CSA C22.2 No.60947: CSA standard for low-voltage switchgear and controlgear
• IEC60947-1: IEC standard for low-voltage switchgear — general rules
• EN45555: General methods for assessing the ability of energy-related products to be repaired, reused and recycled
• REACH: EU regulation on registration, evaluation, authorisation and restriction of chemicals
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• WEEE: Waste Electrical and Electronic Equipment Directive compliance

Applications & Use Cases

• Industrial motor control and motor starter circuits up to 22 kW at 400 V
• HVAC systems — heating, ventilation, air conditioning and heat pump applications (UL 60335-2-40 listed)
• Marine and offshore installations (DNV and LR approved)
• Control panel and switchgear assembly for automation and process control
• Power distribution switching in industrial, commercial, and building automation environments
• Global multi-voltage installations using the wide-range 100–250 V AC/DC coil
