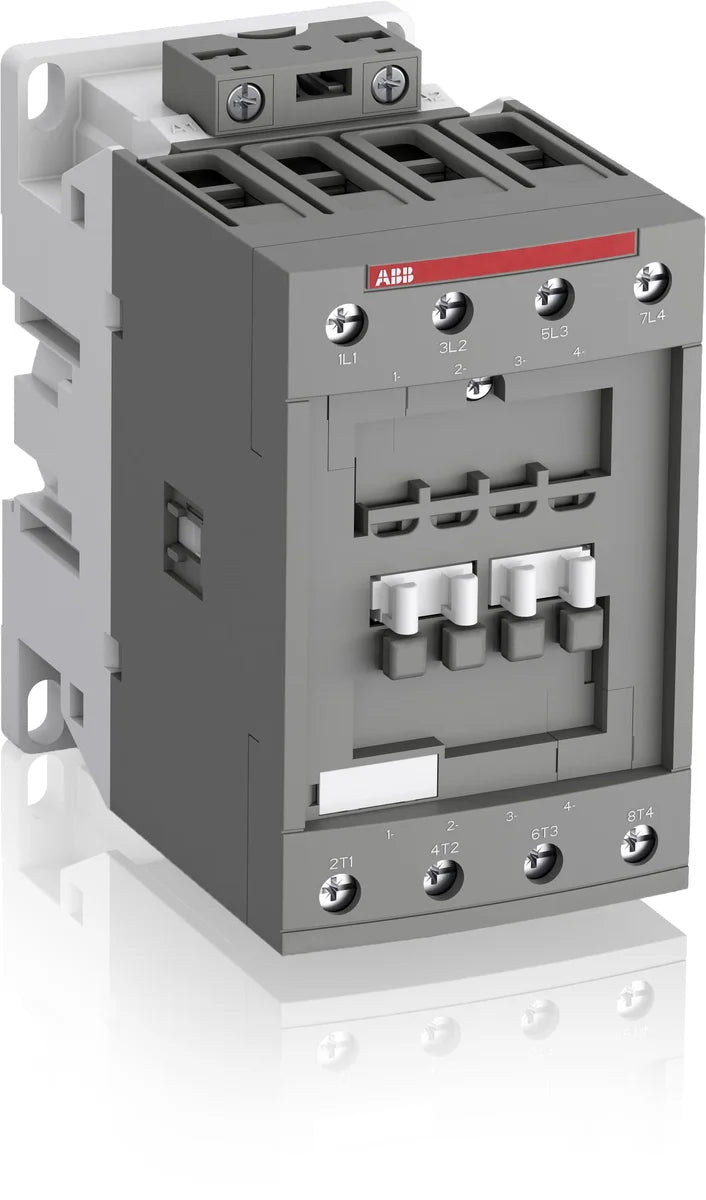

ABB 1SBL367201R1100 AF52-40-00-11 4-Pole 100A AC-1 22kW 690V 24-60V AC/DC Coil Contactor
Brand:
ABB
Reference No:
1SBL367201R1100
Catalog No:
AF52-40-00-11
Series:
AF52
Tariff Code (GTIP):
85364900
- Description
The ABB AF52-40-00-11 contactor (SKU: 1SBL367201R1100) is a 4-pole, 100 A AC-1 rated power contactor from the ABB AF52 series, designed for motor and resistive load switching up to 690 V IEC / 600 V UL. With a wide-range coil accepting 24–60 V AC (50/60 Hz) or 20–60 V DC, the AF52-40-00-11 delivers flexible installation across diverse industrial control systems and supports 22 kW motor loads at 400 V AC (AC-3).
Technical Specifications
| Catalog Number | AF52-40-00-11 |
| SKU | 1SBL367201R1100 |
| Brand | ABB |
| Series | AF52 |
| EAN / Barcode | 3471523133617 |
| Number of Poles | 4 |
| Rated Current (AC-1) | 100 A |
| Rated Current (UL General Use) | 80 A |
| Motor Power (AC-3 / 400 V) | 22 kW |
| Rated Voltage (IEC) | 690 V |
| Rated Voltage (UL) | 600 V |
| Coil Voltage AC | 24–60 V, 50/60 Hz |
| Coil Voltage DC | 20–60 V DC |
| Utilization Category | AC-1, AC-3 |
| Package Dimensions (L × W × H) | 150 mm × 150 mm × 103 mm |
| Gross Weight | 1.32 kg |
| Product Type | Contactor |
Certifications & Standards
- CE: European Conformity — meets EU safety, health, and environmental requirements
- UKCA: UK Conformity Assessed — compliant for Great Britain market
- UL: UL Listed — verified by Underwriters Laboratories for North American markets
- DNV: Det Norske Veritas — approved for marine and offshore applications
- KC: Korea Certification mark for the South Korean market
- LR: Lloyd's Register — recognized for marine equipment compliance
- RMRS: Russian Maritime Register of Shipping — marine type approval
- CCC: China Compulsory Certification for the Chinese market
- CSA: Canadian Standards Association — compliant for Canadian market
- REACH: Compliance with EU REACH regulation on chemical substances
- RoHS: Restriction of Hazardous Substances — compliant with EU directive
- WEEE: Waste Electrical and Electronic Equipment directive compliant
- IEC 60947-1 / EN 60947-1 / IEC/EN 60947-1 / IEC60947-1: Low-voltage switchgear and controlgear — general rules
- IEC 60947-4 / EN 60947-4 / IEC/EN 60947-4: Low-voltage switchgear — electromechanical contactors and motor starters
- UL 60947-1: UL standard for low-voltage switchgear and controlgear — general rules
- UL 60947-4-1: UL standard for electromechanical contactors and motor starters
- UL 60335-2-40 LZGH2A2L: UL standard for household and similar appliances (HVAC)
- CSA C22.2 No.60947-1:22: CSA standard — low-voltage switchgear general rules
- CSA C22.2 No.60947-4-1:22: CSA standard — electromechanical contactors and motor starters
- CSA C22.2 No.60335-2-40 LZGH2A2L: CSA standard for HVAC appliances
- CSA C22.2 No.60335: CSA standard for household and similar electrical appliances
- CSA C22.2 No.60947: CSA standard for low-voltage switchgear and controlgear
- EN45555: General methods for the assessment of the ability to recover materials and energy from electrical and electronic equipment
Applications & Use Cases
- Motor starting and switching in industrial drives and conveyor systems up to 22 kW / 400 V
- Resistive and capacitive load switching in HVAC, pumping, and compressor control panels
- Marine and offshore power distribution boards (DNV, LR, RMRS approved)
- Building automation and commercial HVAC systems requiring wide-range DC/AC coil flexibility
- Export projects requiring multi-market certification (UL, CSA, CCC, KC, UKCA)
Technical Details
Catalog No
AF52-40-00-11
Number of Poles
4
Model Number
AF52-40-00-11
Tariff Code
85364900
