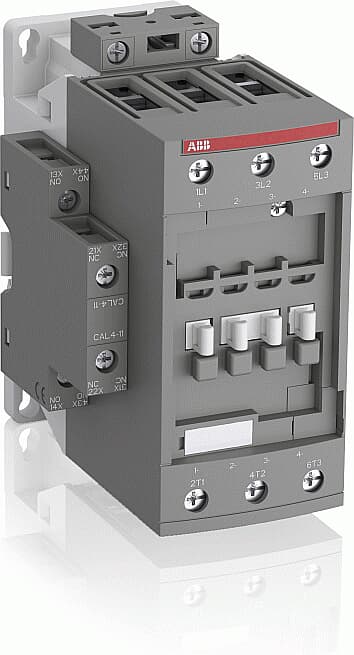

The ABB AF40-30-11-13 (SKU: 1SBL347001R1311) is a 3-pole AC power contactor from ABB's AF series, rated at 70 A AC-1 and 690 V IEC, delivering 18.5 kW at 400 V AC-3 for robust industrial AC switching applications. Featuring a wide-range coil accepting 100–250 V AC/DC (50/60 Hz), the AF40-30-11-13 simplifies installation and reduces spares inventory across diverse control systems. Compact dimensions of 67 × 125.5 × 111 mm and a lightweight 0.99 kg profile make it ideal for high-density panel layouts in industrial automation and motor control centres.
| Product Net Width | 67 mm |
|---|---|
| Product Net Depth / Length | 111 mm |
| Product Net Height | 125.5 mm |
| Product Net Weight | 0.99 kg |
| Number of Main Contacts NO | 3 |
|---|---|
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 3P |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22 |
| Rated Operational Voltage | Auxiliary Circuit 690 V, Main Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz, Control Circuit 50 / 60 Hz, Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 105 A, acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 70 A, (690 V) 60 °C 60 A, (690 V) 70 °C 50 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 60 °C 40 A, (440 V) 60 °C 40 A, (500 V) 60 °C 35 A, (690 V) 60 °C 25 A, (380 / 400 V) 60 °C 40 A, (220 / 230 / 240 V) 60 °C 40 A |
| Rated Operational Current AC-3e (Ie) | (415 V) 60 °C 40 A, (440 V) 60 °C 40 A, (500 V) 60 °C 35 A, (690 V) 60 °C 25 A, (380 / 400 V) 60 °C 40 A, (220 / 230 / 240 V) 60 °C 40 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (400 / 440 V) 3 A |
| Rated Operational Current DC-1 (Ie) | (110 V) 2 Poles in Series, 40 °C 70 A, (110 V) 2 Poles in Series, 60 °C 60 A, (110 V) 2 Poles in Series, 70 °C 50 A, (110 V) 3 Poles in Series, 40 °C 70 A, (110 V) 3 Poles in Series, 60 °C 60 A, (110 V) 3 Poles in Series, 70 °C 50 A, (220 V) 3 Poles in Series, 40 °C 70 A, (220 V) 3 Poles in Series, 60 °C 60 A, (220 V) 3 Poles in Series, 70 °C 50 A, (72 V) 1-Pole, 40 °C 70 A, (72 V) 1-Pole, 60 °C 60 A, (72 V) 1-Pole, 70 °C 50 A, (72 V) 2 Poles in Series, 40 °C 70 A, (72 V) 2 Poles in Series, 60 °C 60 A, (72 V) 2 Poles in Series, 70 °C 50 A, (72 V) 3 Poles in Series, 40 °C 70 A, (72 V) 3 Poles in Series, 60 °C 60 A, (72 V) 3 Poles in Series, 70 °C 50 A |
| Rated Operational Current DC-3 (Ie) | (110 V) 2 Poles in Series, 40 °C 70 A, (110 V) 2 Poles in Series, 60 °C 60 A, (110 V) 2 Poles in Series, 70 °C 50 A, (110 V) 3 Poles in Series, 40 °C 70 A, (110 V) 3 Poles in Series, 60 °C 60 A, (110 V) 3 Poles in Series, 70 °C 50 A, (220 V) 3 Poles in Series, 40 °C 70 A, (220 V) 3 Poles in Series, 60 °C 60 A, (220 V) 3 Poles in Series, 70 °C 50 A, (72 V) 1-Pole, 40 °C 70 A, (72 V) 1-Pole, 60 °C 60 A, (72 V) 1-Pole, 70 °C 50 A, (72 V) 2 Poles in Series, 40 °C 70 A, (72 V) 2 Poles in Series, 60 °C 60 A, (72 V) 2 Poles in Series, 70 °C 50 A, (72 V) 3 Poles in Series, 40 °C 70 A, (72 V) 3 Poles in Series, 60 °C 60 A, (72 V) 3 Poles in Series, 70 °C 50 A |
| Rated Operational Current DC-5 (Ie) | (110 V) 2 Poles in Series, 40 °C 70 A, (110 V) 2 Poles in Series, 60 °C 60 A, (110 V) 2 Poles in Series, 70 °C 50 A, (110 V) 3 Poles in Series, 40 °C 70 A, (110 V) 3 Poles in Series, 60 °C 60 A, (110 V) 3 Poles in Series, 70 °C 50 A, (220 V) 3 Poles in Series, 40 °C 70 A, (220 V) 3 Poles in Series, 60 °C 60 A, (220 V) 3 Poles in Series, 70 °C 50 A, (72 V) 1-Pole, 40 °C 70 A, (72 V) 1-Pole, 60 °C 60 A, (72 V) 1-Pole, 70 °C 50 A, (72 V) 2 Poles in Series, 40 °C 70 A, (72 V) 2 Poles in Series, 60 °C 60 A, (72 V) 2 Poles in Series, 70 °C 50 A, (72 V) 3 Poles in Series, 40 °C 70 A, (72 V) 3 Poles in Series, 60 °C 60 A, (72 V) 3 Poles in Series, 70 °C 50 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.27 A / 60 W, (250 V) 0.27 A / 68 W, (400 V) 0.15 A / 60 W, (500 V) 0.13 A / 65 W, (600 V) 0.1 A / 60 W |
| Rated Operational Power AC-3 (Pe) | (400 V) 18.5 kW, (415 V) 22 kW, (440 V) 22 kW, (500 V) 22 kW, (690 V) 22 kW, (380 / 400 V) 18.5 kW, (220 / 230 / 240 V) 11 kW |
| Rated Operational Power AC-3e (Pe) | (415 V) 22 kW, (440 V) 22 kW, (500 V) 22 kW, (690 V) 22 kW, (380 / 400 V) 18.5 kW, (220 / 230 / 240 V) 11 kW |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 600 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 350 A, for 0.1 s 140 A, for 1 s 100 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 600 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 690 V, acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Maximum Electrical Switching Frequency | (AC-1) 600 cycles per hour, (AC-15) 1200 cycles per hour, (AC-2 / AC-4) 150 cycles per hour, (AC-3) 1200 cycles per hour, (DC-13) 900 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V, 60 Hz 100 ... 250 V, DC Operation 100 ... 250 V |
| Coil Consumption | Average Holding Value 50 / 60 Hz 4 V·A, Average Holding Value 50 Hz 4 V·A, Average Holding Value 60 Hz 4 V·A, Average Holding Value DC 2 W, Average Holding Value, from Warm State 2 W |
| Power Loss | at 6 A per Pole 0.1 W, at Rated Operating Conditions AC-1 per Pole 3 W, at Rated Operating Conditions AC-3 per Pole 1 W |
| Operate Time | Between Coil De-energization and NC Contact Closing 19 ... 105 ms, Between Coil De-energization and NO Contact Opening 17 ... 100 ms, Between Coil Energization and NC Contact Opening 38 ... 95 ms, Between Coil Energization and NO Contact Closing 42 ... 100 ms |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting by Screws (not supplied) | 2 x M4 or 2 x M6 Screws Placed Diagonally |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 4 ... 35 mm², Flexible with Insulated Ferrule 1/2x 4 ... 35 mm², Rigid Stranded 1/2x 6 ... 35 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Rigid 1/2x 1 ... 2.5 mm² |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid Solid 1/2x 1 ... 2.5 mm², Rigid Stranded 1/2x 1 ... 2.5 mm² |
| Wire Stripping Length | Auxiliary Circuit 10 mm, Control Circuit 10 mm, Main Circuit 16 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| Recommended Screw Driver | Pozidriv PZ |
| Tightening Torque | Auxiliary Circuit 1.2 N·m, Control Circuit 1.2 N·m, Main Circuit 4 N·m |
| Terminal Type | Screw Terminals |
| Product Name | Block Contactor |
| NEMA Size | 2 |
|---|---|
| Continuous Current Rating NEMA | 45 A |
| Horsepower Rating NEMA | (115 V AC) Single Phase 3 Hp, (200 V AC) Three Phase 10 Hp, (230 V AC) Single Phase 7-1/2 Hp, (230 V AC) Three Phase 15 Hp, (460 V AC) Three Phase 25 Hp, (575 V AC) Three Phase 25 Hp |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| General Use Rating UL/CSA | (600 V AC) 60 A |
| Horsepower Rating UL/CSA | (120 V AC) Single Phase 3 hp, (200 ... 208 V AC) Three Phase 10 hp, (220 ... 240 V AC) Three Phase 15, (240 V AC) Single Phase 7-1/2 hp, (440 ... 480 V AC) Three Phase 30 hp, (550 ... 600 V AC) Three Phase 40 hp |
| Connecting Capacity Main Circuit UL/CSA | Rigid Stranded 1/2x 10-2 AWG |
| Connecting Capacity Control Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG, Rigid Stranded 1/2x 18-14 AWG |
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lb, Control Circuit 11 in·lb, Main Circuit 35 in·lb |
| Full Load Amps Motor Use | (120 V AC) Single Phase 34 A, (200 ... 208 V AC) Three Phase 32.2 A, (220 ... 240 V AC) Three Phase 42 A, (240 V AC) Single Phase 40 A, (440 ... 480 V AC) Three Phase 41 A, (550 ... 600 V AC) Three Phase 40 A |
| Part number | 1SBL347001R1311 |
|---|---|
| Type designation | AF40-30-11-13 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 3471523132139 |
| eCl@ss | 27371003 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay -40 ... 70 °C, Close to Contactor without Thermal O/L Relay -40 ... 70 °C, Close to Contactor for Storage -60 ... +80 °C |
|---|---|
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | Closed, Shock Direction: A 25 g, Closed, Shock Direction: B1 25 g, Closed, Shock Direction: B2 15 g, Closed, Shock Direction: C1 25 g, Closed, Shock Direction: C2 25 g, Open, Shock Direction: B1 5 g |
| Resistance to Vibrations | 3g Closed Position & 3g Open Position 5 ... 300 Hz |
| Pollution Degree | 3 |
| REACH Declaration | 2CMT2021-006202 |
|---|---|
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 7 | EC000066 - Power contactor, AC switching |
|---|---|
| eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 150 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 97 mm |
| Package Level 1 Gross Weight | 1.09 kg |
| Package Level 1 EAN | 3471523132139 |
| Shipping weight | 1.09 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
