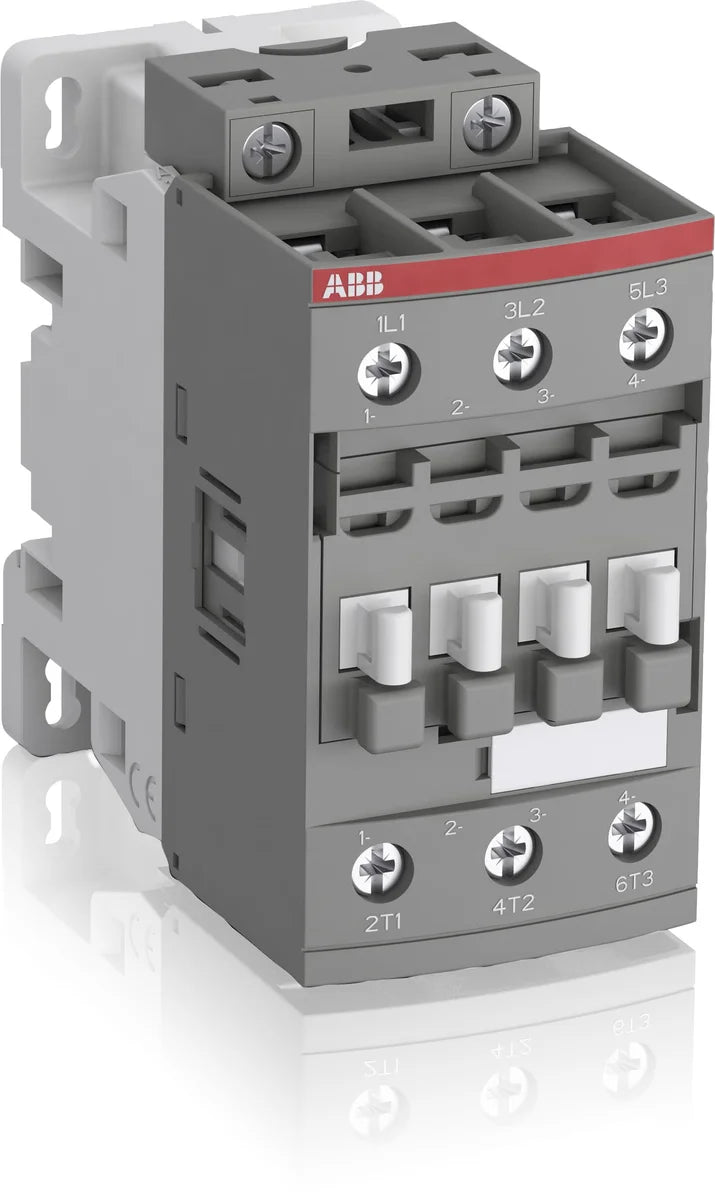

ABB 1SBL297001R1100 AF38-30-00-11 3-Pole 50A 690V AC 24-60V/20-60VDC Coil Power Contactor AC Switching
Brand:
ABB
Reference No:
1SBL297001R1100
Catalog No:
AF38-30-00-11
Series:
AF
Tariff Code (GTIP):
85364900
Stock: 172
Delivery time: 1 business day(s)
Shipping Origin: Turkey EXW
$72.18
- Description
The ABB AF38-30-00-11 (SKU: 1SBL297001R1100) is a 3-pole power contactor designed for AC switching applications, rated at 50 A and up to 690 V IEC / 600 V UL, delivering 18.5 kW at 400 V AC (AC-3). Part of ABB's AF Series, the AF38-30-00-11 features a wide-range coil accepting 24–60 V AC (50/60 Hz) and 20–60 V DC, making it highly adaptable for diverse control system voltages in industrial automation and control panel installations.
Technical Specifications
| Catalog Number | AF38-30-00-11 |
| SKU | 1SBL297001R1100 |
| Brand | ABB |
| Series | AF |
| Product Type | Power Contactor, AC Switching |
| Number of Poles | 3 |
| Rated Current | 50 A |
| Rated Voltage (IEC) | 690 V |
| Rated Voltage (UL) | 600 V |
| Motor Power (AC-3 @ 400 V AC) | 18.5 kW |
| Motor Power (UL @ 480 V) | 25 hp |
| Coil Voltage (AC) | 24–60 V, 50/60 Hz |
| Coil Voltage (DC) | 20–60 V DC |
| Dimensions (W × H × D) | 45 mm × 86 mm × 86 mm |
| Weight | 0.31 kg |
| EAN | 3471523111516 |
Certifications & Standards
- CE: European conformity marking for EU market compliance
- UKCA: UK Conformity Assessed marking for Great Britain market
- UL: Underwriters Laboratories safety certification
- CSA: Canadian Standards Association certification
- CCC: China Compulsory Certification
- CQC: China Quality Certification Centre
- ABS: American Bureau of Shipping type approval
- BV: Bureau Veritas marine/industrial certification
- CB: CB Scheme international safety certification
- UL 60335-2-40: UL standard for HVAC equipment safety
- CSA C22.2 No. 60335-2-40: Canadian standard for HVAC equipment safety
- IEC 60947-1 / EN 60947-1: Low-voltage switchgear and controlgear — general rules
- IEC 60947-4 / EN 60947-4: Low-voltage switchgear — contactors and motor starters
- UL 60947-4-1: UL standard for AC contactors and motor starters
- UL 60335-2-40 LZGH2A2L: UL listing for HVAC application use
- CSA C22.2No.60335-2-40 LZGH2A2L: CSA listing for HVAC application use
- CSA C22.2No.60947-4-1: CSA standard for contactors and motor starters
- IEC/EN 60947-1: Combined IEC/EN low-voltage switchgear general rules
- IEC/EN 60947-4: Combined IEC/EN standard for contactors and motor starters
- IEC 60068-2-27: Environmental testing — shock
- EN 45555: General methods for assessing the ability of energy-related products to be repaired, reused, or recycled
- EN 45555-94: Supplementary standard for energy-related product sustainability
- CSA C22.2No.60335: CSA group standard for appliance and equipment safety
- CSA C22.2No.60947: CSA group standard for low-voltage switchgear
- REACH: EU regulation on registration, evaluation, authorisation and restriction of chemicals
- RoHS: Restriction of Hazardous Substances directive compliance
- WEEE: Waste Electrical and Electronic Equipment directive compliance
Applications & Use Cases
- Motor switching and control in industrial automation and manufacturing
- HVAC compressor and fan motor control (UL 60335-2-40 listed)
- Control panel integration requiring wide-range coil voltage (24–60 V AC/DC)
- Marine and offshore installations (ABS, BV certified)
- Building management systems and commercial electrical infrastructure
- Applications requiring simultaneous AC and DC coil compatibility
Technical Details
Catalog No
AF38-30-00-11
Number of Poles
3
Delivery Date (Days)
1 days
Model Number
AF38-30-00-11
Tariff Code
85364900
