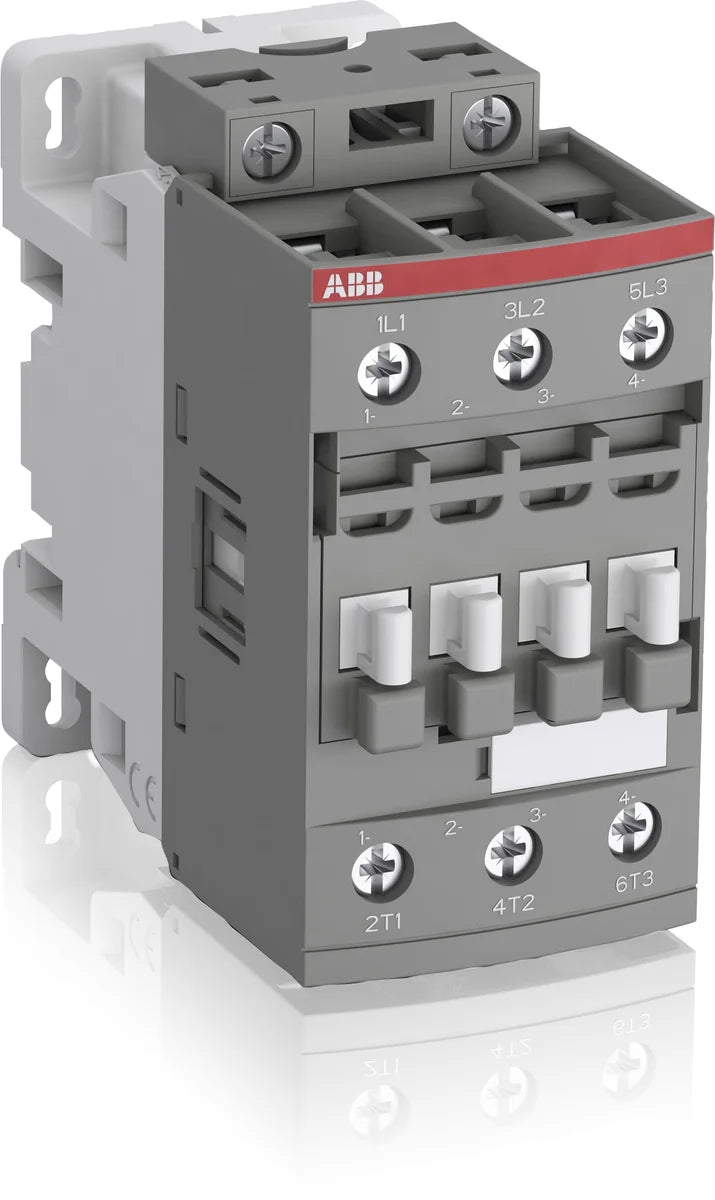

ABB 1SBL277001R1300 AF30-30-00-13 3-Pole 30A 690V 15kW Coil 100-250V AC/DC Power Contactor AC Switching

The ABB AF30-30-00-13 (SKU: 1SBL277001R1300) is a 3-pole AC power contactor rated at 30A and 690V, delivering 15kW motor-switching performance with a wide-range 100–250V AC/DC coil. Designed for demanding industrial automation and control panel applications, this AF-series contactor offers reliable AC switching in a compact 45 × 86 × 86 mm footprint weighing just 0.31 kg.

Technical Specifications

Certifications & Standards

• CE: European Conformity — meets EU low-voltage and EMC directives
• UKCA: UK Conformity Assessed — meets Great Britain market requirements
• CCC: China Compulsory Certification for the Chinese market
• CQC: China Quality Certification Centre voluntary certification
• BV: Bureau Veritas type approval
• DNV: Det Norske Veritas marine and offshore approval
• KC: Korea Certification mark for the South Korean market
• LR: Lloyd's Register type approval
• RINA: Registro Italiano Navale marine certification
• CB: IECEE CB Scheme international safety certification
• IEC 60947-1 / EN 60947-1: Low-voltage switchgear and controlgear — general rules
• IEC 60947-4 / EN 60947-4: Low-voltage switchgear — contactors and motor-starters
• IEC/EN 60947-1: Harmonised international/European general rules standard
• IEC/EN 60947-4: Harmonised international/European contactors and motor-starters standard
• IEC 60068-2: Environmental testing for electronic and electrical products
• UL 60947-4-1: UL-listed standard for contactors and motor-starters
• UL 60335-2-40 LZGH2A2L: UL listing for electrical heat pumps, air conditioners and dehumidifiers
• CSA C22.2 No. 60947-4-1: Canadian standard for contactors and motor-starters
• CSA C22.2 No. 60335-2-40 LZGH2A2L: Canadian standard for heat pumps and air-conditioning equipment
• CSA C22.2 No. 60335: Canadian standard for safety of household and similar electrical appliances
• CSA C22.2 No. 60947: Canadian standard for low-voltage switchgear and controlgear
• CSA: CSA Group certification for Canadian and North American market
• EN 45555: General methods for the assessment of the ability to recover raw materials from electrical and electronic equipment
• EN 45555-94: Supplementary European standard covering environmental product assessment
• REACH: EU REACH regulation compliance — no substances of very high concern above threshold
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• WEEE: Waste Electrical and Electronic Equipment Directive compliance

Applications & Use Cases

• Motor switching and control in HVAC systems, pumps, fans, and compressors
• Industrial automation and control panel assembly
• Building services and commercial electrical installations
• Marine and offshore panel boards (DNV, LR, RINA approved)
• Machine tool and manufacturing line motor starters
