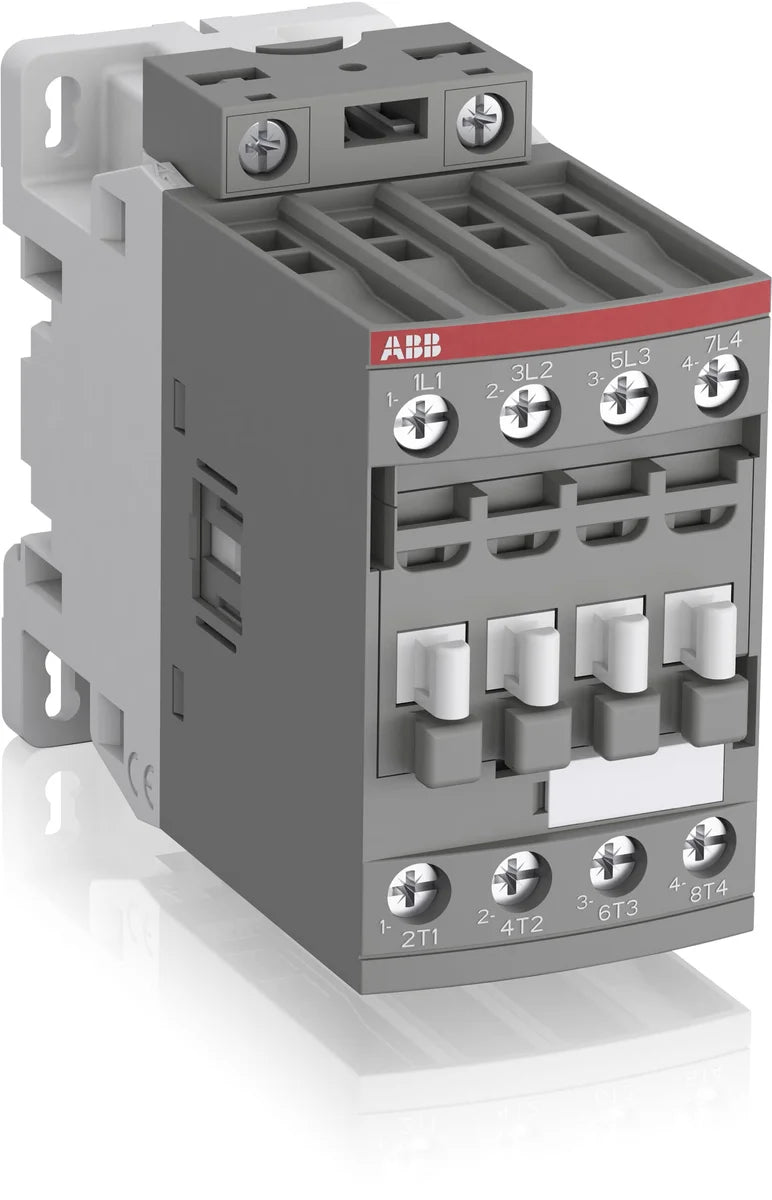

ABB 1SBL237201R1300 AF26-40-00-13 4-Pole 45A 690V 11kW Coil 100-250V AC/DC Power Contactor AC Switching
Brand:
ABB
Reference No:
1SBL237201R1300
Catalog No:
AF26-40-00-13
Series:
AF
Tariff Code (GTIP):
85364900
Stock: 527
Delivery time: 1 business day(s)
Shipping Origin: Turkey EXW
$43.30
- Description
The ABB AF26-40-00-13 power contactor (SKU 1SBL237201R1300) is a 4-pole, 45 A, 690 V AC switching contactor rated at 11 kW, designed for demanding industrial motor control and switching applications. Featuring a wide-range coil accepting 100–250 V AC/DC (50/60 Hz), the AF26-40-00-13 simplifies global stocking and eliminates coil-voltage mix-ups in multi-voltage installations. Its compact 45 × 86 × 101 mm footprint and 0.36 kg weight make it ideal for space-constrained control panels.
Technical Specifications
| Catalog Number | AF26-40-00-13 |
| SKU | 1SBL237201R1300 |
| Brand | ABB |
| Series | AF |
| Product Type | Power Contactor, AC Switching |
| Number of Poles | 4 |
| Rated Current | 45 A |
| Rated Voltage | 690 V |
| Motor Power (AC-3) | 11 kW |
| Coil Voltage | 100–250 V AC/DC, 50/60 Hz |
| Dimensions (W × H × D) | 45 mm × 86 mm × 101 mm |
| Weight | 0.36 kg |
| EAN | 3471523115231 |
Certifications & Standards
- CE: Compliant with EU Low Voltage and Electromagnetic Compatibility Directives
- UKCA: UK Conformity Assessed for the Great Britain market
- CCC: China Compulsory Certification for the Chinese market
- CQC: China Quality Certification for voluntary product certification
- DNV: Det Norske Veritas type approval for marine applications
- KC: Korea Certification mark for the South Korean market
- LR: Lloyd's Register type approval for marine and offshore use
- RINA: Registro Italiano Navale type approval for marine applications
- RMRS: Russian Maritime Register of Shipping type approval
- UL: Underwriters Laboratories listed for North American markets
- IEC 60947-1: General rules for low-voltage switchgear and controlgear
- EN 60947-1: European adoption of IEC 60947-1
- IEC 60947-4: Contactors and motor starters
- EN 60947-4: European adoption of IEC 60947-4
- UL 60947-1: UL standard for low-voltage switchgear and controlgear
- UL 60947-4-1: UL standard for electromechanical contactors and motor starters
- UL 60335-2-40 LZGH2A2L: UL standard for particular requirements for electrical heat pumps, air-conditioners and dehumidifiers
- CSA C22.2 No.60947-1: Canadian standard for low-voltage switchgear and controlgear
- CAN/CSA C22.2 No.60947-1: Canadian adoption of low-voltage switchgear general rules
- CAN/CSA C22.2 No.60947-4-1: Canadian standard for electromechanical contactors and motor starters
- CSA C22.2 No.60335-2-40 LZGH2A2L: CSA standard for heat pumps, air-conditioners and dehumidifiers
- IEC/EN 60947-1: Combined IEC/EN standard for low-voltage switchgear general rules
- IEC/EN 60947-4: Combined IEC/EN standard for contactors and motor starters
- IEC 60715: Dimensions of low-voltage switchgear and controlgear — DIN rail mounting
- IEC 60068-2-27: Environmental testing — mechanical shock
- EN 45555: General methods for the assessment of the ability to recover materials and energy from electrical and electronic products
- CSA C22.2 No.60335: CSA standard for household and similar electrical appliances
- CSA C22.2 No.60947: CSA standard for low-voltage switchgear and controlgear
- CSA: Canadian Standards Association certified
- REACH: Compliant with EU REACH regulation on chemical substances
- RoHS: Restriction of Hazardous Substances compliant
- WEEE: Compliant with Waste Electrical and Electronic Equipment Directive
Applications & Use Cases
- Motor starting and stopping in HVAC systems, pumps, and compressors
- Industrial automation and control panel integration
- Marine and offshore electrical distribution (DNV, LR, RINA, RMRS approved)
- Multi-voltage global installations requiring a single coil SKU (100–250 V AC/DC)
- Refrigeration and air-conditioning equipment switching (UL/CSA 60335-2-40)
- Machine tool and conveyor control applications
Technical Details
Catalog No
AF26-40-00-13
Number of Poles
4
Delivery Date (Days)
1 days
Model Number
AF26-40-00-13
Tariff Code
85364900
