ABB 1SBL237201R1100 AF26-40-00-11 4-Pole 45A 690V AC 11kW 24-60V AC/DC Coil Power Contactor AC Switching

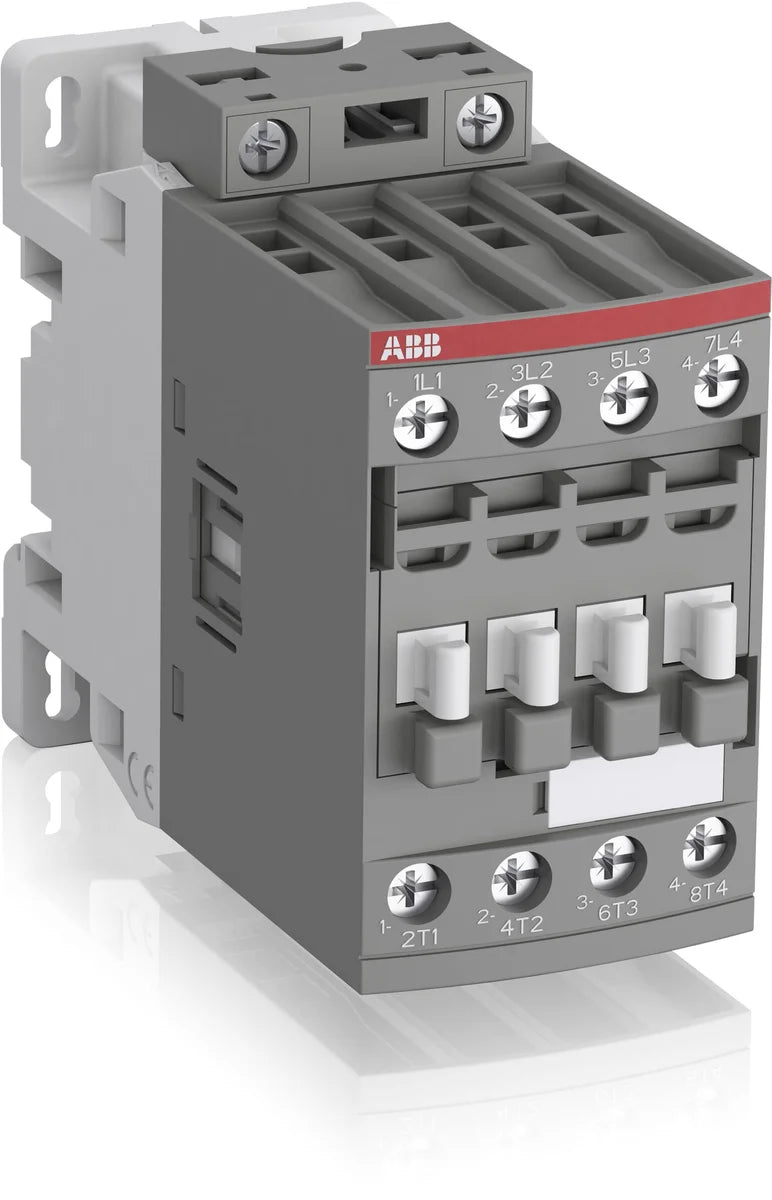

The ABB AF26-40-00-11 power contactor (SKU: 1SBL237201R1100) is a 4-pole, 45 A AC switching contactor rated at 690 V IEC / 600 V UL, delivering 11 kW at 400 V AC with a wide-range coil accepting 24–60 V AC (50/60 Hz) and 20–60 V DC. Designed for industrial motor control and load switching applications, the AF26-40-00-11 combines compact dimensions of 45 mm × 86 mm × 101 mm with a lightweight 0.36 kg profile, making it ideal for space-constrained control panel installations.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed — meets Great Britain market requirements
• CCC: China Compulsory Certification for the Chinese market
• CQC: China Quality Certification for voluntary product certification
• DNV: Det Norske Veritas — marine and offshore type approval
• KC: Korea Certification mark for the Korean market
• LR: Lloyd's Register — marine and industrial type approval
• RINA: Registro Italiano Navale — marine classification society approval
• RMRS: Russian Maritime Register of Shipping approval
• UL: Underwriters Laboratories — North American safety certification
• CSA: Canadian Standards Association — Canadian market certification
• IEC 60947-1: General rules for low-voltage switchgear and controlgear
• EN 60947-1: European harmonised standard — low-voltage switchgear general rules
• IEC 60947-4: Low-voltage switchgear — contactors and motor starters
• EN 60947-4: European harmonised standard — contactors and motor starters
• UL 60947-1: UL standard for low-voltage switchgear general rules
• UL 60947-4-1: UL standard for electromechanical contactors and motor starters
• UL 60335-2-40 LZGH2A2L: UL standard for household and similar electrical appliances — heat pumps
• CSA C22.2 No.60335-2-40 LZGH2A2L: CSA standard for heat pump appliances
• CAN/CSA C22.2 No.60947-1: Canadian standard for low-voltage switchgear general rules
• CAN/CSA C22.2 No.60947-4-1: Canadian standard for contactors and motor starters
• IEC/EN 60947-1: Harmonised IEC/EN standard for low-voltage switchgear general rules
• IEC/EN 60947-4: Harmonised IEC/EN standard for contactors and motor starters
• IEC 60068-2-27: Environmental testing — shock test standard
• EN 45555: General methods for assessing the ability of energy-related products to be repaired and upgraded
• EN 45555-94: Specific methods for energy-related products sustainability assessment
• CSA C22.2 No.60335: CSA standard for household and similar electrical appliances
• CSA C22.2 No.60947: CSA standard for low-voltage switchgear and controlgear
• REACH: EU regulation on registration, evaluation, authorisation, and restriction of chemicals
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• WEEE: Waste Electrical and Electronic Equipment Directive — compliant end-of-life recycling

Applications & Use Cases

• Three-phase and single-phase motor starting and stopping in industrial machinery
• HVAC compressor and heat pump control circuits (rated to UL 60335-2-40)
• Pump, fan, and conveyor control in building services and process automation
• Marine and offshore electrical switchboards (DNV, LR, RINA, RMRS approved)
• Control panel integration where compact DIN-rail mounting is required
• Wide-range coil design simplifies global OEM machine builds — single SKU covers 24–60 V AC/DC supplies
