ABB 1SBL177201R1300 AF16-40-00-13 4-Pole 30A 690V 7.5kW Coil 100-250V AC/DC Power Contactor AC Switching

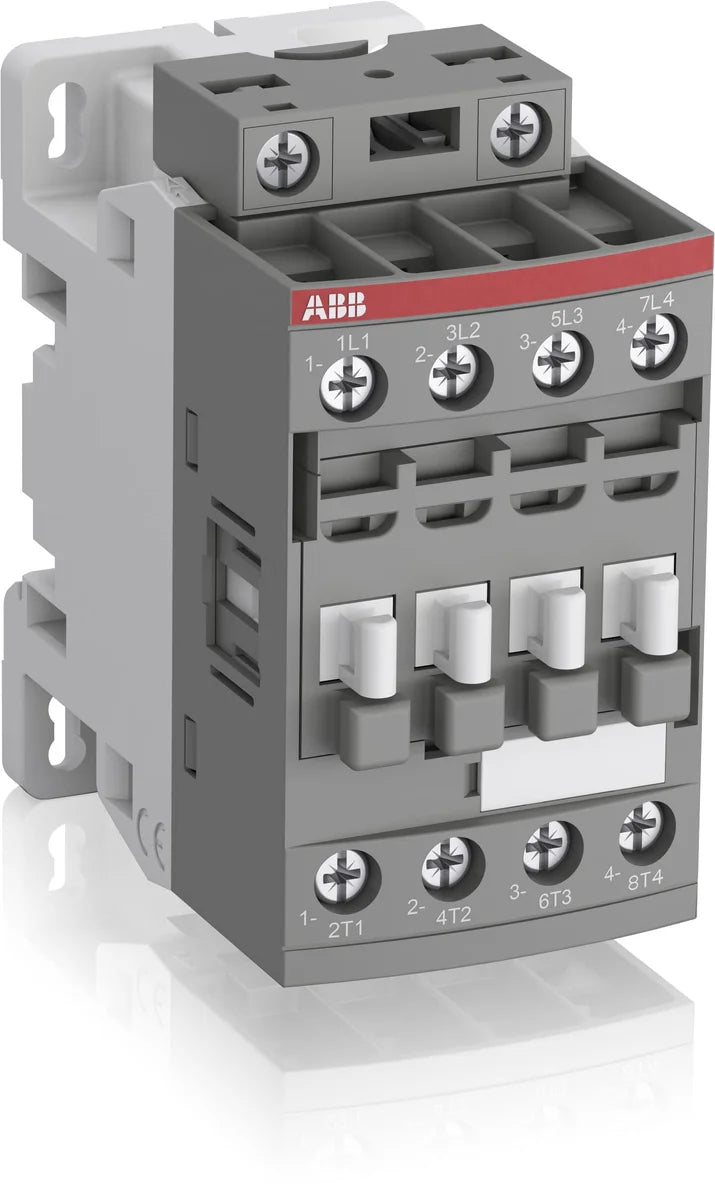

The ABB AF16-40-00-13 power contactor (SKU: 1SBL177201R1300) is a 4-pole, 30A AC switching contactor rated at up to 690V, delivering 7.5kW motor switching capability with a wide-range 100–250V AC/DC coil for versatile control circuit compatibility. Part of ABB's proven AF series, the AF16-40-00-13 is engineered for reliable performance in industrial automation and motor control applications, offering a compact 45 × 86 × 77 mm footprint at just 0.27 kg.

Technical Specifications

Certifications & Standards

• CE: European Conformity — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed — valid for Great Britain market
• CCC: China Compulsory Certification for electrical equipment
• CQC: China Quality Certification Centre voluntary certification
• ABS: American Bureau of Shipping marine type approval
• BV: Bureau Veritas marine and industrial certification
• CB: IEC System of Conformity Assessment Scheme (IECEE CB Scheme)
• UL: Underwriters Laboratories product safety certification
• CSA: Canadian Standards Association product certification
• UL 60335-2-40: Standard for household and similar electrical appliances safety (HVACR)
• CSA C22.2 No. 60335-2-40: Canadian equivalent for HVACR appliance safety
• IEC 60947-1 / EN 60947-1: Low-voltage switchgear and controlgear — general rules
• IEC 60947-4 / EN 60947-4: Low-voltage switchgear — contactors and motor starters
• UL 60335-2-40 LZGH2A2L: UL file reference for HVACR safety compliance
• UL 60947-1: UL standard for low-voltage switchgear general rules
• UL 60947-4-1: UL standard for electromechanical contactors and motor starters
• CSA C22.2 No. 60335-2-40 LZGH2A2L: CSA file reference for HVACR appliance safety
• CAN/CSA C22.2 No. 60947-1: Canadian standard for low-voltage switchgear general rules
• CAN/CSA C22.2 No. 60947-4-1: Canadian standard for contactors and motor starters
• IEC/EN 60947-1: Combined IEC and EN standard for low-voltage switchgear general rules
• IEC/EN 60947-4: Combined IEC and EN standard for contactors and motor starters
• IEC 60947-1 (IEC60947-1): Core IEC standard for low-voltage switchgear and controlgear
• IEC 60068-2-27: Environmental testing — shock test standard
• EN 45555: European standard for end-of-life treatment of electrical and electronic equipment
• EN 45555-92: Supplementary part of end-of-life treatment standard
• CSA C22.2 No. 60335: Canadian standard series for electrical appliance safety
• CSA C22.2 No. 60947: Canadian standard series for low-voltage switchgear
• REACH: EU regulation on registration, evaluation, authorisation of chemicals
• RoHS: Restriction of Hazardous Substances Directive — EU compliant
• WEEE: Waste Electrical and Electronic Equipment Directive compliance

Applications & Use Cases

• Motor switching and protection in industrial automation systems
• Control panel integration for pump, fan, and conveyor drive circuits
• HVACR compressor and fan motor control (UL 60335-2-40 rated)
• Marine and offshore electrical installations (ABS, BV approved)
• Multi-market deployments requiring CE, UKCA, UL, CSA, and CCC compliance
• Building services and commercial electrical installations
