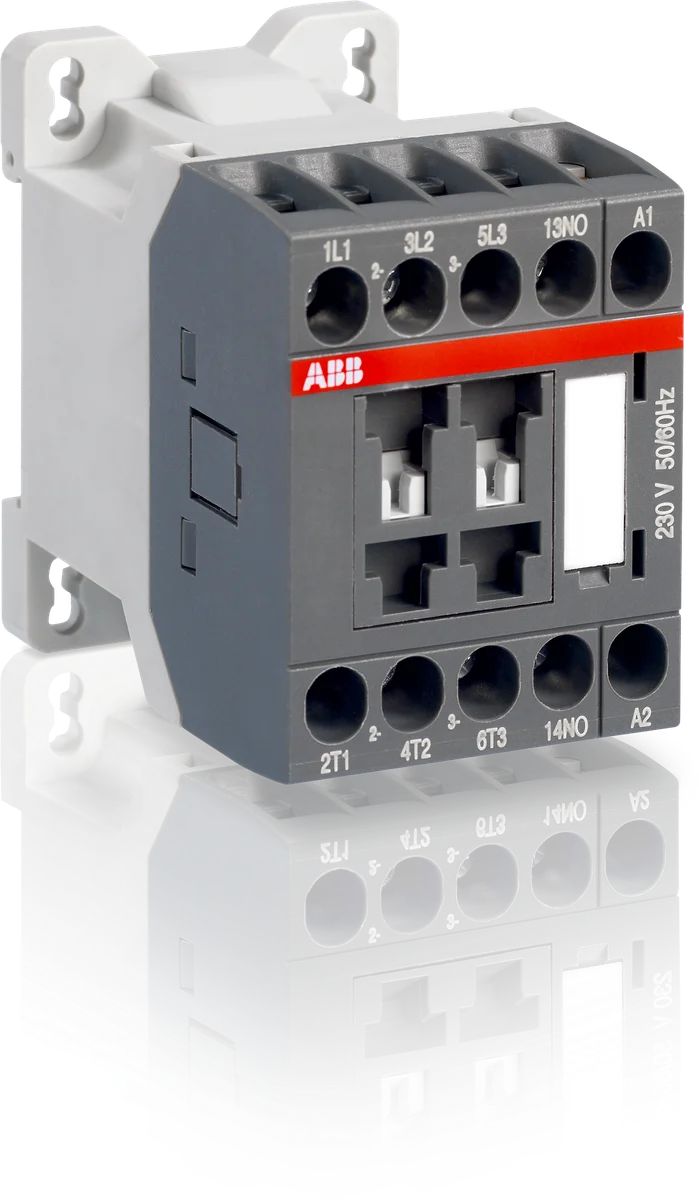

ABB 1SBL121001R2601 AS16-30-01-26 3-Pole 230V 690V AC Power Contactor AC Switching

The ABB AS16-30-01-26 power contactor (SKU: 1SBL121001R2601) is a 3-pole AC switching contactor rated for 690 V AC operation with a 230 V 50/60 Hz coil, designed for reliable motor and load control in industrial automation and control panel applications. Compact at just 78 × 80 × 48 mm and weighing only 0.22 kg, the AS16-30-01-26 delivers robust switching performance in a space-saving DIN-rail-mountable form factor. Part of ABB's AS16 series, this contactor meets a comprehensive set of international standards including IEC 60947-4-1 and UL 508, making it suitable for global installations.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed — compliant for the Great Britain market
• CCC: China Compulsory Certification — approved for the Chinese market
• CQC: China Quality Certification — additional Chinese quality mark
• UL: Underwriters Laboratories listed for North American safety compliance
• UL 508: Standard for Industrial Control Equipment
• CSA: Canadian Standards Association — certified for Canadian market
• CSA C22.2 No. 14: Industrial Control Equipment standard for Canada
• IEC 60947-1: General rules for low-voltage switchgear and controlgear
• EN 60947-1: European harmonised standard — general rules for low-voltage switchgear
• IEC 60947-4-1: Electromechanical contactors and motor starters
• EN 60947-4-1: European harmonised standard for contactors and motor starters
• IEC 60947-5-1: Control circuit devices and switching elements
• IEC 60947-5: Control circuit devices and switching elements (series)
• IEC 60947-4: Contactors and motor starters (series)
• IEC 60068-2-27: Environmental testing — shock
• REACH: Compliant with EU REACH regulation on chemical substances
• RoHS: Restriction of Hazardous Substances — compliant with EU RoHS directive
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment directive
