- ABB 1SBL111001R2601 AS12-30-01-26 3-Pole 690V AC 230V Coil Power Contactor AC Switching ABB 1SBL111001R2601 AS12-30-01-26 3-Pole 690V AC 230V Coil Power Contactor AC Switching
% $-14.94

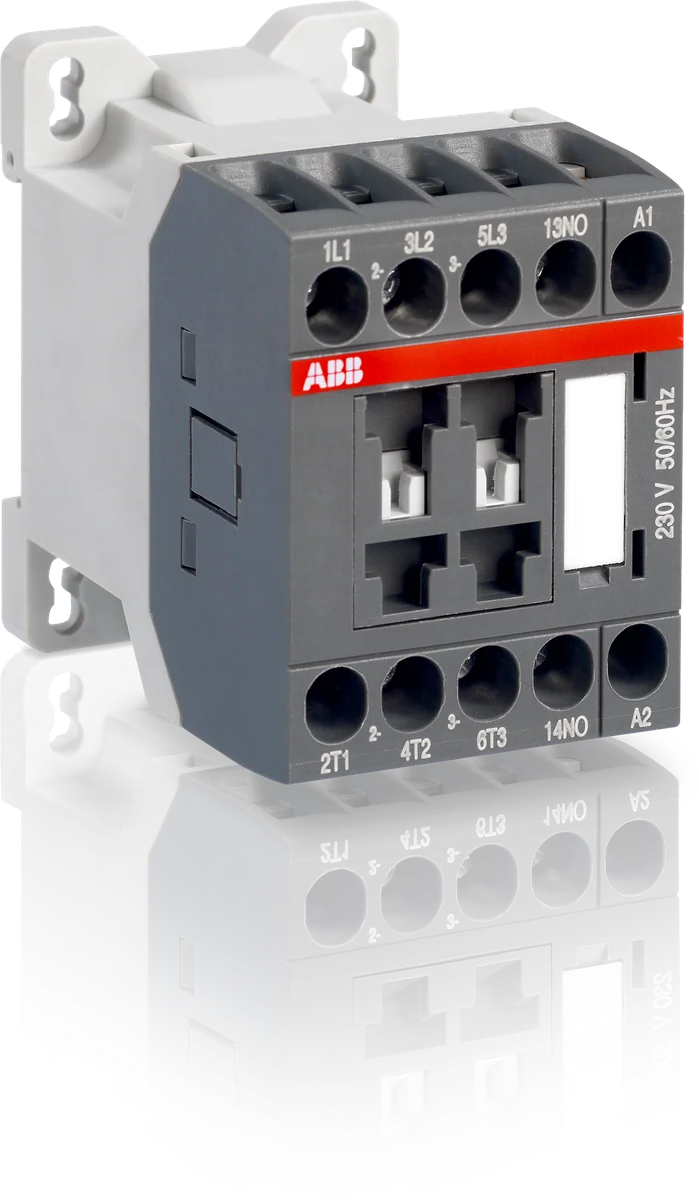

ABB 1SBL111001R2601 AS12-30-01-26 3-Pole 690V AC 230V Coil Power Contactor AC Switching
Brand:
ABB
Reference No:
1SBL111001R2601
Catalog No:
AS12-30-01-26
Series:
AS12
Tariff Code (GTIP):
85364900
Stock: 77
Delivery time: 1 business day(s)
Shipping Origin: Turkey EXW
$14.94
- Description
The ABB AS12-30-01-26 (SKU: 1SBL111001R2601) is a 3-pole power contactor engineered for AC switching applications in industrial control panels and automation systems. Rated up to 690 V AC or 220 V DC, this compact contactor from ABB's AS12 series measures just 78 × 80 × 48 mm and weighs 0.22 kg, making it ideal for space-constrained panel installations. The AS12-30-01-26 coil is rated at 230 V 50/60 Hz, ensuring compatibility with standard European and global supply voltages.
Technical Specifications
| Catalog Number | AS12-30-01-26 |
| SKU | 1SBL111001R2601 |
| Brand | ABB |
| Series | AS12 |
| EAN / Barcode | 3471523035263 |
| Product Type | Power contactor, AC switching |
| Number of Poles | 3 |
| Rated Voltage | 690 V AC / 220 V DC |
| Coil Voltage | 230 V 50/60 Hz |
| Dimensions (W × H × D) | 78 × 80 × 48 mm |
| Weight | 0.22 kg |
Certifications & Standards
- CE: Conformité Européenne — meets EU product safety, health, and environmental requirements
- UKCA: UK Conformity Assessed — required for Great Britain market access post-Brexit
- CCC: China Compulsory Certification — mandatory for products sold in the Chinese market
- CQC: China Quality Certification — voluntary certification affirming product quality standards
- UL: Underwriters Laboratories — North American safety certification for electrical components
- UL 508: Standard for Industrial Control Equipment — covers industrial controllers and contactors
- CSA C22.2 No. 14: Canadian Standards Association — industrial control equipment standard
- CSA: Canadian Standards Association general compliance
- IEC 60947-1: General rules for low-voltage switchgear and controlgear
- IEC 60947-4-1: Electromechanical contactors and motor starters
- IEC 60947-5-1: Control circuit devices and switching elements — electromechanical devices
- IEC 60947-5: Control circuit devices and switching elements
- IEC 60947-4: Contactors and motor starters
- EN 60947-1: European harmonised standard — general rules for low-voltage switchgear and controlgear
- IEC/EN 60947-1 / 60947-4-1: Combined compliance with both IEC and EN harmonised switchgear standards
- IEC 60068-2: Environmental testing — covers mechanical and climatic robustness
- REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — EU chemical compliance
- RoHS: Restriction of Hazardous Substances — limits use of specific hazardous materials in electrical equipment
- WEEE: Waste Electrical and Electronic Equipment Directive — responsible end-of-life disposal compliance
Applications & Use Cases
- Motor switching and control in industrial machinery and production lines
- Control panel assemblies requiring compact, DIN-rail-compatible switching devices
- Building automation and HVAC system contactors
- Pump and conveyor control in process industries
- General AC load switching in industrial automation and control systems
Technical Details
Catalog No
AS12-30-01-26
Number of Poles
3
Delivery Date (Days)
1 days
Model Number
AS12-30-01-26
Tariff Code
85364900
