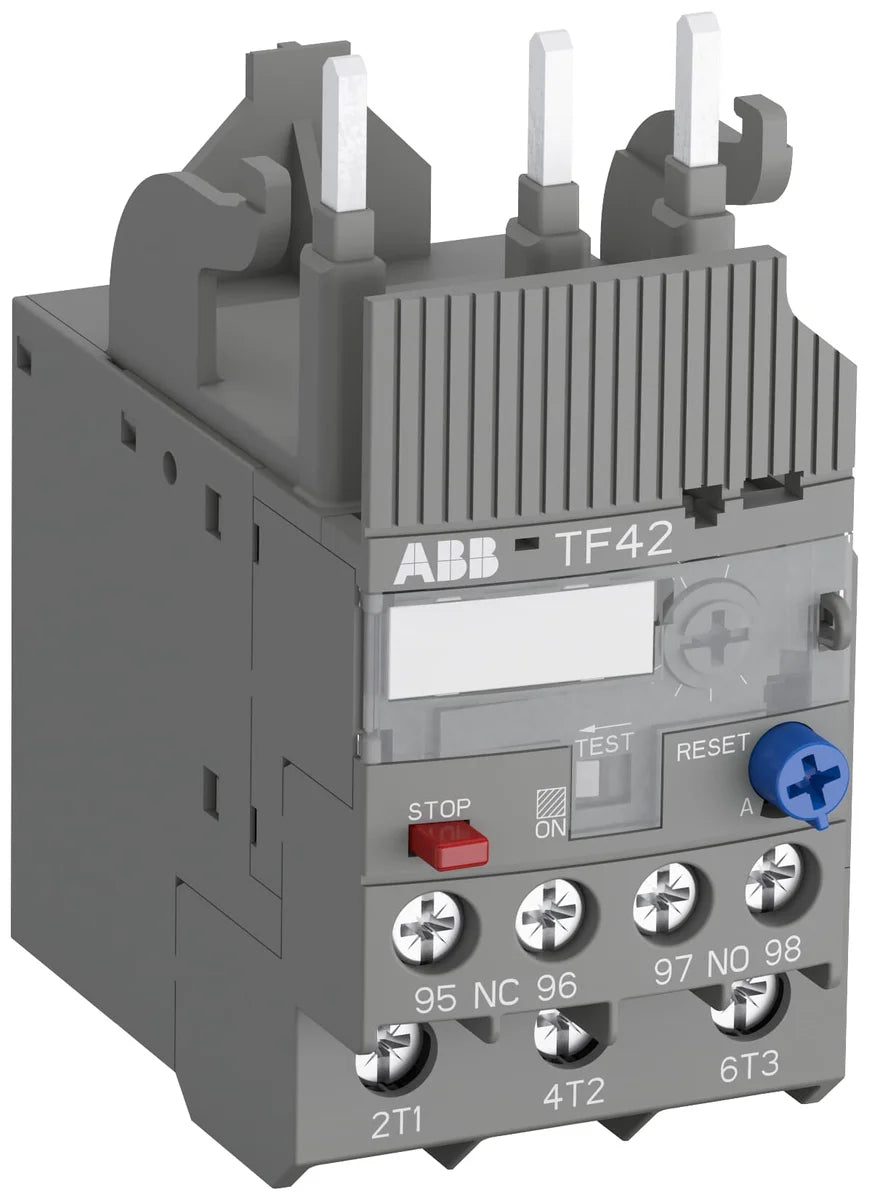

ABB 1SAZ721201R1025 TF42-1.3 1.0–1.3A 3P Thermal Overload Relay
Brand:
ABB
Reference No:
1SAZ721201R1025
Catalog No:
TF42-1.3
Series:
TF42
Tariff Code (GTIP):
85364900
Stock: 201
Delivery time: 1 business day(s)
Shipping Origin: Turkey EXW
$22.14
- Description
The ABB TF42-1.3 thermal overload relay (SKU: 1SAZ721201R1025) is a 3-pole motor protection device with an adjustable current range of 1.0 to 1.3A, designed for reliable overload and phase-failure protection in industrial control panels. Part of ABB's TF42 series, this compact relay measures 45mm × 88.3mm × 70.5mm and weighs just 0.13kg, making it ideal for space-constrained switchgear installations. The TF42-1.3 carries a comprehensive suite of global certifications including ATEX, CE, UL, and IECEx, ensuring compliance across international markets.
Technical Specifications
| Catalog Number | TF42-1.3 |
| SKU | 1SAZ721201R1025 |
| Brand | ABB |
| Series | TF42 |
| Product Type | Thermal Overload Relay |
| Rated Current Range | 1.0 … 1.3 A |
| Poles | 3P |
| Dimensions (W × H × D) | 45 mm × 88.3 mm × 70.5 mm |
| Weight | 0.13 kg |
| EAN / Barcode | 4013614398056 |
Certifications & Standards
- ATEX: Approved for use in explosive atmospheres
- IEC/EN 60947-1: Low-voltage switchgear and controlgear — general rules
- IEC/EN 60947-4: Contactors and motor-starters
- IEC/EN 60947-5: Control circuit devices and switching elements
- IEC 60335-2: Safety of household and similar electrical appliances
- IEC 60068-2: Environmental testing
- EN 60947-1: European harmonised standard — low-voltage switchgear general rules
- EN 60947-4: European harmonised standard — contactors and motor-starters
- EN 60947-5: European harmonised standard — control circuit devices
- EN 45555: General methods for the assessment of the ability to recover resources from electrical and electronic equipment
- UL 2799: UL standard for electrical systems performance
- CSA: Canadian Standards Association certified
- RoHS: Restriction of Hazardous Substances compliant
- REACH: EU chemical safety regulation compliant
- WEEE: Waste Electrical and Electronic Equipment directive compliant
- CCC: China Compulsory Certification
- CE: European conformity marking
- UKCA: UK Conformity Assessed marking
- EAC: Eurasian Conformity marking
- IECEx: International standard for equipment used in explosive atmospheres
Applications & Use Cases
- Motor overload protection in industrial automation and control panels
- Phase-failure detection for 3-phase motor circuits in the 1.0–1.3A range
- Hazardous area installations requiring ATEX / IECEx certified protection devices
- OEM machinery panels where compact footprint and low weight are critical
- Global projects demanding multi-standard compliance (CE, UKCA, EAC, CCC, UL, CSA)
Technical Details
Catalog No
TF42-1.3
Number of Poles
3P
Delivery Date (Days)
1 days
Model Number
TF42-1.3
Tariff Code
85364900
