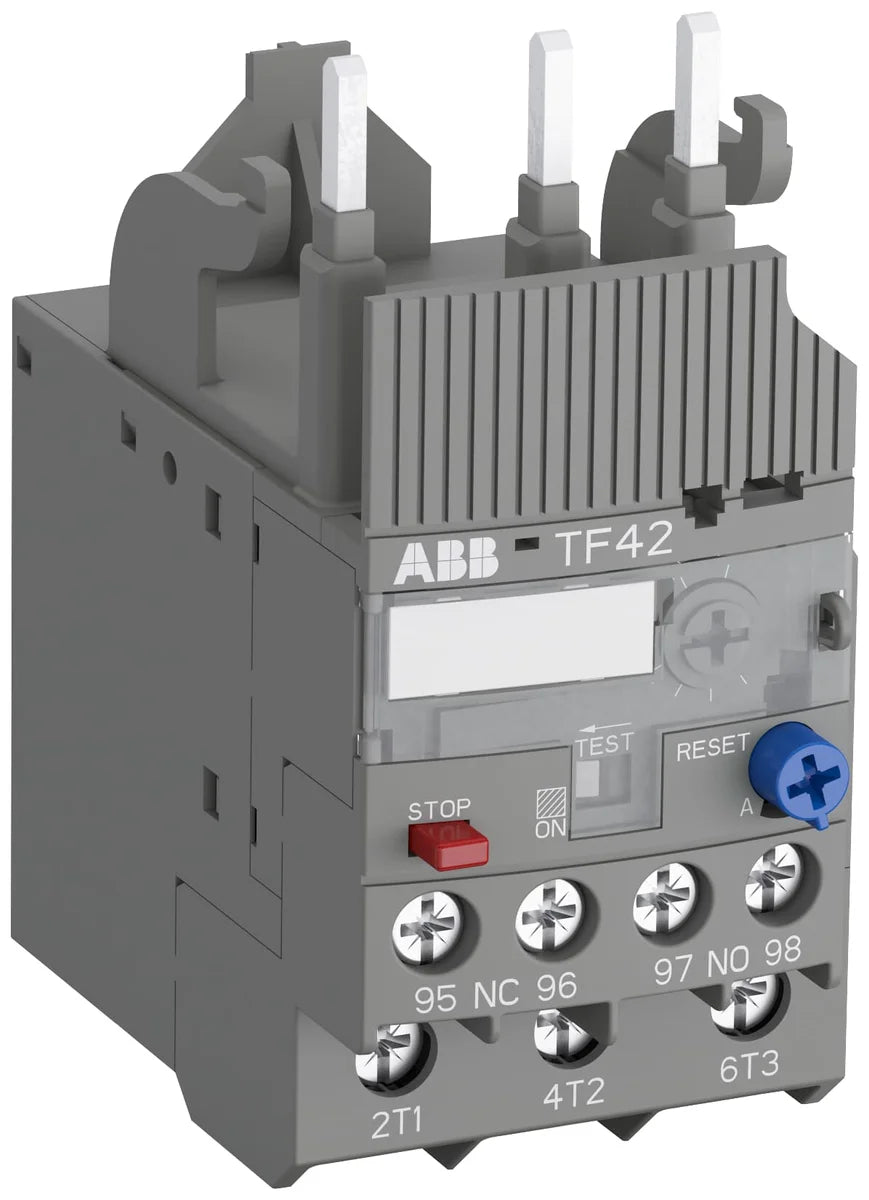

ABB 1SAZ721201R1005 TF42-0.13 Thermal Overload Relay 0.10-0.13A 3P

The ABB TF42-0.13 thermal overload relay (SKU: 1SAZ721201R1005) delivers reliable motor protection with a precise current adjustment range of 0.10 to 0.13 A across 3 poles. Designed for industrial automation and control panel applications, this compact relay from ABB's TF42 Series safeguards motors against sustained overcurrent conditions, ensuring uptime and equipment longevity in demanding environments.

Technical Specifications

Certifications & Standards

• ATEX: Certified for use in explosive atmospheres
• UL: Underwriters Laboratories listed for North American markets
• LR: Lloyd's Register type approval
• RINA: Italian Naval Register certification
• RMRS: Russian Maritime Register of Shipping approval
• IEC 60947-1: Low-voltage switchgear and controlgear — General rules
• EN 60947-1: European harmonized standard for low-voltage switchgear — General rules
• IEC/EN 60947: Low-voltage switchgear and controlgear family standard
• IEC 60068-2: Environmental testing standard for electronic components
• EN 60947-4: Contactors and motor-starters — electromechanical contactors and motor-starters
• EN 60947-5: Control circuit devices and switching elements
• EN 45555: General methods for the assessment of the ability of electrical and electronic products to be repaired and reused
• UL 2799: Standard for Electrical Systems for Use in All-Electric Vehicles
• CSA: Canadian Standards Association approval
• RoHS: Restriction of Hazardous Substances compliant
• REACH: EU REACH regulation compliant
• WEEE: Waste Electrical and Electronic Equipment directive compliant
• CCC: China Compulsory Certification
• CE: European Conformity marking
• UKCA: UK Conformity Assessed marking for Great Britain market
• EAC: Eurasian Conformity mark for Customs Union markets
• IECEx: International certification scheme for equipment used in explosive atmospheres

Applications & Use Cases

The TF42-0.13 is engineered for protecting small three-phase motors and loads in industrial automation systems, control panels, and motor control centers (MCCs). Its ultra-low current range of 0.10–0.13 A makes it particularly suitable for fractional horsepower motors, fan drives, pump controllers, and conveyor systems where precise overcurrent protection is critical. As part of ABB's TF42 Series, the TF42-0.13 is designed to pair directly with compatible ABB contactors, streamlining panel assembly and reducing wiring complexity in demanding electrical installations.
