Schneider Electric LRD01 TeSys Deca Thermal Overload Relay 0.1-0.16 A Class 10A 1NO+1NC Relay

% $-33.19

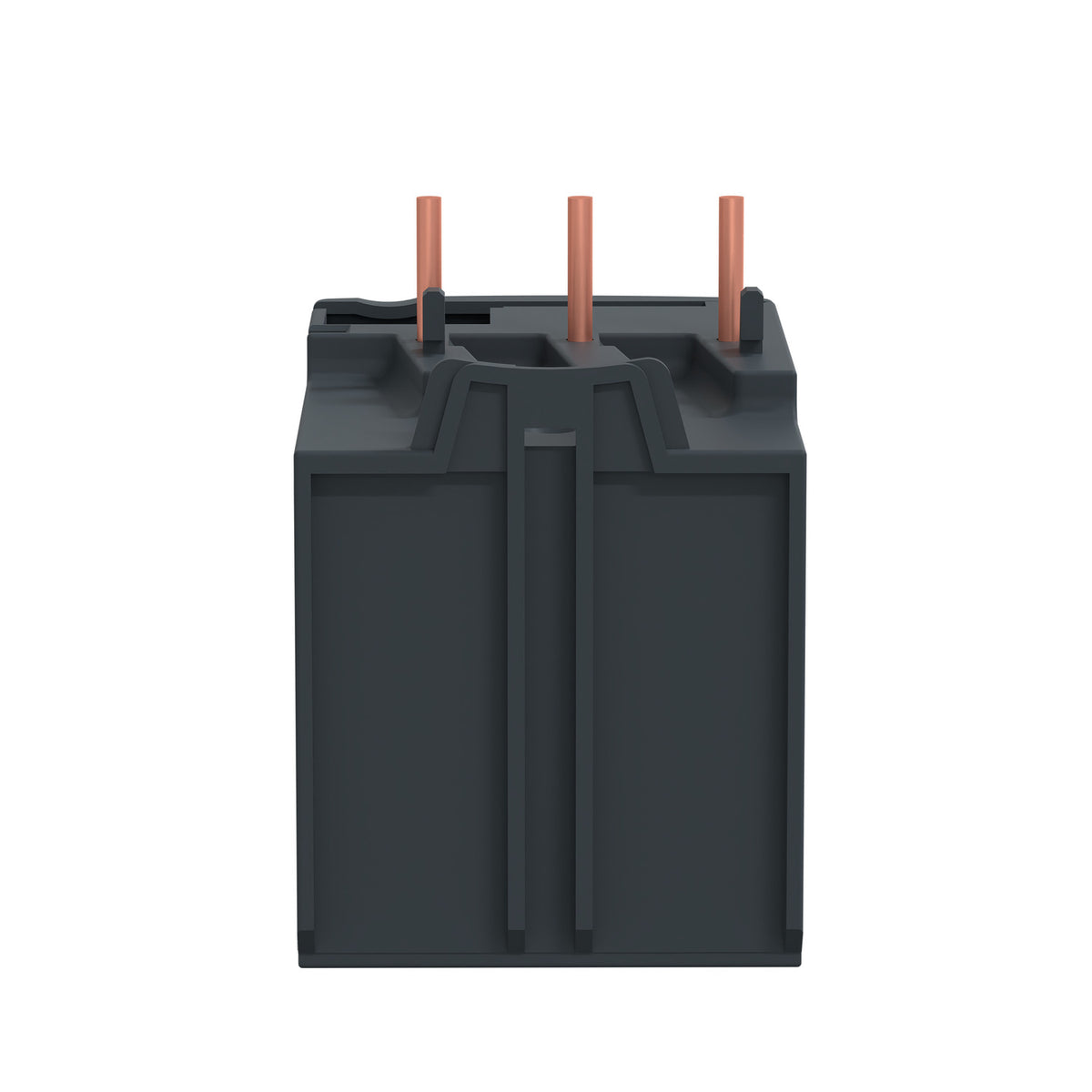

Schneider Electric LRD01 TeSys Deca thermal overload relay 0.1-0.16A
Schneider Electric LRD01 TeSys Deca thermal overload relay 0.1-0.16A

Schneider Electric LRD01 TeSys Deca Thermal Overload Relay 0.1-0.16 A Class 10A 1NO+1NC Relay

Brand: Schneider Electric
Reference No: LRD01
Tariff Code (HS): 85364900
Rated Current: 0.16 A
Rated Voltage: 690 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$33.19

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LRD01 is a TeSys LRD bimetallic thermal overload relay that mounts directly under a TeSys D contactor, with a 0.1-0.16 A adjustment range, a class 10A trip curve, and phase-unbalance (differential) protection for motors under 0.06 kW at 400 V.

Technical Specifications

Reference LRD01
Brand Schneider Electric
Range TeSys / TeSys Deca
Product Name TeSys LRD
Device Short Name LRD
Product Type Differential thermal overload relay
Product Compatibility LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38
Thermal Overload Class Class 10A (IEC 60947-4-1)
Thermal Protection Adjustment Range 0.1…0.16 A
Tripping Threshold 1.14 ± 0.06 Ir (IEC 60947-4-1)
Auxiliary Contact Composition 1 NO + 1 NC
[Ue] Rated Operational Voltage (Power Circuit) 690 V AC
[Ith] Conventional Free Air Thermal Current (Signalling) 5 A
[Uimp] Rated Impulse Withstand Voltage 6 kV
Phase Failure Sensitivity Trip at 130% of Ir with one phase at 0
Temperature Compensation -20…60 °C
Mounting Support Plate, rail with accessories, or under contactor
IP Degree of Protection IP20 (IEC 60529)
Ambient Air Temperature for Operation -20…60 °C (without derating, IEC 60947-4-1)
Net Weight 0.124 kg

Certifications & Standards

  • IEC
  • UL
  • CSA
  • CCC
  • EAC
  • BV
  • RINA
  • DNV-GL
  • UKCA
  • IEC 60947-4-1
  • IEC 60947-5-1

Selection Notes

Set the 0.1-0.16 A dial to the motor's actual full-load current for loads under 0.06 kW at 400 V; the differential bimetallic element trips on a single-phasing fault without needing the electronic LR9D's dipswitch-selectable class, so pick this relay when a fixed class 10A curve is sufficient and an electronic relay's wider class range is not needed. Temperature compensation keeps the trip point stable across the -20 to 60 °C ambient range, avoiding false trips in hot panels.

Technical Details

Short Description
TeSys LRD bimetallic thermal overload relay, 0.1-0.16 A, class 10A, phase-unbalance protection.
Rated Current (Ampere)
0.16 A
Rated Voltage (VAC)
690 V AC
Mounting Type
Under contactor, plate or rail
Protection Type
IP20
Delivery Date (Days)
30 days
Model Number
LRD
Tariff Code
85364900
