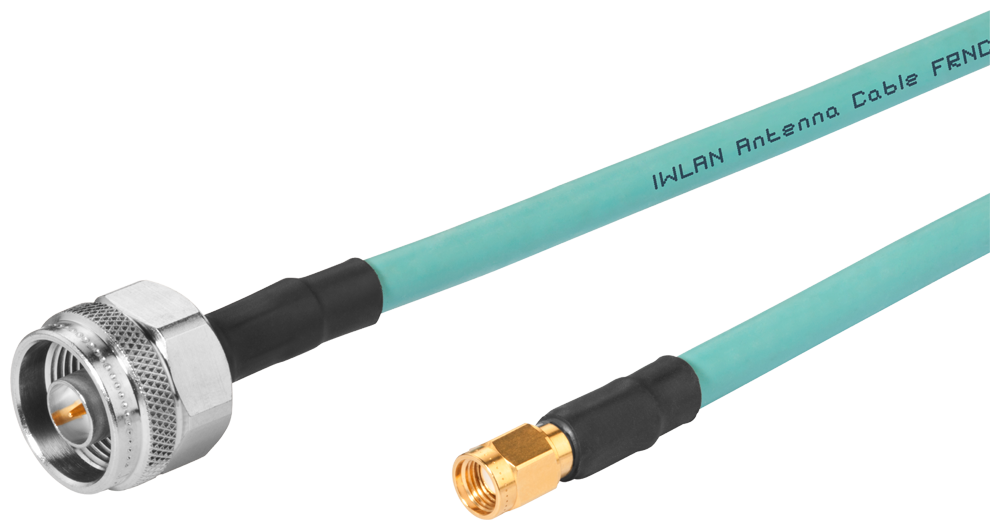

Siemens 6XV1875-5CN10 SIMATIC NET Antenna Cable N-Connect/R-SMA m/m 10m IWLAN Antenna Cable

The Siemens 6XV1875-5CN10 is a 10 m antenna connection cable with N-Connect/R-SMA male/male plugs, a flexible 50 Ω cable for connecting an antenna to an access point or client radio. It covers 0 to 6000 MHz, has a typical 0.53 dB/m attenuation at 2.4 GHz, and carries IP68 protection when mated.

Technical Specifications

Certifications & Standards

• EAC
• RoHS

Selection Notes

The 10 m length reaches an externally mounted antenna from an indoor access point or client radio without an in-line splice, terminated N-Connect/R-SMA for direct connection to an R-SMA antenna port on the AP or client. Over the full 10 m, typical attenuation of 0.53 dB/m at 2.4 GHz adds up to roughly 5.3 dB of loss, so this run length should be weighed against antenna gain when planning the link budget. Confirm the access point or client radio's antenna connector type before ordering, since this cable's R-SMA end will not mate with an N-Connect port.

Applications

Used to connect access points or client radios with an R-SMA antenna port to an externally mounted, N-Connect terminated antenna or RCoax feed line in IWLAN installations. The IP68-when-plugged rating and -40 to +80°C operating range suit outdoor and harsh-environment antenna runs on mobile equipment, cranes, and AGVs.
