- Part number
- 6GT2398-1DA10
- Model no
- antenna ANT 18 stainless steel, with antenna cable SIMATIC RF200/RF300 antenna ANT 18 stainless steel; -25...+70 °C, IP65, thread M18x1, length 40 mm; with trailing antenna wire, both ends plug-in PUR, UL 758, length 3 m .

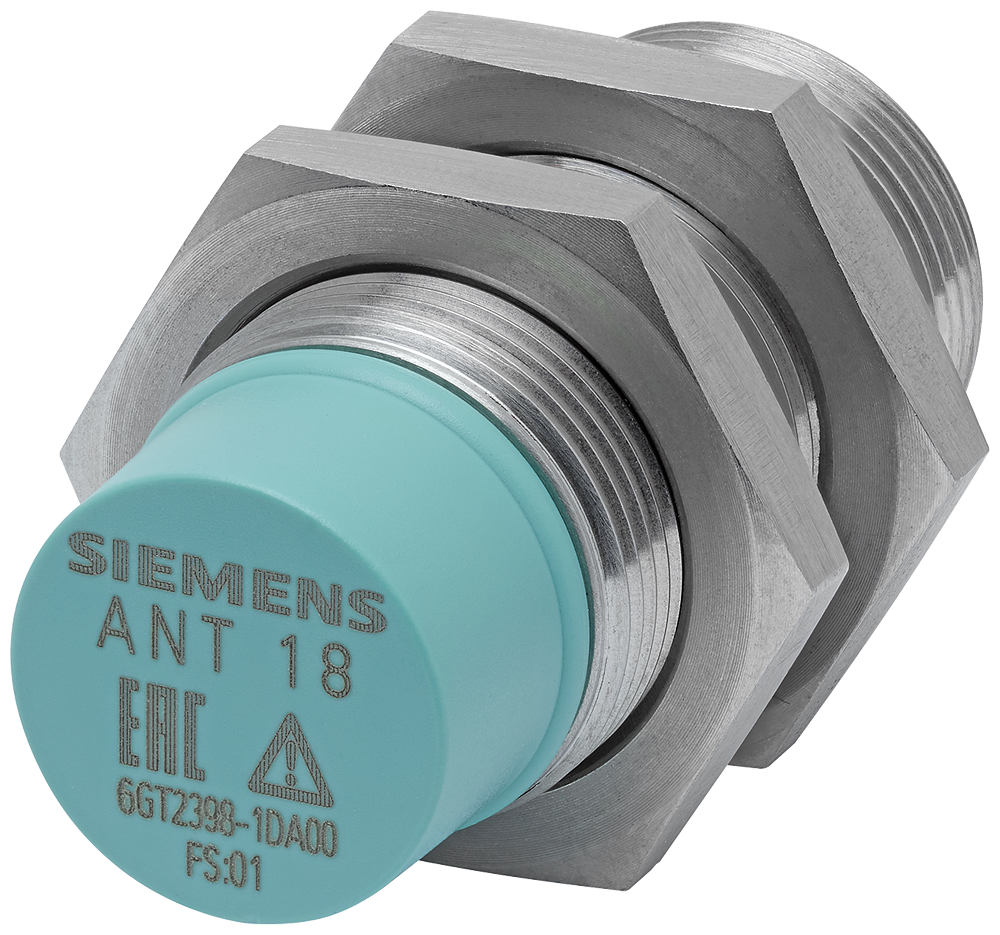

Siemens 6GT2398-1DA10 SIMATIC RF200 Antenna ANT 18 Stainless M18x1 IP67 RFID Antenna
ANT 18 stainless steel antenna, M18x1 thread, for RF250R/RF350R, 13.56MHz, IP67.
Description
About the antenna ANT 18 stainless steel, with antenna cable SIMATIC RF200/RF300 antenna ANT 18 stainless steel; -25...+70 °C, IP65, thread M18x1, length 40 mm; with trailing antenna wire, both ends plug-in PUR, UL 758, length 3 m .
About the antenna ANT 18 stainless steel, with antenna cable SIMATIC RF200/RF300 antenna ANT 18 stainless steel; -25...+70 °C, IP65, thread M18x1, length 40 mm; with trailing antenna wire, both ends plug-in PUR, UL 758, length 3 m .
The Siemens 6GT2398-1DA10 Antenna ANT 18 is a stainless steel M18x1 threaded antenna, 40 mm long, for RF250R, RF350R, and RF350M readers. It ships with a 3 m trailing PUR cable, operates at 13.56 MHz, carries an IP67 rating, withstands 500 m/s2 shock acceleration, and is rated -25 to +70C.
Certifications & Standards
- IECEx
Selection Notes
The M18x1 threaded body drops into a standard sensor-style mounting hole, which suits retrofit into an existing M18 port without a custom bracket, unlike the screw-nut ANT 1 and ANT 8 designs. Choose the larger M30-thread variant instead when the application needs a bigger read aperture.
Specification
Full specification
General 3
| product type designation | antenna ANT 18 stainless steel, with antenna cable SIMATIC RF200/RF300 antenna ANT 18 stainless steel; -25...+70 °C, IP65, thread M18x1, length 40 mm; with trailing antenna wire, both ends plug-in PUR, UL 758, length 3 m . |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | RF250R / RF350R / RF350M |
Radio frequencies 1
| transmission frequency / rated value | 13.56 MHz |
|---|
Electrical data 2
| type of electrical connection / of the antenna | M8, 4-pole (at supplied cable) |
|---|---|
| design of plug-in connection | male |
Show all 41 specifications ↓ Show less ↑35 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Standards, specifications, approvals, Accessories, Logistics.
Identification 10
| Part number | 6GT2398-1DA10 |
|---|---|
| Type designation | antenna ANT 18 stainless steel, with antenna cable SIMATIC RF200/RF300 antenna ANT 18 stainless steel; -25...+70 °C, IP65, thread M18x1, length 40 mm; with trailing antenna wire, both ends plug-in PUR, UL 758, length 3 m . |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4034106026066 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 4
| material | Stainless steel V2A |
|---|---|
| color | silver |
| tightening torque / of the screw for securing the equipment / maximum | 3 N·m |
| mounting distance: relating to metal surfaces / recommended / minimum | 0 m |
Ambient conditions 6
| ambient temperature: during operation | -25 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| protection class IP | IP67 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 4
| depth | 40 mm |
|---|---|
| diameter | 18 mm |
| fastening method | 2 x stainless steel nuts M18 x 1 |
| wire length / of antenna cable | 3 m |
Standards, specifications, approvals 3
| certificate of suitability | CE, cULus |
|---|---|
| certificate of suitability: IECEx | Yes |
| certificate of suitability: for IECEx / as marking | the ATEX approval of the connected reader applies |
Accessories 1
| accessories | Included: 6GT2391-0AH30 (antenna cable) |
|---|
Logistics 7
| Net weight | 0.04 kg |
|---|---|
| Package dimensions | 86 × 54 × 1 mm |
| Country of origin | DE |
| Shipping weight | 0.54 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2398-1DA10
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IECEx
Quick answers
Questions about the antenna ANT 18 stainless steel, with antenna cable SIMATIC RF200/RF300 antenna ANT 18 stainless steel; -25...+70 °C, IP65, thread M18x1, length 40 mm; with trailing antenna wire, both ends plug-in PUR, UL 758, length 3 m .
What is the HS code of antenna ANT 18 stainless steel, with antenna cable SIMATIC RF200/RF300 antenna ANT 18 stainless steel; -25...+70 °C, IP65, thread M18x1, length 40 mm; with trailing antenna wire, both ends plug-in PUR, UL 758, length 3 m . for customs?
The tariff (HS) code on file for antenna ANT 18 stainless steel, with antenna cable SIMATIC RF200/RF300 antenna ANT 18 stainless steel; -25...+70 °C, IP65, thread M18x1, length 40 mm; with trailing antenna wire, both ends plug-in PUR, UL 758, length 3 m . is 85291069.
What is the EAN of antenna ANT 18 stainless steel, with antenna cable SIMATIC RF200/RF300 antenna ANT 18 stainless steel; -25...+70 °C, IP65, thread M18x1, length 40 mm; with trailing antenna wire, both ends plug-in PUR, UL 758, length 3 m .?
The EAN (GTIN) of antenna ANT 18 stainless steel, with antenna cable SIMATIC RF200/RF300 antenna ANT 18 stainless steel; -25...+70 °C, IP65, thread M18x1, length 40 mm; with trailing antenna wire, both ends plug-in PUR, UL 758, length 3 m . is 4034106026066.
Where does antenna ANT 18 stainless steel, with antenna cable SIMATIC RF200/RF300 antenna ANT 18 stainless steel; -25...+70 °C, IP65, thread M18x1, length 40 mm; with trailing antenna wire, both ends plug-in PUR, UL 758, length 3 m . ship from, and how fast?
antenna ANT 18 stainless steel, with antenna cable SIMATIC RF200/RF300 antenna ANT 18 stainless steel; -25...+70 °C, IP65, thread M18x1, length 40 mm; with trailing antenna wire, both ends plug-in PUR, UL 758, length 3 m . ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
