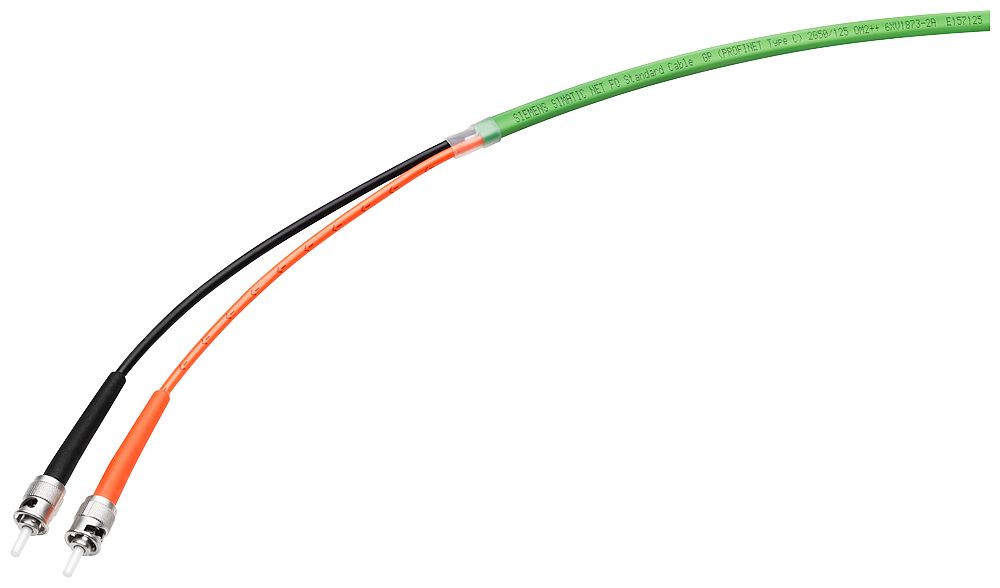

SIMATIC NETSiemens 6XV1873-3AN80 SIMATIC NET FO Standard Cable GP 50/125 80m 4xBFOC Industrial Network Cable
FO Standard Cable GP, 80 m, 50/125 µm multimode, preassembled with 4x BFOC connectors
Description
About the FO Standard Cable GP
About the FO Standard Cable GP
The Siemens 6XV1873-3AN80 is an 80 m FO Standard Cable GP, a 50/125 µm multimode glass fiber-optic cable preassembled with four BFOC connectors for indoor and outdoor installation. It has 2 fiber-optic cores, 2.7 dB/km maximum attenuation at 850 nm, IP20 protection, and UL approval for permanent Industrial Ethernet fiber runs.
Certifications & Standards
- RoHS
Selection Notes
The four-BFOC preassembled termination fits directly into ports accepting BFOC/ST-style fiber connectors, so no field splicing or connector kit is needed for this reel. At 850 nm the 600 GHz·m bandwidth-length product and 2.7 dB/km attenuation support 100BaseFX Industrial Ethernet runs to 5000 m and 1000BaseSX runs to 750 m, well beyond this cable's 80 m length, leaving margin for patch-panel and connector losses. Choose a different pre-terminated length in the same cable range when the run distance differs from 80 m, since field-terminating glass fiber is not a FastConnect operation.
Applications
Used to link Industrial Ethernet switches, PLCs, and remote I/O over 100BaseFX or 1000BaseSX fiber-optic backbones where electrical isolation or distances beyond copper limits are needed. The -25 to +80°C operating range and IEC 60332-1-2 / 60332-3-22 flame-resistant sheath suit indoor cable trays and outdoor conduit runs alike.
Specification
Full specification
General 7
| product type designation | FO Standard Cable GP |
|---|---|
| product description | Glass fiber-optic cable, preferred length, preassembled FO Standard Cable 50/125, pre-assembled with 2x2 BFOC connectors, insertion aid, length 80 m. |
| product brand name | SIMATIC NET |
| suitability for use | Cable for installation indoors and outdoors, UL approval |
| version of the assembled FO cable | Assembled with four BFOC connectors |
| cable designation | AT-W(ZN)YY 2x1 G 50/125 OM2++ |
| wire length | 80 m |
Optical data 4
| attenuation factor per length: at 850 nm / maximum | 2.7 dB/km |
|---|---|
| attenuation factor per length: at 1300 nm / maximum | 0.7 dB/km |
| bandwidth length product: at 850 nm | 600 GHz·m |
| bandwidth length product: at 1300 nm | 1200 GHz·m |
Mechanical data 25
| number of fibers / per FOC core | 1 |
|---|---|
| number of FO cores / per FOC cable | 2 |
| version of the FO conductor fiber | Multi-mode gradient fiber 50/125 µm, OM 2 |
| design of the FOC core | Hollow core, filled, diameter 1400 µm |
| design of the fiber-optic cable | segmentable |
| outer diameter: of the optical fibers | 50 µm |
| outer diameter: of the optical fiber sheath | 125 µm |
| outer diameter: of the FOC core sheath | 2.9 mm |
| symmetrical deviation / of the outer diameter of the FOC core sheath | 0.1 mm |
| width / of cable sheath | 7.4 mm |
| thickness / of cable sheath | 4.5 mm |
| material: of the fiber-optic cable core | Quartz glass |
| material: of the optical fiber sheath | Quartz glass |
| material: of the FOC core sheath | PVC |
| material: of the fiber-optic cable sheath | PVC |
| material: of the strain relief | Aramid fibers |
| color: of the FOC core sheath | orange/black |
| color: of cable sheath | green |
| bending radius: with single bend / minimum permissible | 45 mm |
| bending radius: with multiple bends / minimum permissible | 65 mm |
| tensile load: during installation / short-term | 1200 N |
| tensile load: during operation / maximum | 500 N |
| short-term shear force per length | 600 N/cm |
| continuous shear force per length | 400 N/cm |
| weight per length | 40 kg/km |
Show all 71 specifications ↓ Show less ↑35 more values in Identification, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6XV1873-3AN80 |
|---|---|
| Type designation | FO Standard Cable GP |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169850551 |
| ETIM class | EC002607 |
| eCl@ss | 27061003 |
Ambient conditions 9
| ambient temperature: during operation | -25 ... +80 °C |
|---|---|
| ambient temperature: during storage | -25 ... +80 °C |
| ambient temperature: during transport | -25 ... +80 °C |
| ambient temperature: during installation | -5 ... +50 °C |
| fire behavior | flame-resistant acc. to IEC 60332-1-2 and IEC 60332-3-22 (Cat. A) |
| chemical resistance: to mineral oil | conditional resistance |
| chemical resistance: to grease | conditional resistance |
| radiological resistance / to UV radiation | resistant |
| protection class IP | IP20 |
Product features, product functions, product components / general 7
| product feature: halogen-free | No |
|---|---|
| product feature: silicon-free | Yes |
| product component / rodent protection | No |
| wire length: for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum | 5000 m |
| wire length: for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum | 750 m |
| wire length: for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum | 2000 m |
| wire length: for glass FOC / with PROFIBUS / maximum | 3000 m |
Standards, specifications, approvals 2
| certificate of suitability: UL approval | Yes; c(UL)us OFN FT4 |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
Logistics 7
| Net weight | 3.2 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | CN |
| Shipping weight | 3.7 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6XV1873-3AN80
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- UL
- RoHS conformity
Quick answers
Questions about the FO Standard Cable GP
What is the HS code of FO Standard Cable GP for customs?
The tariff (HS) code on file for FO Standard Cable GP is 85447000.
What is the EAN of FO Standard Cable GP?
The EAN (GTIN) of FO Standard Cable GP is 4019169850551.
Where does FO Standard Cable GP ship from, and how fast?
FO Standard Cable GP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
