Siemens 6XV1870-3QH60 SIMATIC NET IE TP Cord RJ45/RJ45 Cat6A 6m PoE++ Industrial Network Cable

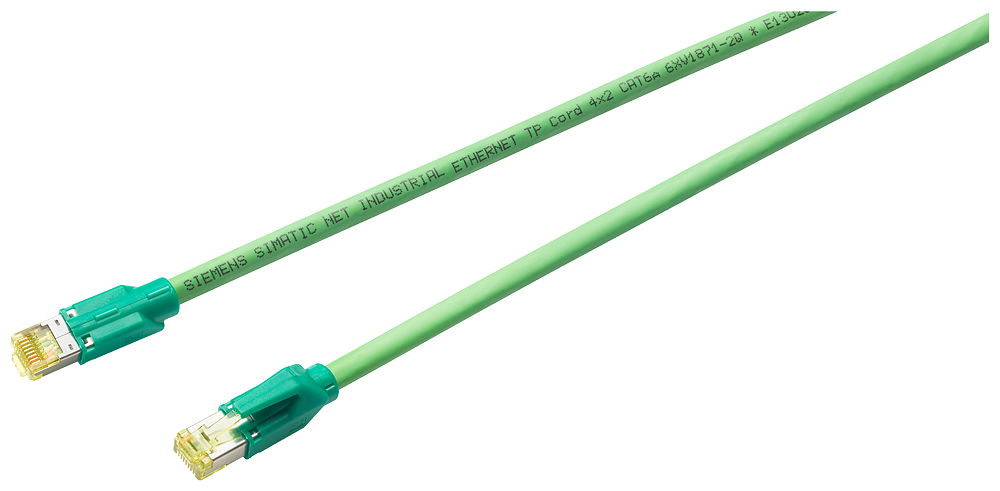

The Siemens 6XV1870-3QH60 is a preassembled SIMATIC NET Industrial Ethernet TP Cord, RJ45 to RJ45, Cat6A S/FTP shielded patch cable, 6 m long, rated for PoE, PoE+, and PoE++ power delivery at 10/100/1000/10000 Mbit/s. Attenuation at 100 MHz is 0.28 dB/m and the outer sheath is FRNC, halogen-free and flame-resistant per IEC 60332-1-2.

Technical Specifications

Certifications & Standards

• EAC
• UL
• RoHS

Selection Notes

The 6 m length and Cat6A S/FTP double shield put this cord ahead of unshielded patch cables for cabinet-to-cabinet or cabinet-to-device runs near VFDs or contactors, where the 70 dB minimum coupling loss limits coupled EMI noise. PoE++ support means the same cord carries power and data together to remote switches, cameras, or panel PCs, avoiding a separate DC run for the device drop.

Applications

Patch connection between SIMATIC NET switches, PLCs, and PoE-powered devices (cameras, access points, remote I/O) within a control cabinet or between adjacent cabinets on a machine.
