- Part number
- 6XV1870-3QH40
- Model no
- IE TP Cord RJ45/RJ45, 4x2
In stock · 14
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- RoHS
- UL
- EAC

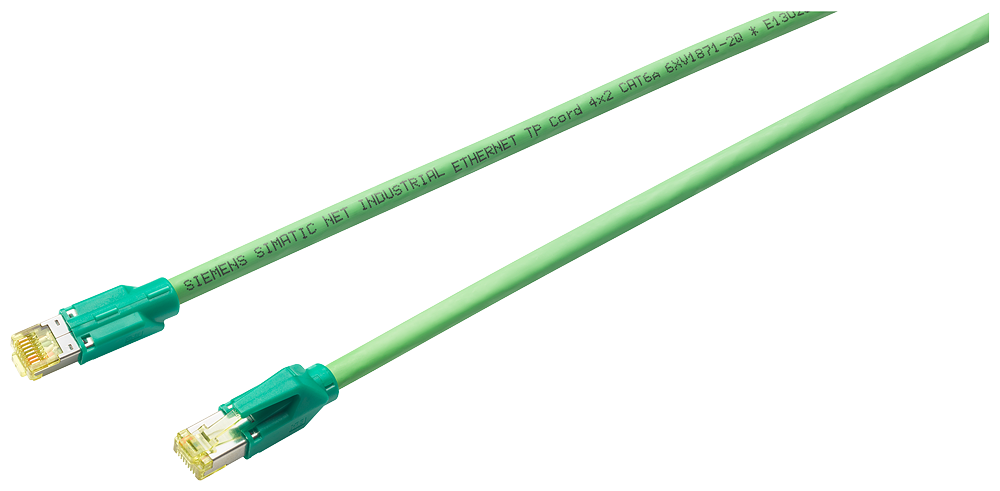

SIMATIC NETSiemens 6XV1870-3QH40 SIMATIC NET IE TP Cord RJ45/RJ45 Cat6a 4m Industrial Network Cable
SIMATIC NET Industrial Ethernet TP Cord, Cat6a S/FTP, RJ45/RJ45, 4m, PoE++ capable, IP20.
Description
About the IE TP Cord RJ45/RJ45, 4x2
About the IE TP Cord RJ45/RJ45, 4x2
The Siemens 6XV1870-3QH40 is a SIMATIC NET Industrial Ethernet TP Cord, a 4 m Cat6a S/FTP patch cable pre-assembled with two RJ45 connectors for 10/100/1000/10000 Mbit/s links. It supports PoE, PoE+, and PoE++ power delivery, carries an IP20 rating, and is halogen-free per EN 60754-2, and rated for -25 degC to +80 degC ambient use.
Certifications & Standards
- EAC
- UL
- RoHS
Selection Notes
Cat6A S/FTP construction supports 10 Gbit/s links to 100 m per ISO/IEC 11801-1 and adds PoE++ current-carrying capacity, so this cord suits high-power PoE cameras or access points as well as straight data links. The pre-assembled 4 m length with latched RJ45 plugs at both ends removes field termination as a failure point on short runs — for longer or custom-length connections, a bulk IE FC cable with separately terminated connectors is the alternative. FRNC sheathing and Eca burning-behavior classification make it suitable for cable trays inside machine enclosures where flame spread is a concern.
Applications
Patch connections between SIMATIC NET switches, PLCs, and PoE-powered devices — cameras, WLAN access points — in industrial Ethernet cabling runs up to 4 m.
Specification
Full specification
General 6
| product type designation | IE TP Cord RJ45/RJ45, 4x2 |
|---|---|
| product description | Patch cable, preferred length, preassembled with two RJ45 connectors (10/100/1000/10000MB) Industrial Ethernet TP cord RJ45/RJ45, Cat6a, S/FTP cable 4x2, pre-assembled with 2 RJ45 connectors, length 4 m. |
| product brand name | SIMATIC NET |
| suitability for use | Easy connection of terminal devices to the IE FC cabling system |
| cable designation | S/FTP, LI 02YSCH 4x2x0,15 PIMF GN FRNC |
| wire length | 4 m |
Electrical data 13
| number of electrical connections | 2 |
|---|---|
| attenuation factor per length: at 10 MHz / maximum | 0.086 dB/m |
| attenuation factor per length: at 100 MHz / maximum | 0.28 dB/m |
| attenuation factor per length: at 300 MHz / maximum | 0.501 dB/m |
| attenuation factor per length: at 600 MHz / maximum | 0.735 dB/m |
| impedance: at 1 MHz ... 100 MHz | 100 Ω |
| impedance: at 10 MHz ... 600 MHz | 100 Ω |
| relative symmetrical tolerance: of the characteristic impedance at 1 MHz ... 100 MHz | 15 % |
| coupling loss / at 30 MHz ... 100 MHz / minimum | 70 dB |
| transfer impedance per length / at 10 MHz | 10 mΩ/m |
| loop resistance per length / maximum | 290 mΩ/m |
| operating voltage: RMS value | 80 V |
| NVP value in percent | 80 % |
Mechanical data 14
| number of electrical cores | 8 |
|---|---|
| design of the shield | S/FTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires |
| core diameter: of AWG26 insulated conductor | 0.5 mm |
| outer diameter: of inner conductor | 0.5 mm |
| outer diameter: of the wire insulation | 1 mm |
| outer diameter: of cable sheath | 6.2 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.3 mm |
| material: of the wire insulation | polyethylene (PE) |
| material: of cable sheath | FRNC |
| color: of the insulation of data wires | white/blue, white/orange, white/green, white/brown |
| color: of cable sheath | green |
| bending radius: with single bend / minimum permissible | 31 mm |
| bending radius: with multiple bends / minimum permissible | 43.5 mm |
| weight per length | 50 kg/km |
Show all 82 specifications ↓ Show less ↑49 more values in Identification, Plug, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6XV1870-3QH40 |
|---|---|
| Type designation | IE TP Cord RJ45/RJ45, 4x2 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169855242 |
| ETIM class | EC003249 |
| eCl@ss | 27060307 |
Plug 3
| connector type | RJ45 |
|---|---|
| type of plug interlock | latched |
| design of plug-in connection | RJ45-180 |
Ambient conditions 11
| ambient temperature: during operation | -25 ... +80 °C |
|---|---|
| ambient temperature: during storage | -25 ... +80 °C |
| ambient temperature: during transport | -25 ... +80 °C |
| ambient temperature: during installation | -25 ... +80 °C |
| ambient temperature: note | In fixed installation -40 °C to 80 °C |
| fire behavior | flame resistant acc. to IEC 60332-1-2, EN 60332-3-24, smoke density acc. to IEC 61034 |
| class of burning behaviour / according to EN 13501-6 | Eca |
| chemical resistance: to mineral oil | oil resistant according to IEC 60811-2-1 (4 h / 70°C) |
| chemical resistance: to grease | Conditional resistance |
| radiological resistance / to UV radiation | not resistant |
| protection class IP | IP20 |
Product features, product functions, product components / general 5
| product feature: halogen-free | Yes; halogen-free according to EN 60754-2 |
|---|---|
| product feature: PoE capability | Yes |
| product feature: silicon-free | Yes |
| test voltage: at AC / core-to-core | 500 V |
| test voltage: at AC / core shield | 1500 V |
Standards, specifications, approvals 14
| UL/ETL listing / 300 V Rating | No |
|---|---|
| UL/ETL style / 600 V Rating | Yes; E502506 AWM STYLE 21279, Wiring Harness |
| certificate of suitability | ISO/IEC 11801-1, IEC 61035 |
| EAC approval | Yes |
| UL approval | Yes |
| RoHS conformity | Yes |
| standard for structured cabling | Cat6A |
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Germanische Lloyd (GL) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
| Marine classification association: Nippon Kaiji Kyokai (NK) | No |
| Marine classification association: Polski Rejestr Statkow (PRS) | No |
Logistics 6
| Net weight | 0.199 kg |
|---|---|
| Country of origin | HU |
| Shipping weight | 0.699 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6XV1870-3QH40
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- UL
- EAC
- EAC approval
- UL approval
- RoHS conformity
Quick answers
Questions about the IE TP Cord RJ45/RJ45, 4x2
Which supply voltage is IE TP Cord RJ45/RJ45, 4x2 rated for?
The rated operational voltage of IE TP Cord RJ45/RJ45, 4x2 is 80 V AC.
What is the HS code of IE TP Cord RJ45/RJ45, 4x2 for customs?
The tariff (HS) code on file for IE TP Cord RJ45/RJ45, 4x2 is 85444210.
What is the EAN of IE TP Cord RJ45/RJ45, 4x2?
The EAN (GTIN) of IE TP Cord RJ45/RJ45, 4x2 is 4019169855242.
Where does IE TP Cord RJ45/RJ45, 4x2 ship from, and how fast?
IE TP Cord RJ45/RJ45, 4x2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
