- Part number
- 6XV1840-2AU10
- Model no
- IE FC TP Standard Cable GP 2x2 (Type A)
Low stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- EAC
SIMATIC NETSiemens 6XV1840-2AU10 SIMATIC NET IE FC TP Standard Cable GP 1000m Cat5e Industrial Network Cable
SIMATIC NET IE FC TP Standard Cable GP, shielded Cat5e, 1000m reel, FastConnect, PoE+ capable.
Description
About the IE FC TP Standard Cable GP 2x2 (Type A)
About the IE FC TP Standard Cable GP 2x2 (Type A)
The Siemens 6XV1840-2AU10 is a SIMATIC NET Industrial Ethernet FC TP Standard Cable GP, a shielded Cat5e twisted-pair cable sold by the meter in 1000 m lengths for FastConnect (FC) termination onto IE FC RJ45 connectors. It uses a 2x2 SF/UTP construction with 100 ohm impedance, is rated -40...+75 degC, and supports PoE/PoE+.
Certifications & Standards
- EAC
- CE
- EPD
Selection Notes
This is the general-purpose (GP) PVC-jacketed version of the IE FC TP Standard Cable - pick it for indoor cable trays and conduit runs. The FastConnect (FC) termination system lets it be tool-crimped onto IE FC RJ45 connectors on site rather than requiring a pre-assembled patch cable, and the 1000 m reel length covers long point-to-point runs without splicing.
Applications
Used for PROFINET and Industrial Ethernet field wiring between switches, PLCs, and remote I/O in cable trays or conduit where FastConnect termination onto IE FC RJ45 connectors speeds up on-site assembly. The Cat5e rating and 100BaseTX distance of 100 m fit standard Industrial Ethernet segment lengths, and PoE+ support allows powered devices to share the same run.
Specification
Full specification
General 6
| product type designation | IE FC TP Standard Cable GP 2x2 (Type A) |
|---|---|
| product description | Standard bus cable (4 wires), preferred length, not assembled Industrial Ethernet FC TP standard cable GP, TP installation cable for connection to IE FC RJ45 2x2, for universal use, shielded Cat5e, 1000 m. |
| product brand name | SIMATIC NET |
| suitability for use | Standard cable with rigid cores for fast installation |
| cable designation | SF/UTP, 2YY (ST) CY 2x2x0,64/1,5-100 GN |
| wire length | 1000 m; sold by the meter |
Electrical data 8
| attenuation factor per length: at 10 MHz / maximum | 0.052 dB/m |
|---|---|
| attenuation factor per length: at 100 MHz / maximum | 0.195 dB/m |
| impedance: at 1 MHz ... 100 MHz | 100 Ω |
| relative symmetrical tolerance: of the characteristic impedance at 1 MHz ... 100 MHz | 15 % |
| transfer impedance per length / at 10 MHz | 10 mΩ/m |
| loop resistance per length / maximum | 115 mΩ/m |
| operating voltage: RMS value | 80 V |
| NVP value in percent | 69 % |
Mechanical data 18
| number of electrical cores | 4 |
|---|---|

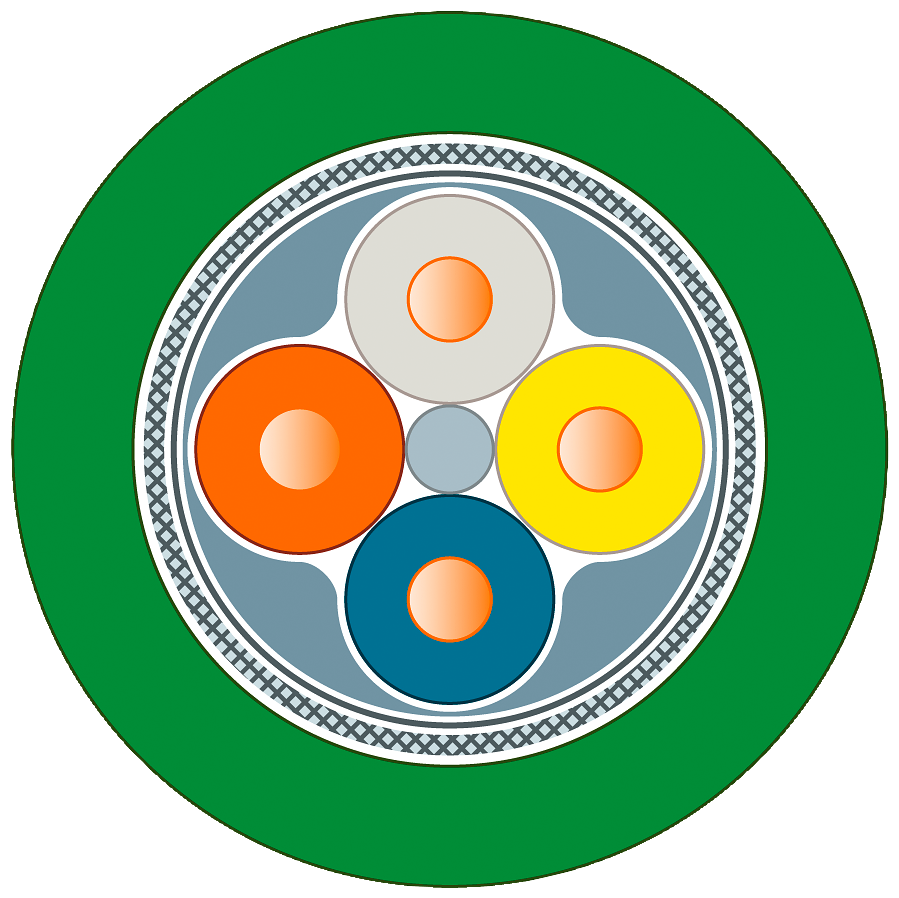

| design of the shield | SF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires |
| type of electrical connection / FastConnect | Yes |
| core diameter: of AWG22 insulated conductor | 0.64 mm |
| outer diameter: of inner conductor | 0.64 mm |
| outer diameter: of the wire insulation | 1.5 mm |
| outer diameter: of the inner sheath of the cable | 3.9 mm |
| outer diameter: of cable sheath | 6.5 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.2 mm |
| material: of the wire insulation | polyethylene (PE) |
| material: of the inner sheath of the cable | PVC |
| material: of cable sheath | PVC |
| color: of the insulation of data wires | white/yellow/blue/orange |
| color: of cable sheath | green |
| bending radius: with single bend / minimum permissible | 19.5 mm |
| bending radius: with multiple bends / minimum permissible | 49 mm |
| tensile load / maximum | 150 N |
| weight per length | 61 kg/km |
Show all 83 specifications ↓ Show less ↑51 more values in Identification, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6XV1840-2AU10 |
|---|---|
| Type designation | IE FC TP Standard Cable GP 2x2 (Type A) |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169400480 |
| ETIM class | EC003249 |
| eCl@ss | 27060307 |
Ambient conditions 11
| ambient temperature: during operation | -40 ... +75 °C |
|---|---|
| ambient temperature: during storage | -40 ... +75 °C |
| ambient temperature: during transport | -40 ... +75 °C |
| ambient temperature: during installation | -40 ... +60 °C |
| ambient temperature: note | electrical properties measured at 20 °C |
| fire behavior | flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4) |
| class of burning behaviour / according to EN 13501-6 | Eca |
| chemical resistance: to mineral oil | oil resistant according to IEC 60811-2-1 (4 h / 70°C) |
| chemical resistance: to grease | Conditional resistance |
| chemical resistance: to water | conditional resistance |
| radiological resistance / to UV radiation | resistant |
Product features, product functions, product components / general 6
| product feature: halogen-free | No |
|---|---|
| product feature: PoE capability | Yes |
| product feature: silicon-free | Yes |
| wire length / for Industrial Ethernet: with 100BaseTX | 100 m |
| test voltage: at AC / core-to-core | 2000 V |
| test voltage: at AC / core shield | 2000 V |
Standards, specifications, approvals 13
| UL/ETL listing / 300 V Rating | Yes; c(ETL)us / CMG / (ETL)us PLTC/ ITC / Sun Res |
|---|---|
| UL/ETL style / 600 V Rating | Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2 |
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: CE marking | Yes |
| standard for structured cabling | Cat5e |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Germanische Lloyd (GL) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
| Marine classification association: Nippon Kaiji Kyokai (NK) | No |
| Marine classification association: Polski Rejestr Statkow (PRS) | No |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.9 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.81 kg |
| global warming potential [CO2 eq]: during operation | 0.02 kg |
| global warming potential [CO2 eq]: after end of life | 0.07 kg |
Logistics 6
| Net weight | 71.15 kg |
|---|---|
| Country of origin | Slovakia |
| Shipping weight | 76.15 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6XV1840-2AU10
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- EAC
- EAC approval
- CE marking
- Environmental Product Declaration
Quick answers
Questions about the IE FC TP Standard Cable GP 2x2 (Type A)
Which supply voltage is IE FC TP Standard Cable GP 2x2 (Type A) rated for?
The rated operational voltage of IE FC TP Standard Cable GP 2x2 (Type A) is 80 V AC.
What is the HS code of IE FC TP Standard Cable GP 2x2 (Type A) for customs?
The tariff (HS) code on file for IE FC TP Standard Cable GP 2x2 (Type A) is 85444920.
What is the EAN of IE FC TP Standard Cable GP 2x2 (Type A)?
The EAN (GTIN) of IE FC TP Standard Cable GP 2x2 (Type A) is 4019169400480.
Where does IE FC TP Standard Cable GP 2x2 (Type A) ship from, and how fast?
IE FC TP Standard Cable GP 2x2 (Type A) ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
