- Part number
- 6XV1840-2AT50
- Model no
- IE FC TP Standard Cable GP 2x2 (Type A)
- CE
- RoHS
- EAC
SIMATIC NETSiemens 6XV1840-2AT50 SIMATIC NET IE FC TP Standard Cable GP 2x2 Type A 500m Industrial Network Cable
IE FC TP Standard Cable GP 2x2, 500 m Cat5e, 4-wire shielded, PoE+ capable, FastConnect
Description
About the IE FC TP Standard Cable GP 2x2 (Type A)
About the IE FC TP Standard Cable GP 2x2 (Type A)
The Siemens 6XV1840-2AT50 is a 500 m IE FC TP Standard Cable GP 2x2 (PROFINET Type A), a Cat5e-rated 4-wire shielded Industrial Ethernet cable with FastConnect termination for IE FC RJ45 plugs. It supports PoE and PoE+ operation, has a maximum loop resistance of 115 mΩ/m, and is rated -40 to +75°C for permanent PROFINET installation runs.
Certifications & Standards
- EAC
- CE
- RoHS
- EPD
Selection Notes
The 500 m preferred length covers a full plant backbone segment or several device drops from a single reel, cutting field splices versus joining shorter lengths. FastConnect termination means the 0.64 mm inner conductor accepts insertion-displacement connectors on site rather than a soldered joint, and PoE+ capability lets the cable carry data and power to field devices such as IP cameras or WLAN access points. For a single short device drop, the shorter-length variant in the same cable range avoids carrying this reel's 34 kg of unused cable.
Applications
Used for PROFINET and Industrial Ethernet backbone and device wiring in factory and process automation, connecting switches, PLCs, HMI panels, and PoE-powered field devices across larger plant areas. The -40 to +60°C installation rating and IEC 60332-3-24 flame-resistant sheath suit cable trays, machine wiring, and panel-to-field runs.
Specification
Full specification
General 6
| product type designation | IE FC TP Standard Cable GP 2x2 (Type A) |
|---|---|
| product description | Standard bus cable (4 wires), preferred length, not assembled IE FC TP Standard Cable GP 2x2 (PROFINET Type A), CAT5E bus cable 4-wire, shielded, special configuration for quick assembly to IE FC RJ45 plug 2x2, 500 m. |
| product brand name | SIMATIC NET |
| suitability for use | Standard cable with rigid cores for fast installation |
| cable designation | SF/UTP, 2YY (ST) CY 2x2x0,64/1,5-100 GN |
| wire length | 500 m |
Electrical data 9
| attenuation factor per length: at 10 MHz / maximum | 0.052 dB/m |
|---|---|
| attenuation factor per length: at 100 MHz / maximum | 0.195 dB/m |
| impedance: at 1 MHz ... 100 MHz | 100 Ω |
| relative symmetrical tolerance: of the characteristic impedance at 1 MHz ... 100 MHz | 15 % |
| near-end crosstalk per length: at 1 MHz ... 100 MHz | 0.5 dB/m |
| transfer impedance per length / at 10 MHz | 10 mΩ/m |
| loop resistance per length / maximum | 115 mΩ/m |
| operating voltage: RMS value | 80 V |
| NVP value in percent | 69 % |
Mechanical data 18
| number of electrical cores | 4 |
|---|---|

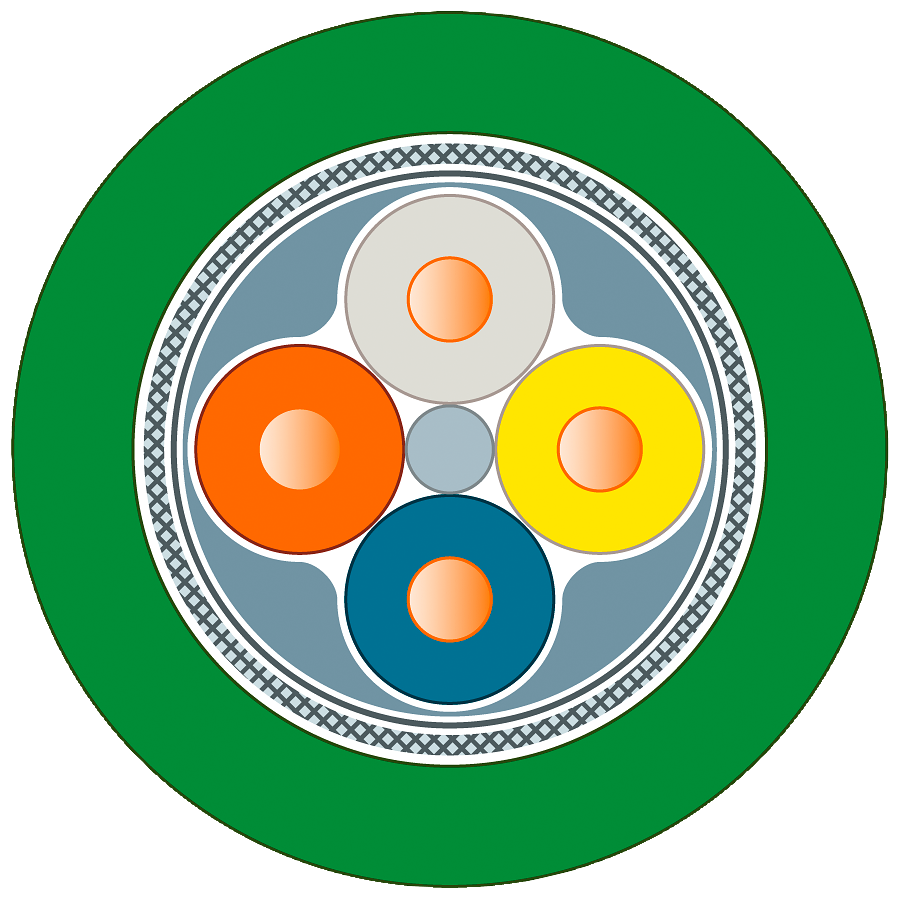

| design of the shield | SF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires |
| type of electrical connection / FastConnect | Yes |
| core diameter: of AWG22 insulated conductor | 0.64 mm |
| outer diameter: of inner conductor | 0.64 mm |
| outer diameter: of the wire insulation | 1.5 mm |
| outer diameter: of the inner sheath of the cable | 3.9 mm |
| outer diameter: of cable sheath | 6.5 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.2 mm |
| material: of the wire insulation | polyethylene (PE) |
| material: of the inner sheath of the cable | PVC |
| material: of cable sheath | PVC |
| color: of the insulation of data wires | white/yellow/blue/orange |
| color: of cable sheath | green |
| bending radius: with single bend / minimum permissible | 19.5 mm |
| bending radius: with multiple bends / minimum permissible | 49 mm |
| tensile load / maximum | 150 N |
| weight per length | 61 kg/km |
Show all 87 specifications ↓ Show less ↑54 more values in Identification, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Manufacturer Declara- Declaration of Con- Fire safety / Physical, Logistics.
Identification 10
| Part number | 6XV1840-2AT50 |
|---|---|
| Type designation | IE FC TP Standard Cable GP 2x2 (Type A) |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169856409 |
| ETIM class | EC003249 |
| eCl@ss | 27060307 |
Ambient conditions 11
| ambient temperature: during operation | -40 ... +75 °C |
|---|---|
| ambient temperature: during storage | -40 ... +75 °C |
| ambient temperature: during transport | -40 ... +75 °C |
| ambient temperature: during installation | -40 ... +60 °C |
| ambient temperature: note | electrical properties measured at 20 °C |
| fire behavior | flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4) |
| class of burning behaviour / according to EN 13501-6 | Eca |
| chemical resistance: to mineral oil | oil resistant according to IEC 60811-2-1 (4 h / 70°C) |
| chemical resistance: to grease | Conditional resistance |
| chemical resistance: to water | conditional resistance |
| radiological resistance / to UV radiation | resistant |
Product features, product functions, product components / general 6
| product feature: halogen-free | No |
|---|---|
| product feature: PoE capability | Yes |
| product feature: silicon-free | Yes |
| wire length / for Industrial Ethernet: with 100BaseTX | 100 m |
| test voltage: at AC / core-to-core | 2000 V |
| test voltage: at AC / core shield | 2000 V |
Standards, specifications, approvals 14
| UL/ETL listing / 300 V Rating | Yes; c(ETL)us / CMG / (ETL)us PLTC/ ITC / Sun Res |
|---|---|
| UL/ETL style / 600 V Rating | Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2 |
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: CE marking | Yes |
| certificate of suitability: RoHS conformity | Yes |
| standard for structured cabling | Cat5e |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Germanische Lloyd (GL) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
| Marine classification association: Nippon Kaiji Kyokai (NK) | No |
| Marine classification association: Polski Rejestr Statkow (PRS) | No |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.9 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.81 kg |
| global warming potential [CO2 eq]: during operation | 0.02 kg |
| global warming potential [CO2 eq]: after end of life | 0.07 kg |
Manufacturer Declara- Declaration of Con- Fire safety / Physical 2
| tion formity security | Industrial Commu- |
|---|---|
| General Product Approval other Environment | nication |
Logistics 6
| Net weight | 34 kg |
|---|---|
| Country of origin | Slovakia |
| Shipping weight | 39.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6XV1840-2AT50
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- EAC
- EAC approval
- CE marking
- RoHS conformity
- Environmental Product Declaration
Quick answers
Questions about the IE FC TP Standard Cable GP 2x2 (Type A)
Which supply voltage is IE FC TP Standard Cable GP 2x2 (Type A) rated for?
The rated operational voltage of IE FC TP Standard Cable GP 2x2 (Type A) is 80 V AC.
What is the HS code of IE FC TP Standard Cable GP 2x2 (Type A) for customs?
The tariff (HS) code on file for IE FC TP Standard Cable GP 2x2 (Type A) is 85444920.
What is the EAN of IE FC TP Standard Cable GP 2x2 (Type A)?
The EAN (GTIN) of IE FC TP Standard Cable GP 2x2 (Type A) is 4019169856409.
Where does IE FC TP Standard Cable GP 2x2 (Type A) ship from, and how fast?
IE FC TP Standard Cable GP 2x2 (Type A) ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
