Siemens 6XV1840-2AT10 SIMATIC NET IE FC TP Standard Cable GP 2x2 Type A 100m Industrial Network Cable

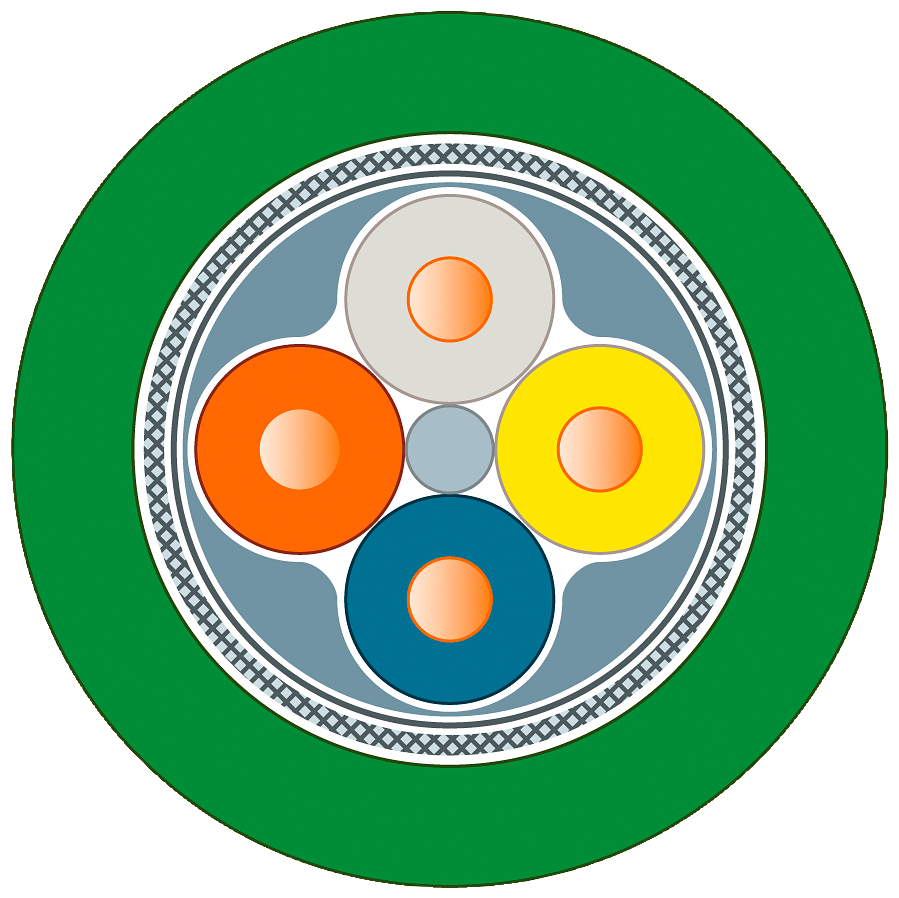

The Siemens 6XV1840-2AT10 is a 100 m IE FC TP Standard Cable GP 2x2 (PROFINET Type A), a Cat5e-rated 4-wire shielded Industrial Ethernet cable with FastConnect termination for IE FC RJ45 plugs. It supports PoE and PoE+ operation, has a maximum loop resistance of 115 mΩ/m, and is rated -40 to +75°C for permanent PROFINET installation runs.

Technical Specifications

Certifications & Standards

• EAC
• CE
• RoHS
• EPD

Selection Notes

Choose the 100 m length for a single continuous drop between a switch and a device rather than a field splice, since termination is FastConnect onto the IE FC RJ45 plug rather than a soldered joint. The Cat5e rating and 0.052 dB/m attenuation at 10 MHz support 100BaseTX Industrial Ethernet runs up to 100 m, and PoE+ capability lets this cable carry both data and power to field devices such as IP cameras or WLAN access points on the same run. For a longer backbone segment, choose the longer-length variant in the same cable range instead of joining reels.

Applications

Used for PROFINET and Industrial Ethernet device wiring in factory and process automation, connecting switches, PLCs, HMI panels, and PoE-powered field devices. The -40 to +60°C installation rating and IEC 60332-3-24 flame-resistant sheath suit cable trays, machine wiring, and panel-to-field runs.
