- Part number
- 6XV1830-0ET20
- Model no
- PROFIBUS FC Standard Cable GP
Critical stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- RoHS
- UL
- EAC
SIMATIC NETSiemens 6XV1830-0ET20 SIMATIC NET PROFIBUS FC Standard Cable GP 200m Industrial Network Cable
PROFIBUS FC Standard Cable GP, 200 m, 2-wire shielded, 150 Ω, FastConnect termination
Description
About the PROFIBUS FC Standard Cable GP
About the PROFIBUS FC Standard Cable GP
The Siemens 6XV1830-0ET20 is a 200 m PROFIBUS FC Standard Cable GP, a shielded 2-wire bus cable with 150 Ω characteristic impedance and FastConnect termination for fast on-site assembly. Maximum loop resistance is 110 mΩ/m and the cable is rated -40 to +75°C, with EAC, CE, and UL approvals for permanent PROFIBUS DP trunk and drop-line installation.
Certifications & Standards
- EAC
- CE
- UL
- RoHS
- EPD
Selection Notes
The 200 m preferred length covers longer PROFIBUS DP segments in a single continuous run, cutting the number of field splices needed compared with joining shorter reels. FastConnect termination means the 0.65 mm inner conductor accepts insertion-displacement connectors on site rather than a stripped and soldered joint. For a shorter segment, the shorter-length variant in the same cable range avoids unused reel length and reduces installed weight, since this reel already carries 14.86 kg net.
Applications
Used for permanent PROFIBUS DP fieldbus segments connecting PLCs, remote I/O, and drives across longer plant runs, where FastConnect on-site termination speeds trunk and drop-line installation. The -40 to +75°C rating and IEC 60332-3-24 flame-resistant sheath suit cable trays and conduit runs in process and factory automation plants.
Specification
Full specification
General 6
| product type designation | PROFIBUS FC Standard Cable GP |
|---|---|
| product description | Standard bus cable (2 wires), preferred length, not assembled PROFIBUS FC Standard, bus cable 2-wire, shielded, special configuration for Quick assembly 200 m. |
| product brand name | SIMATIC NET |
| suitability for use | Standard cable specially designed for fast, permanent installation |
| cable designation | 02YSY (ST) CY 1x2x0,64/2,55-150 VI KF 40 FR |
| wire length | 200 m |
Electrical data 13
| attenuation factor per length: at 9.6 kHz / maximum | 0.0025 dB/m |
|---|---|
| attenuation factor per length: at 38.4 kHz / maximum | 0.004 dB/m |
| attenuation factor per length: at 4 MHz / maximum | 0.022 dB/m |
| attenuation factor per length: at 16 MHz / maximum | 0.042 dB/m |
| impedance: rated value | 150 Ω |
| impedance: at 9.6 kHz | 270 Ω |
| impedance: at 38.4 kHz | 185 Ω |
| impedance: at 3 MHz ... 20 MHz | 150 Ω |
| relative symmetrical tolerance: of the characteristic impedance at 9.6 kHz | 10 % |
| loop resistance per length / maximum | 110 mΩ/m |
| shield resistance per length / maximum | 9.5 Ω/km |
| capacity per length / at 1 kHz | 28.5 pF/m |
| operating voltage: RMS value | 80 V |
Mechanical data 17
| number of electrical cores | 2 |
|---|---|

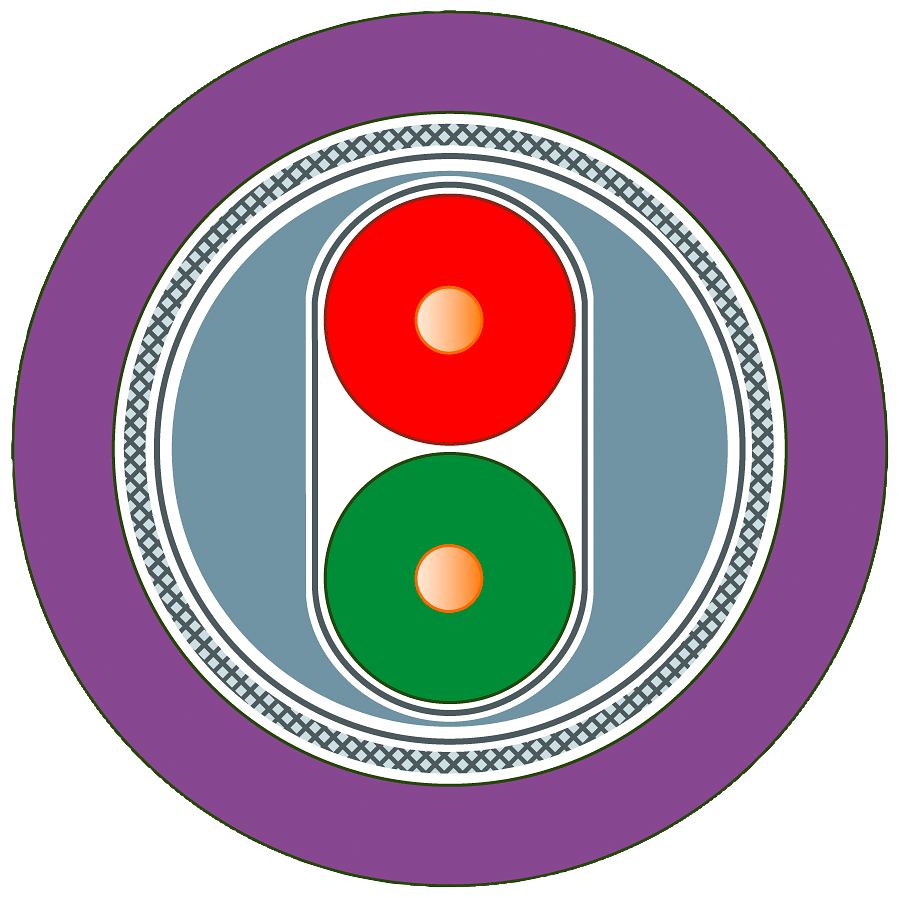

| design of the shield | Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires |
| type of electrical connection / FastConnect | Yes |
| outer diameter: of inner conductor | 0.65 mm |
| outer diameter: of the wire insulation | 2.55 mm |
| outer diameter: of the inner sheath of the cable | 5.4 mm |
| outer diameter: of cable sheath | 8 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.4 mm |
| material: of the wire insulation | polyethylene (PE) |
| material: of the inner sheath of the cable | PVC |
| material: of cable sheath | PVC |
| color: of the insulation of data wires | red/green |
| color: of cable sheath | Violet |
| bending radius: with single bend / minimum permissible | 37.5 mm |
| bending radius: with multiple bends / minimum permissible | 75 mm |
| tensile load / maximum | 100 N |
| weight per length | 78 kg/km |
Show all 84 specifications ↓ Show less ↑48 more values in Identification, Ambient conditions, Product features, product functions, product components / general, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6XV1830-0ET20 |
|---|---|
| Type designation | PROFIBUS FC Standard Cable GP |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169400350 |
| ETIM class | EC003249 |
| eCl@ss | 27060307 |
Ambient conditions 11
| ambient temperature: during operation | -40 ... +75 °C |
|---|---|
| ambient temperature: during storage | -40 ... +75 °C |
| ambient temperature: during transport | -40 ... +75 °C |
| ambient temperature: during installation | -40 ... +75 °C |
| ambient temperature: note | electrical properties measured at 20 °C |
| fire behavior | flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4) |
| class of burning behaviour / according to EN 13501-6 | Eca |
| chemical resistance: to mineral oil | oil resistant according to IEC 60811-2-1 (4 h / 70°C) |
| chemical resistance: to grease | Conditional resistance |
| chemical resistance: to water | conditional resistance |
| radiological resistance / to UV radiation | resistant |
Product features, product functions, product components / general 2
| product feature: halogen-free | No |
|---|---|
| product feature: silicon-free | Yes |
Standards, specifications, approvals 14
| UL/ETL listing / 300 V Rating | Yes; c(ETL)us, CMG / (ETL)us CL3 / Sun Res |
|---|---|
| UL/ETL style / 600 V Rating | Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2 |
| certificate of suitability: EAC approval | Yes |
| certificate of suitability: CE marking | Yes |
| certificate of suitability: UL approval | Yes |
| certificate of suitability: RoHS conformity | Yes |
| certificate of suitability: resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Germanische Lloyd (GL) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
| Marine classification association: Nippon Kaiji Kyokai (NK) | No |
| Marine classification association: Polski Rejestr Statkow (PRS) | No |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 0.92 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.8 kg |
| global warming potential [CO2 eq]: during operation | 0.02 kg |
| global warming potential [CO2 eq]: after end of life | 0.1 kg |
Logistics 6
| Net weight | 14.86 kg |
|---|---|
| Country of origin | Slovakia |
| Shipping weight | 15.86 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6XV1830-0ET20
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UL
- EAC
- EAC approval
- CE marking
- UL approval
- RoHS conformity
- Environmental Product Declaration
Quick answers
Questions about the PROFIBUS FC Standard Cable GP
Which supply voltage is PROFIBUS FC Standard Cable GP rated for?
The rated operational voltage of PROFIBUS FC Standard Cable GP is 80 V AC.
What is the HS code of PROFIBUS FC Standard Cable GP for customs?
The tariff (HS) code on file for PROFIBUS FC Standard Cable GP is 85444920.
What is the EAN of PROFIBUS FC Standard Cable GP?
The EAN (GTIN) of PROFIBUS FC Standard Cable GP is 4019169400350.
Where does PROFIBUS FC Standard Cable GP ship from, and how fast?
PROFIBUS FC Standard Cable GP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
