Siemens 6NH3112-3BA00-1XX2 SIMATIC RTU3000C Battery Housing for Two Mono Cells Automation Component

% $-235.63
Siemens 6NH3112-3BA00-1XX2 SIMATIC RTU3000C battery housing for two mono cells
Siemens 6NH3112-3BA00-1XX2 SIMATIC RTU3000C battery housing for two mono cells

Siemens 6NH3112-3BA00-1XX2 SIMATIC RTU3000C Battery Housing for Two Mono Cells Automation Component

Brand: Siemens
Reference No: 6NH3112-3BA00-1XX2
Catalog No: 6NH3112-3BA00-1XX2
Series: SIMATIC
Tariff Code (HS): 85069000
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$235.63

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

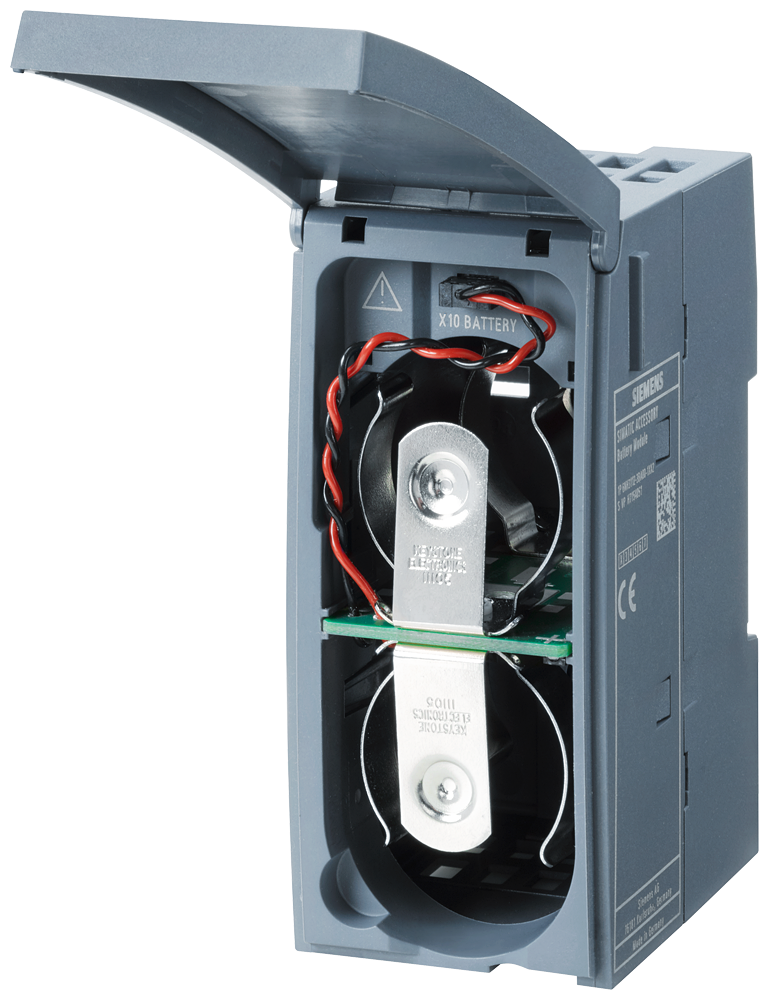

The Siemens 6NH3112-3BA00-1XX2 is a battery enclosure for two mono cells, built for the SIMATIC RTU3011C and RTU3030C telecontrol units. Batteries are not included and must be ordered separately per the equipment manual's approved battery type. It connects to the RTU and to a second battery enclosure through two sockets, in a 45 x 100 x 75 mm plastic housing rated IP20.

Technical Specifications

SKU 6NH3112-3BA00-1XX2
Brand Siemens
Series SIMATIC RTU3000C
EAN 4047622242490
Product Type Designation Battery housing for RTU3000C range with autonomous power supply
Suitability for Operation Suitable for two mono cells; observe the SIMATIC RTU3010C and RTU3030C Equipment Manuals
Number of Electrical Connections 2
Type of Electrical Connection Sockets for connecting to SIMATIC RTU3000C and another battery enclosure
Material Housing: plastic; battery holder: spring steel, nickel-plated
Ambient Temperature, Operation -40 ... +60 °C (vertical mounting position)
Ambient Temperature, Storage / Transport -40 ... +70 °C
Relative Humidity, Max 95% at 30 °C, non-condensing
Protection Class IP IP20
Design Compact
Width 45 mm
Height 100 mm
Depth 75 mm
Net Weight 132 g
Identification Link Supported per IEC 61406-1:2022
Country of Origin DE

Selection Notes

Two of these enclosures can be chained through the second socket to extend backup runtime beyond a single pair of mono cells, without adding a separate charger or supply module. Because the enclosure only supplies power during outages of the external 10.8 to 28.8 V DC input, the battery type specified in the RTU3010C and RTU3030C equipment manuals must be respected, or the RTU's battery-mode current draw and low-voltage cutoff will not match the cell chemistry.

Technical Details

Short Description
Siemens SIMATIC RTU3000C battery enclosure for two mono cells, IP20, batteries sold separately; chainable via a second socket.
Protection Type
IP20
Catalog No
6NH3112-3BA00-1XX2
Delivery Date (Days)
10-15 days
Model Number
6NH3112-3BA00-1XX2
Tariff Code
85069000
