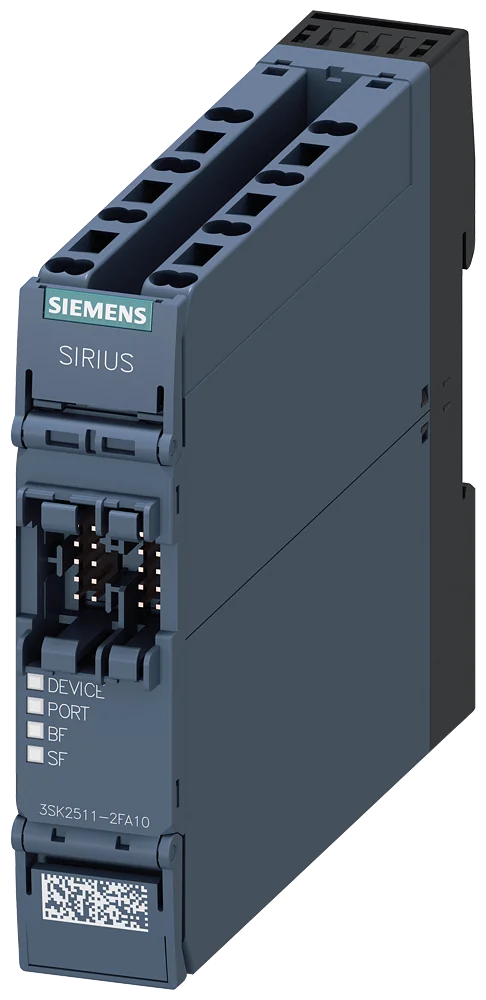

Siemens 3SK2511-2FA10 3SK2 Safety Relay

Name: Siemens 3SK2511-2FA10 3SK2 Safety Relay
Brand: Siemens
SKU: 3SK2511-2FA10
Price: 395.16 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 3SK2511-2FA10

Catalog No: 3SK2511-2FA10

Series: 3SK2

Stock: 0

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$395.16

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Siemens 3SK2511-2FA10 is a safety relay from the SENTRON/SIRIUS 3SK2 series. SIRIUS, interface module PROFINET interface for safety relay 3SK2 as of E05 and 3RK31 as of E04 PROFINET IO interface 100 Mbit/s, RJ45 22.5 mm width Spring-type terminal Can be parameterized via Safety ES without connecting cable. Supplied by Stoklink for industrial and commercial low-voltage applications.

Technical Specifications

SKU	3SK2511-2FA10
Brand	Siemens
Series	3SK2
Product Type	Safety Relay
Certificate of suitability UL approval	Yes
Configuration software required	Yes; Safety ES V1.0 SP3 and higher
Insulation voltage rated value	50 V
Degree of pollution	3
Surge voltage resistance rated value	800 V
Consumed current for rated value of supply voltage	0.04 A
Protection class IP of the enclosure	IP20
Shock resistance	15 g / 11 ms
According to IEC 60068-2-6	5 ... 500 Hz: 0.75 mm
Net Weight	0.164 kg
Installation altitude at height above sea level maximum	4 000 m
Relative humidity during operation	10 ... 95 %
Air pressure according to SN 31205	90 ... 106 kPa
EMC emitted interference according to IEC 60947-1	class A
EMC immunity according to IEC 60947-1	Class A
Due to burst according to IEC 61000-4-4	2 kV (power ports)
Due to conductor-earth surge according to IEC 61000-4-5	Test Level 0.5 KV / 1 KV
Electrostatic discharge according to IEC 61000-4-2	4 kV contact discharge / 8 kV air discharge
Weight	0.164 kg
Country of Origin	DE

Applications & Use Cases

The Siemens 3SK2511-2FA10 is used in industrial control panels, distribution boards and automation systems. As part of the Siemens 3SK2 range it integrates with compatible SENTRON/SIRIUS components for a coordinated low-voltage installation. Genuine Siemens product supplied by Stoklink with fast dispatch from Türkiye.
