- Part number
- 6GT2812-2GB08
- Model no
- Antenna RF680A SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, - 25 to +75 °C.
- CE

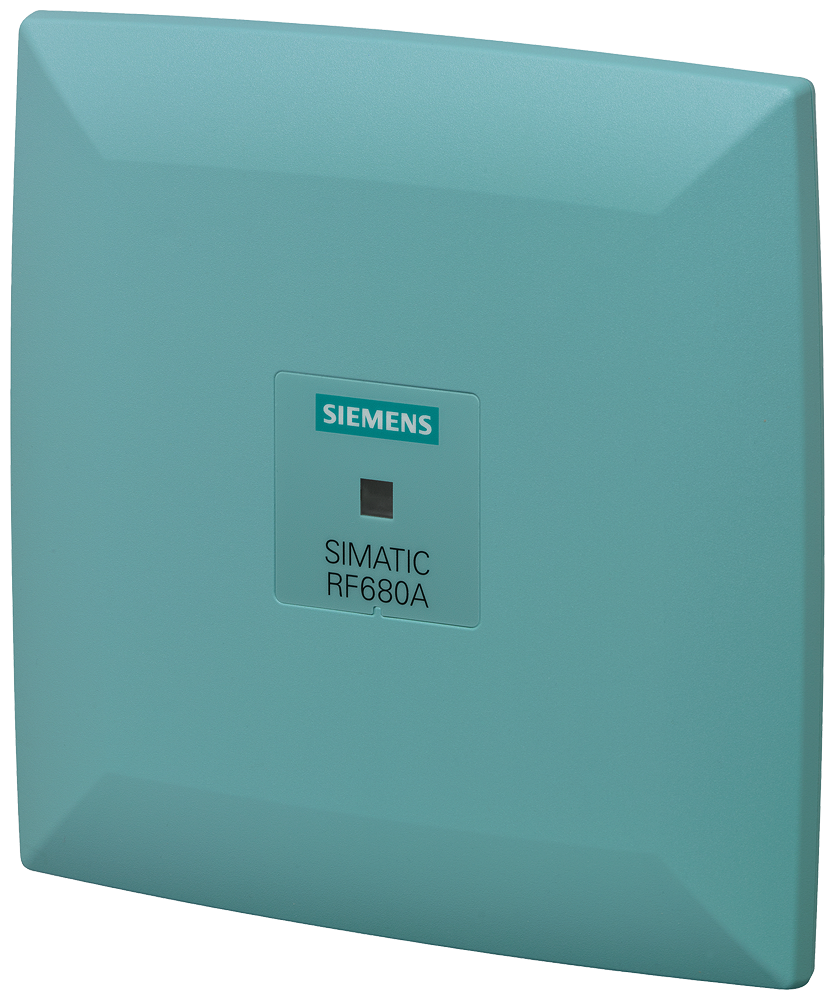

Siemens 6GT2812-2GB08 SIMATIC RF600 Antenna RF680A Linear/Circular 865-928 MHz RFID Antenna
SIMATIC RF600 antenna RF680A, linear or circular polarization, 865-928 MHz, 3.5 dB gain, IP65, RP-TNC.
Description
About the Antenna RF680A SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, - 25 to +75 °C.
About the Antenna RF680A SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, - 25 to +75 °C.
The Siemens 6GT2812-2GB08 is a SIMATIC RF600 antenna, model RF680A, that lets the polarization be switched between linear and circular for the 865 to 928 MHz UHF RFID band. It delivers 3.5 dB gain with a 90-degree horizontal and 77-degree vertical radiating angle through a male RP-TNC connector, and its IP65 housing runs from -25 to +75 degrees C.
Selection Notes
The RF680A's switchable polarization is the deciding factor over the fixed-linear RF642A: pick circular when tag orientation on the read zone is unpredictable (mixed-orientation cartons, random pallet loading), and linear when tags are consistently oriented and the extra range from linear polarization matters more than orientation tolerance. Its wider 90° x 77° radiating angle covers a broader read zone than the RF642A's 75° x 70° at a similar 3.5 dB gain. The RP-TNC male connector mates directly with the antenna, no pigtail.
Specification
Full specification
General 3
| product type designation | Antenna RF680A SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, - 25 to +75 °C. |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | SIMATIC RF600 |
Radio frequencies 1
| transmission frequency | 865 ... 928 MHz |
|---|
Electrical data 9
| antenna gain compared to spherical radiator: with linear radiation | 3.5 dB |
|---|---|
| antenna gain compared to spherical radiator: with circular radiation | 3.5 dB |
| impedance | 50 Ω |
| polarization | Linear (h/v), circular, combined |
| standing wave ratio (VSWR) / maximum | 1.45 |
| radiating angle of the antenna: horizontal | 90° |
| radiating angle of the antenna: vertical | 77° |
| type of electrical connection / of the antenna | RP-TNC |
| design of plug-in connection | male |
Show all 50 specifications ↓ Show less ↑37 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Accessories, Logistics.
Identification 10
| Part number | 6GT2812-2GB08 |
|---|---|
| Type designation | Antenna RF680A SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, - 25 to +75 °C. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622367605 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 4
| material | Pocan |
|---|---|
| color | Pastel turquoise |
| tightening torque / of the screw for securing the equipment / maximum | 2 N·m |
| mounting distance: relating to metal surfaces / recommended / minimum | 0 m |
Ambient conditions 6
| ambient temperature: during operation | -25 ... +75 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| protection class IP | IP65 |
| shock acceleration | 300 m/s2 |
| vibrational acceleration | 100 m/s2 |
Design, dimensions and weights 5
| width | 198 mm |
|---|---|
| height | 198 mm |
| depth | 60 mm |
| fastening method | 4 screws M4 according to VESA 100, optional with articulated bracket by using antenna mounting kit |
| wire length / of antenna cable | 0 m |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Standards, specifications, approvals 3
| certificate of suitability | CE (according to R&TTE), FCC (Title 47, Part 15.247), cULus |
|---|---|
| certificate of suitability: IECEx | No |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Accessories 1
| accessories | Antenna cables 1 to 40 m |
|---|
Logistics 7
| Net weight | 0.99 kg |
|---|---|
| Package dimensions | 60 × 198 × 198 mm |
| Country of origin | DE |
| Shipping weight | 1.49 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2812-2GB08
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
Quick answers
Questions about the Antenna RF680A SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, - 25 to +75 °C.
What is the HS code of Antenna RF680A SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, - 25 to +75 °C. for customs?
The tariff (HS) code on file for Antenna RF680A SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, - 25 to +75 °C. is 85177100.
What is the EAN of Antenna RF680A SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, - 25 to +75 °C.?
The EAN (GTIN) of Antenna RF680A SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, - 25 to +75 °C. is 4047622367605.
Where does Antenna RF680A SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, - 25 to +75 °C. ship from, and how fast?
Antenna RF680A SIMATIC RF600 antenna RF680A Linear or circular can be selected frequency range 865 to 928 MHz Broadband dimensions 198x 198x 60 mm (LxWxH) IP65, - 25 to +75 °C. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
