- Part number
- 6GT2812-1GA08
- Model no
- Antenna RF642A SIMATIC RF600 antenna RF642A linear (broadband) frequency range 865 to 928 MHz Dimensions 185x 185x 45 mm (LxWxH) IP65, -25 to +75 °C.
- CE

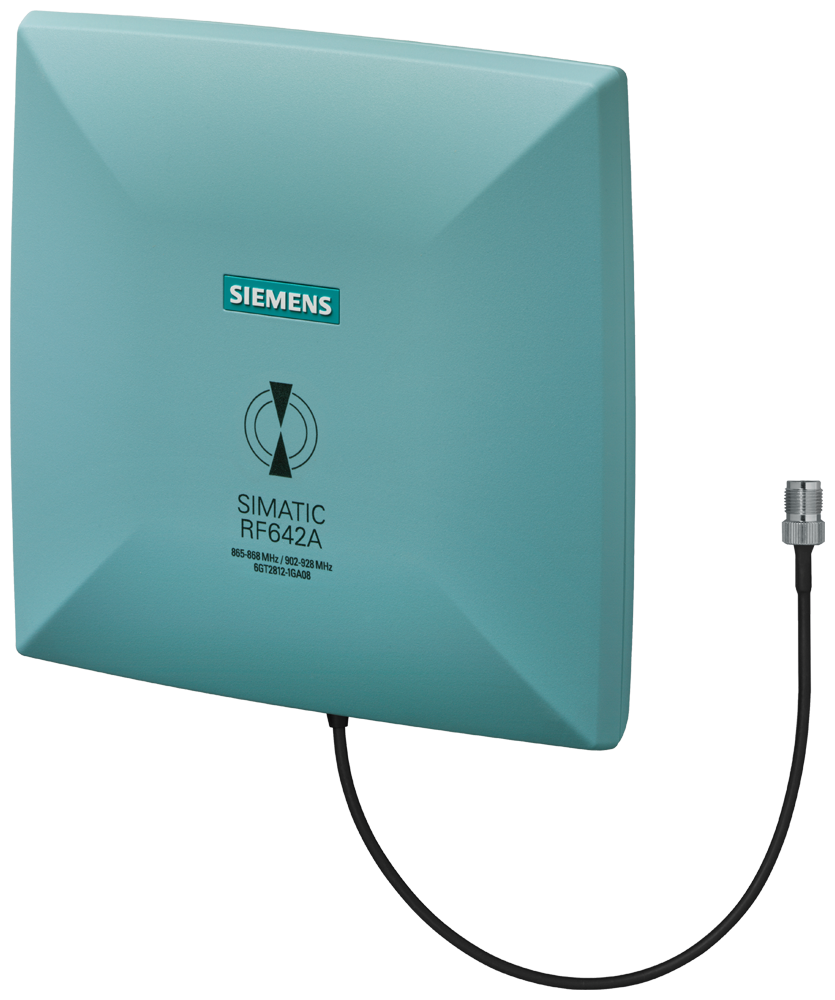

Siemens 6GT2812-1GA08 SIMATIC RF600 Antenna RF642A Linear 865-928 MHz IP65 RFID Antenna
SIMATIC RF600 antenna RF642A, linear polarization, 865-928 MHz, 6 dB gain, IP65, RP-TNC male connector.
Description
About the Antenna RF642A SIMATIC RF600 antenna RF642A linear (broadband) frequency range 865 to 928 MHz Dimensions 185x 185x 45 mm (LxWxH) IP65, -25 to +75 °C.
About the Antenna RF642A SIMATIC RF600 antenna RF642A linear (broadband) frequency range 865 to 928 MHz Dimensions 185x 185x 45 mm (LxWxH) IP65, -25 to +75 °C.
The Siemens 6GT2812-1GA08 is a SIMATIC RF600 antenna, model RF642A, built for linear UHF RFID reading across the 865 to 928 MHz band. It provides 6 dB gain with a 75-degree horizontal and 70-degree vertical radiating angle through a male RP-TNC connector, and its IP65 housing operates from -25 to +75 degrees C.
Selection Notes
Linear polarization on the RF642A concentrates energy in one plane, which favors read range on tags oriented consistently to the antenna, unlike a circular antenna that trades some range for tolerance to tag orientation. At 6 dB gain with a 75° x 70° radiating pattern, it suits a fixed gate or conveyor position where tag orientation is predictable and the read zone needs to stay tight. The 0.3 m pigtail terminates in RP-TNC male, so a separate SIMATIC RF600 antenna cable of the required length connects it to the reader.
Specification
Full specification
General 3
| product type designation | Antenna RF642A SIMATIC RF600 antenna RF642A linear (broadband) frequency range 865 to 928 MHz Dimensions 185x 185x 45 mm (LxWxH) IP65, -25 to +75 °C. |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | SIMATIC RF600 |
Radio frequencies 1
| transmission frequency | 865 ... 928 MHz |
|---|
Electrical data 8
| antenna gain compared to spherical radiator: with linear radiation | 6 dB |
|---|---|
| impedance | 50 Ω |
| polarization | Linear |
| standing wave ratio (VSWR) / maximum | 1.5 |
| radiating angle of the antenna: horizontal | 75° |
| radiating angle of the antenna: vertical | 70° |
| type of electrical connection / of the antenna | RP-TNC |
| design of plug-in connection | male |
Show all 49 specifications ↓ Show less ↑37 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Accessories, Logistics.
Identification 10
| Part number | 6GT2812-1GA08 |
|---|---|
| Type designation | Antenna RF642A SIMATIC RF600 antenna RF642A linear (broadband) frequency range 865 to 928 MHz Dimensions 185x 185x 45 mm (LxWxH) IP65, -25 to +75 °C. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4042948554807 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 4
| material | PA 12 |
|---|---|
| color | Pastel turquoise |
| tightening torque / of the screw for securing the equipment / maximum | 2 N·m |
| mounting distance: relating to metal surfaces / recommended / minimum | 0 m |
Ambient conditions 7
| ambient temperature: during operation | -25 ... +75 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| protection class IP | IP65 |
| shock resistance | according to EN 60068-2-27 |
| shock acceleration | 300 m/s2 |
| vibrational acceleration | 100 m/s2 |
Design, dimensions and weights 5
| width | 185 mm |
|---|---|
| height | 185 mm |
| depth | 45 mm |
| fastening method | 4 screws M4 according to VESA 100, optional with articulated bracket by using antenna mounting kit |
| wire length / of antenna cable | 0.3 m |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Standards, specifications, approvals 2
| certificate of suitability | CE (according to R&TTE), FCC (Title 47, Part 15.247), cULus |
|---|---|
| certificate of suitability: IECEx | No |
Accessories 1
| accessories further information / internet links | Antenna cables 1 to 40 m |
|---|
Logistics 7
| Net weight | 0.6 kg |
|---|---|
| Package dimensions | 45 × 185 × 185 mm |
| Country of origin | Romania |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2812-1GA08
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
Quick answers
Questions about the Antenna RF642A SIMATIC RF600 antenna RF642A linear (broadband) frequency range 865 to 928 MHz Dimensions 185x 185x 45 mm (LxWxH) IP65, -25 to +75 °C.
What is the HS code of Antenna RF642A SIMATIC RF600 antenna RF642A linear (broadband) frequency range 865 to 928 MHz Dimensions 185x 185x 45 mm (LxWxH) IP65, -25 to +75 °C. for customs?
The tariff (HS) code on file for Antenna RF642A SIMATIC RF600 antenna RF642A linear (broadband) frequency range 865 to 928 MHz Dimensions 185x 185x 45 mm (LxWxH) IP65, -25 to +75 °C. is 85177100.
What is the EAN of Antenna RF642A SIMATIC RF600 antenna RF642A linear (broadband) frequency range 865 to 928 MHz Dimensions 185x 185x 45 mm (LxWxH) IP65, -25 to +75 °C.?
The EAN (GTIN) of Antenna RF642A SIMATIC RF600 antenna RF642A linear (broadband) frequency range 865 to 928 MHz Dimensions 185x 185x 45 mm (LxWxH) IP65, -25 to +75 °C. is 4042948554807.
Where does Antenna RF642A SIMATIC RF600 antenna RF642A linear (broadband) frequency range 865 to 928 MHz Dimensions 185x 185x 45 mm (LxWxH) IP65, -25 to +75 °C. ship from, and how fast?
Antenna RF642A SIMATIC RF600 antenna RF642A linear (broadband) frequency range 865 to 928 MHz Dimensions 185x 185x 45 mm (LxWxH) IP65, -25 to +75 °C. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
