- Part number
- 6GT2812-0GB08
- Model no
- Antenna RF650A SIMATIC RF600 antenna RF650A; circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH); IP65, -25 to +75 °C.

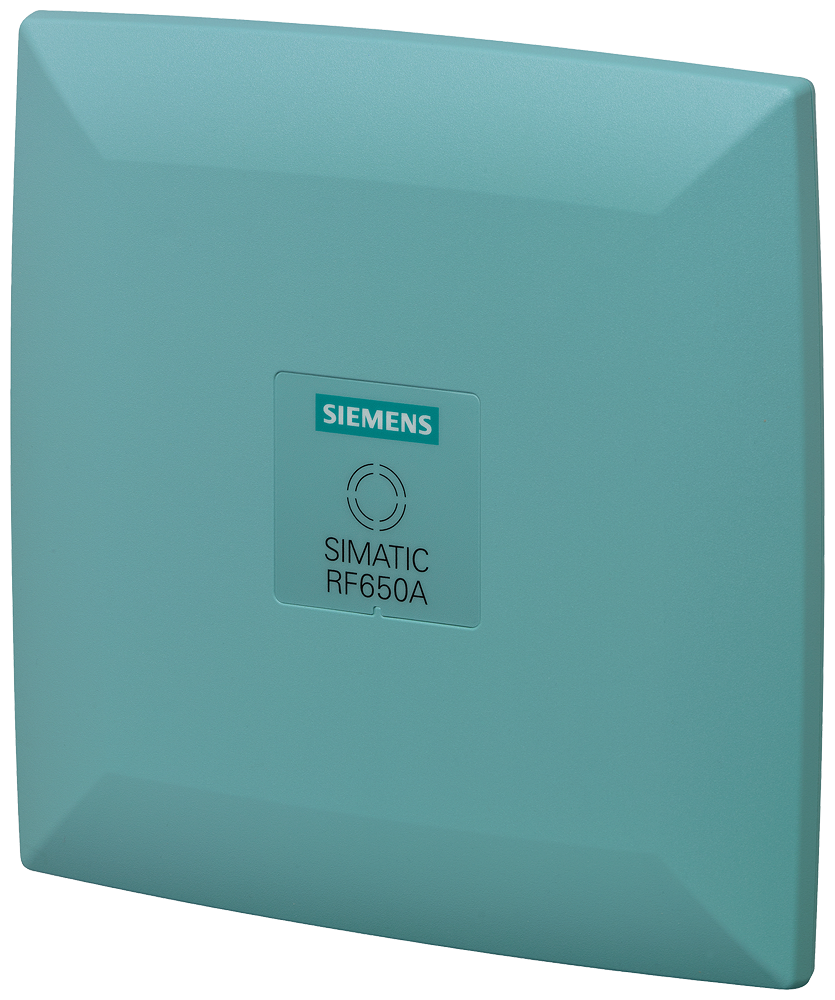

Siemens 6GT2812-0GB08 SIMATIC RF650 RF650A Circular Polarized UHF RFID Antenna
Siemens RF650A circular-polarized UHF RFID antenna, 865-928 MHz, 4 dB gain, IP65.
Description
About the Antenna RF650A SIMATIC RF600 antenna RF650A; circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH); IP65, -25 to +75 °C.
About the Antenna RF650A SIMATIC RF600 antenna RF650A; circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH); IP65, -25 to +75 °C.
The Siemens 6GT2812-0GB08 is a SIMATIC RF650A circular-polarized UHF RFID antenna for the SIMATIC RF600 reader family, covering 865 to 928 MHz with 4 dB gain and a 90-degree horizontal by 76-degree vertical beamwidth. Housed to IP65 in a 198 x 198 x 60 mm Pocan enclosure with an RP-TNC connector, it operates from -25 degrees C to +75 degrees C.
Selection Notes
At 4 dB gain and a wide 90 by 76 degree beamwidth, the RF650A trades reach for coverage area, so it suits close-range portals and tunnels where tags pass at varied angles rather than a long, narrow read corridor. Its IP65 rating covers dust and splash exposure; enclosures or washdown areas with direct high-pressure spray call for the higher-gain, higher-IP antenna in the family instead. The RP-TNC connector matches the antenna ports on the RF600 reader family directly, with cable runs up to 40 m.
Specification
Full specification
General 3
| product type designation | Antenna RF650A SIMATIC RF600 antenna RF650A; circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH); IP65, -25 to +75 °C. |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | SIMATIC RF600 |
Radio frequencies 1
| transmission frequency | 865 ... 928 MHz |
|---|
Electrical data 8
| antenna gain compared to spherical radiator: with circular radiation | 4 dB |
|---|---|
| impedance | 50 Ω |
| polarization | Circular |
| standing wave ratio (VSWR) / maximum | 1.45 |
| radiating angle of the antenna: horizontal | 90° |
| radiating angle of the antenna: vertical | 76° |
| type of electrical connection / of the antenna | RP-TNC |
| design of plug-in connection | male |
Show all 49 specifications ↓ Show less ↑37 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Accessories, Logistics.
Identification 10
| Part number | 6GT2812-0GB08 |
|---|---|
| Type designation | Antenna RF650A SIMATIC RF600 antenna RF650A; circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH); IP65, -25 to +75 °C. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622367599 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 4
| material | Pocan |
|---|---|
| color | Pastel turquoise |
| tightening torque / of the screw for securing the equipment / maximum | 2 N·m |
| mounting distance: relating to metal surfaces / recommended / minimum | 0 m |
Ambient conditions 6
| ambient temperature: during operation | -25 ... +75 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| protection class IP | IP65 |
| shock acceleration | 300 m/s2 |
| vibrational acceleration | 100 m/s2 |
Design, dimensions and weights 5
| width | 198 mm |
|---|---|
| height | 198 mm |
| depth | 60 mm |
| fastening method | 4 screws M4 according to VESA 100, optional with articulated bracket by using antenna mounting kit |
| wire length / of antenna cable | 0 m |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Standards, specifications, approvals 3
| certificate of suitability | CE (according to R&TTE), FCC (Title 47, Part 15.247), cULus |
|---|---|
| certificate of suitability: IECEx | No |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Accessories 1
| accessories | Antenna cables 1 to 40 m |
|---|
Logistics 7
| Net weight | 0.98 kg |
|---|---|
| Package dimensions | 60 × 198 × 198 mm |
| Country of origin | DE |
| Shipping weight | 1.48 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2812-0GB08
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Antenna RF650A SIMATIC RF600 antenna RF650A; circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH); IP65, -25 to +75 °C.
What is the HS code of Antenna RF650A SIMATIC RF600 antenna RF650A; circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH); IP65, -25 to +75 °C. for customs?
The tariff (HS) code on file for Antenna RF650A SIMATIC RF600 antenna RF650A; circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH); IP65, -25 to +75 °C. is 85177100.
What is the EAN of Antenna RF650A SIMATIC RF600 antenna RF650A; circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH); IP65, -25 to +75 °C.?
The EAN (GTIN) of Antenna RF650A SIMATIC RF600 antenna RF650A; circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH); IP65, -25 to +75 °C. is 4047622367599.
Where does Antenna RF650A SIMATIC RF600 antenna RF650A; circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH); IP65, -25 to +75 °C. ship from, and how fast?
Antenna RF650A SIMATIC RF600 antenna RF650A; circular, frequency range 865 up to 928MHz broadband Dimensions 198x 198x 60 mm (LxWxH); IP65, -25 to +75 °C. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
