- Part number
- 6GT2398-1CB00
- Model no
- Antenna ANT 1 RF300/RF200 antenna ANT 1 PVC, IP65, -25...+70 °C, 75x 75x 20 mm, cable length 3 m.
Siemens 6GT2398-1CB00 SIMATIC RF300 Antenna ANT 1 13.56MHz IP67 RFID Antenna
ANT 1 antenna for RF300/RF200/MOBY E, 13.56MHz, M8 connector, IP67, 3m cable.
Description
About the Antenna ANT 1 RF300/RF200 antenna ANT 1 PVC, IP65, -25...+70 °C, 75x 75x 20 mm, cable length 3 m.
About the Antenna ANT 1 RF300/RF200 antenna ANT 1 PVC, IP65, -25...+70 °C, 75x 75x 20 mm, cable length 3 m.

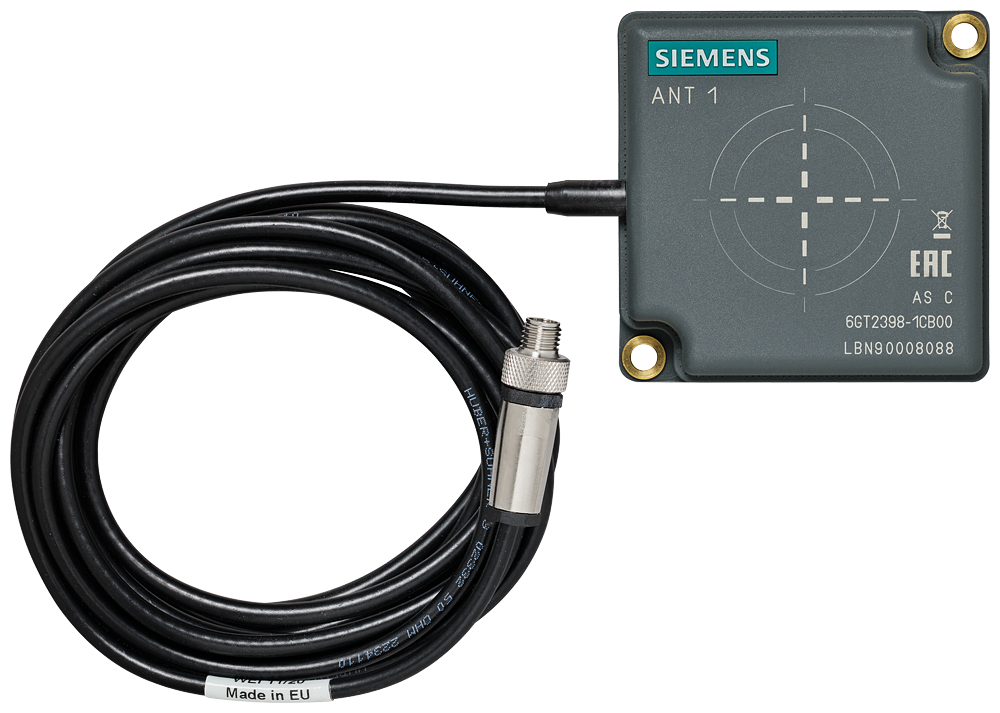

The Siemens 6GT2398-1CB00 Antenna ANT 1 connects to RF300, RF200, and MOBY E readers, operating at the 13.56 MHz frequency common to these systems. It has an M8 4-pin male connector, an IP67-rated PA 12 housing measuring 75 x 75 x 20 mm, and a 3 m integral cable, and it is rated -25 to +70C.
Certifications & Standards
- IECEx
Selection Notes
This ANT 1 antenna suits close-range read zones such as small-parts tracking, where the compact 75 x 75 x 20 mm PA 12 housing fits tight machine frames. Mount it at least 0.02 m from metal surfaces to avoid detuning, and note that Ex-rated use requires pairing with the 6GT2801-4AB10 reader, since the antenna itself carries only that reader's ATEX marking.
Specification
Full specification
General 3
| product type designation | Antenna ANT 1 RF300/RF200 antenna ANT 1 PVC, IP65, -25...+70 °C, 75x 75x 20 mm, cable length 3 m. |
|---|---|
| product brand name | SIMATIC RF |
| suitability for operation | RF300 / RF200 / MOBY E |
Radio frequencies 1
| transmission frequency / rated value | 13.56 MHz |
|---|
Electrical data 2
| type of electrical connection / of the antenna | M8, 4-pin |
|---|---|
| design of plug-in connection | male |
Show all 43 specifications ↓ Show less ↑37 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GT2398-1CB00 |
|---|---|
| Type designation | Antenna ANT 1 RF300/RF200 antenna ANT 1 PVC, IP65, -25...+70 °C, 75x 75x 20 mm, cable length 3 m. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4025515142935 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 4
| material | PA 12 |
|---|---|
| color | Anthracite |
| tightening torque / of the screw for securing the equipment / maximum | 2 N·m |
| mounting distance: relating to metal surfaces / recommended / minimum | 0.02 m |
Ambient conditions 8
| ambient temperature: during operation | -25 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| protection class IP | IP67 |
| resistance to mechanical stress | no bending or torsion permitted |
| shock resistance | according to EN 60721-3-7 Class 7M2 |
| shock acceleration | 500 m/s2 |
| vibrational acceleration | 200 m/s2 |
Design, dimensions and weights 5
| width | 75 mm |
|---|---|
| height | 75 mm |
| depth | 20 mm |
| fastening method | 2 screws M5 |
| wire length / of antenna cable | 3 m |
Standards, specifications, approvals 3
| certificate of suitability | CE, FCC, IC, cULus, Ex approval only together with 6GT2801-4AB10 |
|---|---|
| certificate of suitability: IECEx | Yes |
| certificate of suitability: for IECEx / as marking | the ATEX approval of the connected reader applies |
Logistics 7
| Net weight | 0.283 kg |
|---|---|
| Package dimensions | 75 × 75 × 20 mm |
| Country of origin | DE |
| Shipping weight | 0.783 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GT2398-1CB00
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IECEx
Quick answers
Questions about the Antenna ANT 1 RF300/RF200 antenna ANT 1 PVC, IP65, -25...+70 °C, 75x 75x 20 mm, cable length 3 m.
What is the HS code of Antenna ANT 1 RF300/RF200 antenna ANT 1 PVC, IP65, -25...+70 °C, 75x 75x 20 mm, cable length 3 m. for customs?
The tariff (HS) code on file for Antenna ANT 1 RF300/RF200 antenna ANT 1 PVC, IP65, -25...+70 °C, 75x 75x 20 mm, cable length 3 m. is 85291069.
What is the EAN of Antenna ANT 1 RF300/RF200 antenna ANT 1 PVC, IP65, -25...+70 °C, 75x 75x 20 mm, cable length 3 m.?
The EAN (GTIN) of Antenna ANT 1 RF300/RF200 antenna ANT 1 PVC, IP65, -25...+70 °C, 75x 75x 20 mm, cable length 3 m. is 4025515142935.
Where does Antenna ANT 1 RF300/RF200 antenna ANT 1 PVC, IP65, -25...+70 °C, 75x 75x 20 mm, cable length 3 m. ship from, and how fast?
Antenna ANT 1 RF300/RF200 antenna ANT 1 PVC, IP65, -25...+70 °C, 75x 75x 20 mm, cable length 3 m. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
