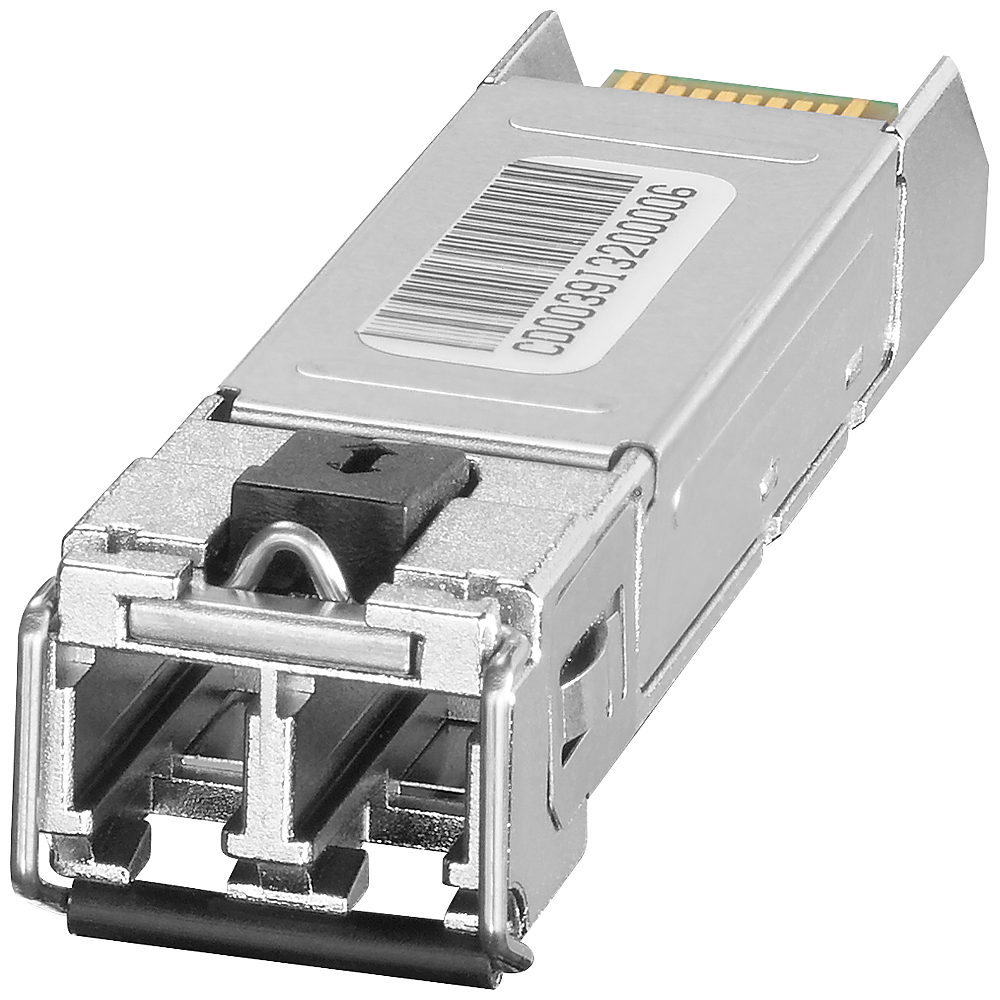

Siemens 6GK5993-1AV00-8AA0 SCALANCE X SFP993-1LH 10G Single-Mode LC SFP Transceiver Module

The Siemens 6GK5993-1AV00-8AA0 (SFP993-1LH) is a SCALANCE X plug-in SFP transceiver with one 10 Gbit/s LC port for single-mode fiber, reaching up to 40 km at a 1550 nm wavelength using the 10GBASE-ER transmission method. It operates from -40 to 85C and latches into the SFP cage of a compatible SCALANCE X switch or media module.

Technical Specifications

Certifications & Standards

• CE
• C-Tick
• BV
• EPD

Selection Notes

SFP993-1LH is the long-haul single-mode transceiver in the SFP993 family: choose it once the fiber run exceeds the 10 km limit of the standard single-mode variant, up to a 40 km reach. Its higher 4.5 dB minimum link attenuation means it needs a fiber-optic budget with enough loss in the path, unlike the shorter-reach variants, which tolerate near-zero attenuation. Its -4.7 to 4 dBm output and -14.1 dBm receiver sensitivity set the practical loss budget, so verify connector and splice losses against these figures before specifying the run.
