- Part number
- 6GK5993-1AU00-8AA0
- Model no
- SFP993-1LD SCALANCE X accessory; Plug-in transceiver SFP993-1LD; 1x 10000 Mbit/s LC port, optical; single-mode optical up to max. 10 km.

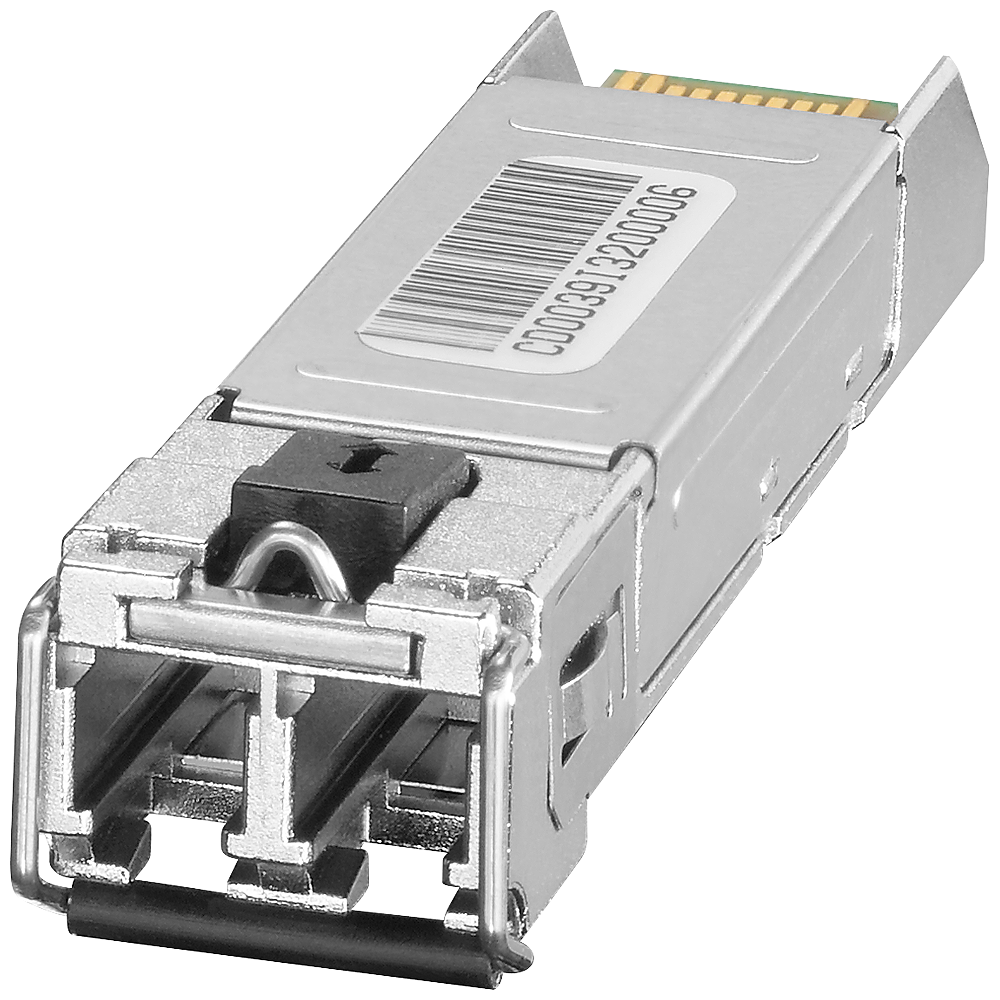

SCALANCE XSiemens 6GK5993-1AU00-8AA0 SCALANCE X SFP993-1LD 10G Single-Mode LC SFP Transceiver Module
SCALANCE X SFP993-1LD transceiver, 10 Gbit/s LC port, single-mode, up to 10km.
Description
About the SFP993-1LD SCALANCE X accessory; Plug-in transceiver SFP993-1LD; 1x 10000 Mbit/s LC port, optical; single-mode optical up to max. 10 km.
About the SFP993-1LD SCALANCE X accessory; Plug-in transceiver SFP993-1LD; 1x 10000 Mbit/s LC port, optical; single-mode optical up to max. 10 km.
The Siemens 6GK5993-1AU00-8AA0 (SFP993-1LD) is a SCALANCE X plug-in SFP transceiver with one 10 Gbit/s LC port for single-mode fiber, reaching up to 10 km at a 1310 nm wavelength using the 10GBASE-LR transmission method. It operates from -40 to 85C and latches into the SFP cage of a compatible SCALANCE X switch or media module.
Certifications & Standards
- CE
- C-Tick
- BV
- EPD
Selection Notes
SFP993-1LD is the 10 km single-mode transceiver in the SFP993 family: choose it over the multimode variant once the fiber run exceeds a few hundred meters, and over the 40 km variant when the link distance stays within 10 km and the lower transmit power budget is sufficient. Its -8.2 to 0.5 dBm output and -12.6 dBm receiver sensitivity set the practical loss budget, so verify connector and splice losses against these figures before specifying the run. It plugs into any SFP cage on a compatible SCALANCE X switch or SFP media module.
Specification
Full specification
General 2
| product type designation | SFP993-1LD SCALANCE X accessory; Plug-in transceiver SFP993-1LD; 1x 10000 Mbit/s LC port, optical; single-mode optical up to max. 10 km. |
|---|---|
| product brand name | SCALANCE |
Interfaces 11
| number of electrical/optical connections / for network components or terminal equipment / maximum | 1 |
|---|---|
| number of optical interfaces / for network components or terminal equipment / maximum | 1 |
| number of 10 Gbit/s LC ports (LX) | 1 |
| design of the optical interface / for network components or terminal equipment | LC |
| wavelength / of the optical interface | 1310 nm; Single-mode |
| connectable optical power relative to 1 mW: of the transmitter output / minimum | -8.2 dB |
| connectable optical power relative to 1 mW: of the receiver input / maximum | 0.5 dB |
| optical sensitivity relating to 1 mW / of the receiver input / minimum | -12.6 dB |
| attenuation factor / of the FOC transmission link / minimum necessary | 0 dB |
| range / at the optical interface / depending on the optical fiber used | 0 ... 10 km |
| transmission method / for connection type 1 | 10GBASE-LR |
Ambient conditions 5
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Show all 57 specifications ↓ Show less ↑39 more values in Identification, Design, dimensions and weights, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK5993-1AU00-8AA0 |
|---|---|
| Type designation | SFP993-1LD SCALANCE X accessory; Plug-in transceiver SFP993-1LD; 1x 10000 Mbit/s LC port, optical; single-mode optical up to max. 10 km. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169232388 |
| ETIM class | EC003628 |
| eCl@ss | 19170302 |
Design, dimensions and weights 5
| design | SFP Module |
|---|---|
| width | 14 mm |
| height | 9 mm |
| depth | 57 mm |
| fastening method | latched |
Standards, specifications, approvals 12
| standard: for safety / from CSA and UL | UL 62368-1 and CAN/CSA C22.2 No. 62368-1:19 |
|---|---|
| standard: for emitted interference | EN 61000-6-4 (Class A) |
| standard: for interference immunity | EN 61000-6-2 |
| certificate of suitability | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| CE marking | Yes |
| C-Tick | Yes |
| KC approval | No |
| CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
| CCC / for hazardous zone according to GB standard / as marking | Ex nA IIC T4 Gc |
| E1 approval | No |
| Marine classification association: French marine classification society (BV) | Yes |
| MTBF | 850 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 24.89 kg |
| global warming potential [CO2 eq]: during manufacturing | 1.7 kg |
| global warming potential [CO2 eq]: during operation | 23.18 kg |
| global warming potential [CO2 eq]: after end of life | 0.01 kg |
Logistics 7
| Net weight | 0.065 kg |
|---|---|
| Package dimensions | 75 × 30 × 110 mm |
| Country of origin | Malaysia |
| Shipping weight | 0.565 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5993-1AU00-8AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- C-Tick
- French marine classification society (BV)
- Environmental Product Declaration
Quick answers
Questions about the SFP993-1LD SCALANCE X accessory; Plug-in transceiver SFP993-1LD; 1x 10000 Mbit/s LC port, optical; single-mode optical up to max. 10 km.
What is the HS code of SFP993-1LD SCALANCE X accessory; Plug-in transceiver SFP993-1LD; 1x 10000 Mbit/s LC port, optical; single-mode optical up to max. 10 km. for customs?
The tariff (HS) code on file for SFP993-1LD SCALANCE X accessory; Plug-in transceiver SFP993-1LD; 1x 10000 Mbit/s LC port, optical; single-mode optical up to max. 10 km. is 85176200.
What is the EAN of SFP993-1LD SCALANCE X accessory; Plug-in transceiver SFP993-1LD; 1x 10000 Mbit/s LC port, optical; single-mode optical up to max. 10 km.?
The EAN (GTIN) of SFP993-1LD SCALANCE X accessory; Plug-in transceiver SFP993-1LD; 1x 10000 Mbit/s LC port, optical; single-mode optical up to max. 10 km. is 4019169232388.
Where does SFP993-1LD SCALANCE X accessory; Plug-in transceiver SFP993-1LD; 1x 10000 Mbit/s LC port, optical; single-mode optical up to max. 10 km. ship from, and how fast?
SFP993-1LD SCALANCE X accessory; Plug-in transceiver SFP993-1LD; 1x 10000 Mbit/s LC port, optical; single-mode optical up to max. 10 km. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
