- Part number
- 6GK5993-1AT00-8AA0
- Model no
- SFP993-1 SCALANCE X accessory; Plug-in transceiver SFP993-1; 1x 10000 Mbps LC port, optical; multimode glass up to max. 550 m (with OM4 fiber)
SCALANCE XSiemens 6GK5993-1AT00-8AA0 SCALANCE X SFP993-1 10G Multimode LC SFP Transceiver Module
SCALANCE X SFP993-1 transceiver, 10 Gbit/s LC port, multimode, up to 550m (OM4).
Description
About the SFP993-1 SCALANCE X accessory; Plug-in transceiver SFP993-1; 1x 10000 Mbps LC port, optical; multimode glass up to max. 550 m (with OM4 fiber)
About the SFP993-1 SCALANCE X accessory; Plug-in transceiver SFP993-1; 1x 10000 Mbps LC port, optical; multimode glass up to max. 550 m (with OM4 fiber)

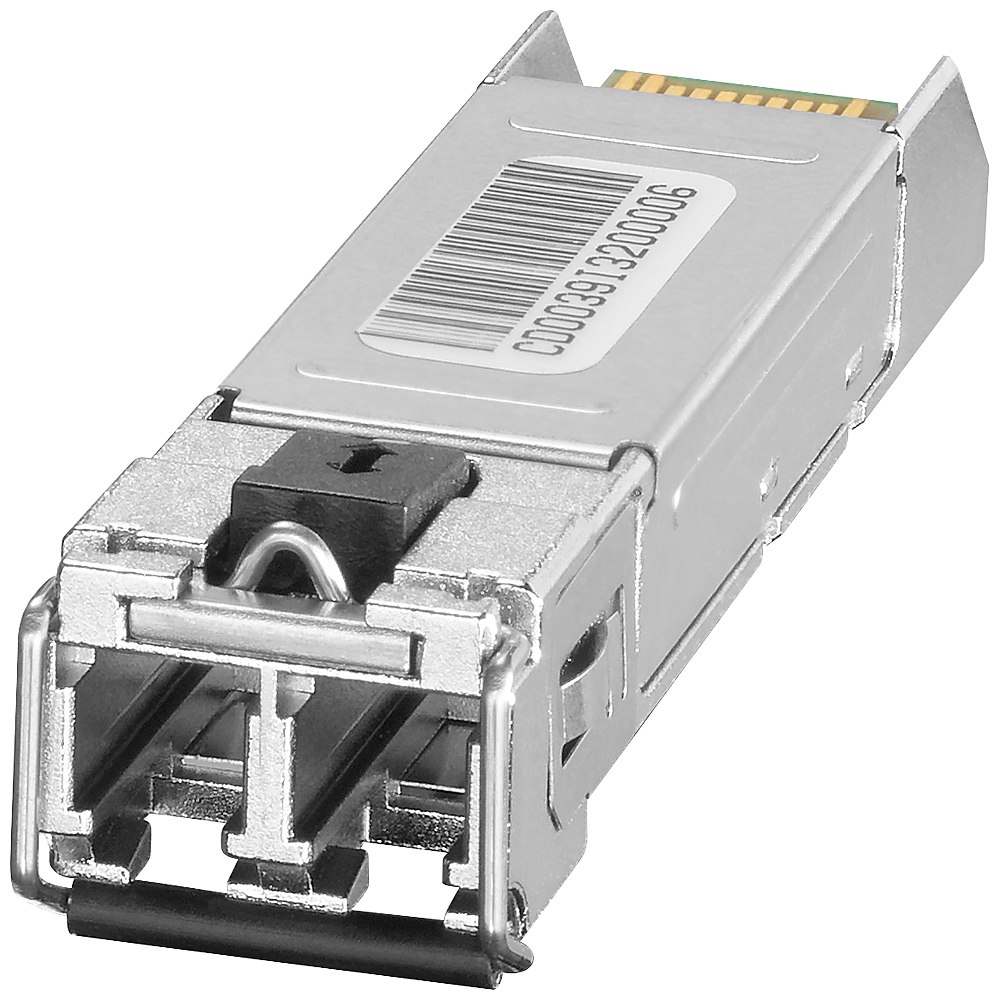

The Siemens 6GK5993-1AT00-8AA0 (SFP993-1) is a SCALANCE X plug-in SFP transceiver with one 10 Gbit/s LC port for multimode fiber, reaching up to 550 m over OM4 glass at an 850 nm wavelength using the 10GBASE-SR transmission method. It operates from -40 to 85C and latches into the SFP cage of a compatible SCALANCE X switch or media module.
Certifications & Standards
- CE
- C-Tick
- BV
- EPD
Selection Notes
SFP993-1 is the short-reach multimode transceiver in the SFP993 family: choose it for fiber runs up to 550 m on OM4 cable rather than single-mode variants, which are needed for the longer link distances. Its -5 to -1 dBm output and -11 dBm receiver sensitivity set the practical loss budget for the link, so verify connector and splice losses against these figures before specifying the run. It plugs into any SFP cage on a compatible SCALANCE X switch or SFP media module.
Specification
Full specification
General 2
| product type designation | SFP993-1 SCALANCE X accessory; Plug-in transceiver SFP993-1; 1x 10000 Mbps LC port, optical; multimode glass up to max. 550 m (with OM4 fiber) |
|---|---|
| product brand name | SCALANCE |
Interfaces 11
| number of electrical/optical connections / for network components or terminal equipment / maximum | 1 |
|---|---|
| number of optical interfaces / for network components or terminal equipment / maximum | 1 |
| number of 10 Gbit/s LC ports (SX) | 1 |
| design of the optical interface / for network components or terminal equipment | LC |
| wavelength / of the optical interface | 850 nm; Multi-mode |
| connectable optical power relative to 1 mW: of the transmitter output / minimum | -5 dB |
| connectable optical power relative to 1 mW: of the receiver input / maximum | -1 dB |
| optical sensitivity relating to 1 mW / of the receiver input / minimum | -11 dB |
| attenuation factor / of the FOC transmission link / minimum necessary | 0 dB |
| range / at the optical interface / depending on the optical fiber used | 0.3 ... 0.55 km |
| transmission method / for connection type 1 | 10GBASE-SR |
Ambient conditions 5
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Show all 57 specifications ↓ Show less ↑39 more values in Identification, Design, dimensions and weights, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK5993-1AT00-8AA0 |
|---|---|
| Type designation | SFP993-1 SCALANCE X accessory; Plug-in transceiver SFP993-1; 1x 10000 Mbps LC port, optical; multimode glass up to max. 550 m (with OM4 fiber) |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169232371 |
| ETIM class | EC003628 |
| eCl@ss | 19170302 |
Design, dimensions and weights 5
| design | SFP Module |
|---|---|
| width | 14 mm |
| height | 9 mm |
| depth | 57 mm |
| fastening method | latched |
Standards, specifications, approvals 12
| standard: for safety / from CSA and UL | UL 62368-1 and CAN/CSA C22.2 No. 62368-1:19 |
|---|---|
| standard: for emitted interference | EN 61000-6-4 (Class A) |
| standard: for interference immunity | EN 61000-6-2 |
| certificate of suitability | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| CE marking | Yes |
| C-Tick | Yes |
| KC approval | No |
| CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
| CCC / for hazardous zone according to GB standard / as marking | Ex nA IIC T4 Gc |
| E1 approval | No |
| Marine classification association: French marine classification society (BV) | Yes |
| MTBF | 1100 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 19.96 kg |
| global warming potential [CO2 eq]: during manufacturing | 1.7 kg |
| global warming potential [CO2 eq]: during operation | 18.25 kg |
| global warming potential [CO2 eq]: after end of life | 0.01 kg |
Logistics 7
| Net weight | 0.068 kg |
|---|---|
| Package dimensions | 75 × 30 × 100 mm |
| Country of origin | Malaysia |
| Shipping weight | 0.568 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5993-1AT00-8AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- C-Tick
- French marine classification society (BV)
- Environmental Product Declaration
Quick answers
Questions about the SFP993-1 SCALANCE X accessory; Plug-in transceiver SFP993-1; 1x 10000 Mbps LC port, optical; multimode glass up to max. 550 m (with OM4 fiber)
What is the HS code of SFP993-1 SCALANCE X accessory; Plug-in transceiver SFP993-1; 1x 10000 Mbps LC port, optical; multimode glass up to max. 550 m (with OM4 fiber) for customs?
The tariff (HS) code on file for SFP993-1 SCALANCE X accessory; Plug-in transceiver SFP993-1; 1x 10000 Mbps LC port, optical; multimode glass up to max. 550 m (with OM4 fiber) is 85176200.
What is the EAN of SFP993-1 SCALANCE X accessory; Plug-in transceiver SFP993-1; 1x 10000 Mbps LC port, optical; multimode glass up to max. 550 m (with OM4 fiber)?
The EAN (GTIN) of SFP993-1 SCALANCE X accessory; Plug-in transceiver SFP993-1; 1x 10000 Mbps LC port, optical; multimode glass up to max. 550 m (with OM4 fiber) is 4019169232371.
Where does SFP993-1 SCALANCE X accessory; Plug-in transceiver SFP993-1; 1x 10000 Mbps LC port, optical; multimode glass up to max. 550 m (with OM4 fiber) ship from, and how fast?
SFP993-1 SCALANCE X accessory; Plug-in transceiver SFP993-1; 1x 10000 Mbps LC port, optical; multimode glass up to max. 550 m (with OM4 fiber) ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
