- Part number
- 6GK5992-4SA00-8AA0
- Model no
- MM992-4CU SCALANCE X accessory; Media module MM992-4CU; 4x 1000 Mbit/s RJ45 ports, electrical; without securing collar.
Siemens has announced the end of 6GK5992-4SA00-8AA0
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.
SCALANCE XSiemens 6GK5992-4SA00-8AA0 SCALANCE X MM992-4CU 4-Port RJ45 Media Module Networking Accessory
SCALANCE X MM992-4CU media module, 4x RJ45 ports, 1000 Mbit/s, no collar, IP20.
Description
About the MM992-4CU SCALANCE X accessory; Media module MM992-4CU; 4x 1000 Mbit/s RJ45 ports, electrical; without securing collar.
About the MM992-4CU SCALANCE X accessory; Media module MM992-4CU; 4x 1000 Mbit/s RJ45 ports, electrical; without securing collar.

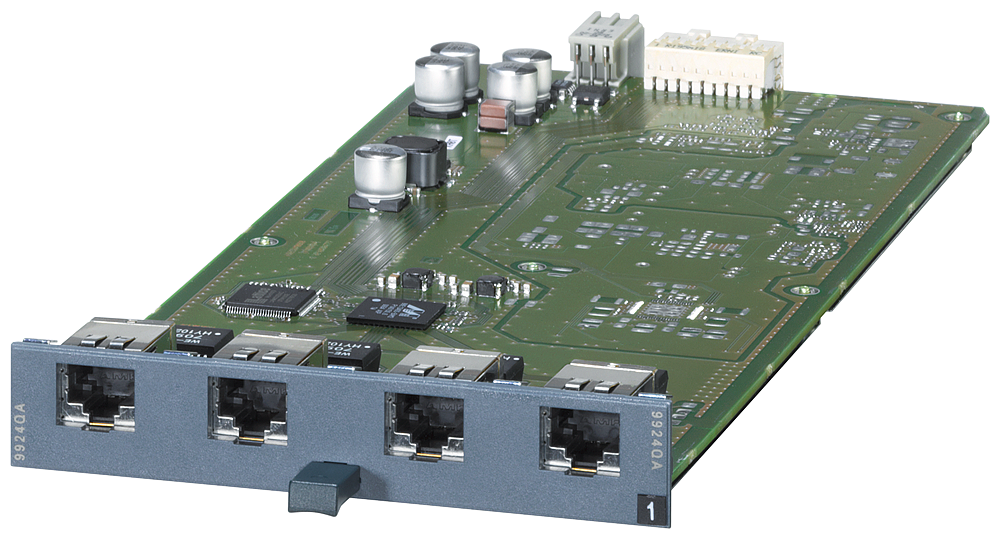

The Siemens 6GK5992-4SA00-8AA0 (MM992-4CU) is a SCALANCE X media module that adds four RJ45 copper ports at 1000 Mbit/s to a modular SCALANCE X switch, without a securing collar on the connectors. It latches into the switch's media module slot, operates from 0 to 60C, and carries an IP20 rating for cabinet installation.
Certifications & Standards
- CE
- C-Tick
- KC
- BV
- EPD
Selection Notes
MM992-4CU is the RJ45 copper variant without a securing collar: pick it over the collared version when standard RJ45 plugs are acceptable and the collar's extra retention is not needed, or over the SFP variant when the uplink runs on twisted-pair cable. It supplies fixed copper ports at up to 1000 Mbit/s, so no separate transceiver is needed or can be swapped in. It occupies one media module slot on a modular SCALANCE X switch, so available slot count on the target chassis limits how many can be fitted per unit.
Specification
Full specification
General 2
| product type designation | MM992-4CU SCALANCE X accessory; Media module MM992-4CU; 4x 1000 Mbit/s RJ45 ports, electrical; without securing collar. |
|---|---|
| product brand name | SCALANCE |
Interfaces 4
| number of electrical/optical connections / for network components or terminal equipment / maximum | 4 |
|---|---|
| number of electrical connections: for network components or terminal equipment / maximum | 4 |
| number of 10/100/1000 Mbit/s RJ45 ports | 4 |
| type of electrical connection: for network components or terminal equipment | RJ45 |
Ambient conditions 5
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Show all 52 specifications ↓ Show less ↑41 more values in Identification, Design, dimensions and weights, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, China RoHS Declaration of Con- Manufacturer Declara-, Logistics.
Identification 10
| Part number | 6GK5992-4SA00-8AA0 |
|---|---|
| Type designation | MM992-4CU SCALANCE X accessory; Media module MM992-4CU; 4x 1000 Mbit/s RJ45 ports, electrical; without securing collar. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4019169233125 |
| ETIM class | EC001099 |
| eCl@ss | 19170301 |
Design, dimensions and weights 6
| design | Media module |
|---|---|
| width | 120.3 mm |
| height | 22.3 mm |
| depth | 275.5 mm |
| fastening method | latched |
| installation in media module slot | Yes |
Standards, specifications, approvals 11
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
|---|---|
| standard: for emitted interference | EN 61000-6-4 (Class A) |
| standard: for interference immunity | EN 61000-6-2 |
| certificate of suitability | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| CE marking | Yes |
| C-Tick | Yes |
| KC approval | Yes |
| CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
| CCC / for hazardous zone according to GB standard / as marking | Ex nA IIC T4 Gc |
| E1 approval | No |
| Marine classification association: French marine classification society (BV) | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 102.1 kg |
| global warming potential [CO2 eq]: during manufacturing | 10.1 kg |
| global warming potential [CO2 eq]: during operation | 91.9 kg |
| global warming potential [CO2 eq]: after end of life | 0.1 kg |
China RoHS Declaration of Con- Manufacturer Declara- 2
| formity tion | For use in hazard- |
|---|---|
| General Product Approval EMV China RoHS | ous locations |
Logistics 7
| Net weight | 0.466 kg |
|---|---|
| Package dimensions | 75 × 30 × 100 mm |
| Country of origin | DE |
| Shipping weight | 0.966 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5992-4SA00-8AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- C-Tick
- KC approval
- French marine classification society (BV)
- Environmental Product Declaration
Quick answers
Questions about the MM992-4CU SCALANCE X accessory; Media module MM992-4CU; 4x 1000 Mbit/s RJ45 ports, electrical; without securing collar.
What is the HS code of MM992-4CU SCALANCE X accessory; Media module MM992-4CU; 4x 1000 Mbit/s RJ45 ports, electrical; without securing collar. for customs?
The tariff (HS) code on file for MM992-4CU SCALANCE X accessory; Media module MM992-4CU; 4x 1000 Mbit/s RJ45 ports, electrical; without securing collar. is 85176200.
What is the EAN of MM992-4CU SCALANCE X accessory; Media module MM992-4CU; 4x 1000 Mbit/s RJ45 ports, electrical; without securing collar.?
The EAN (GTIN) of MM992-4CU SCALANCE X accessory; Media module MM992-4CU; 4x 1000 Mbit/s RJ45 ports, electrical; without securing collar. is 4019169233125.
Where does MM992-4CU SCALANCE X accessory; Media module MM992-4CU; 4x 1000 Mbit/s RJ45 ports, electrical; without securing collar. ship from, and how fast?
MM992-4CU SCALANCE X accessory; Media module MM992-4CU; 4x 1000 Mbit/s RJ45 ports, electrical; without securing collar. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
