- Part number
- 6GK5992-4GA00-8AA0
- Model no
- MM992-4CUC SCALANCE X accessory; Media module MM992-4CUC; 4x 1000 Mbit/s RJ45 ports, electrical; with securing collar.
Siemens has announced the end of 6GK5992-4GA00-8AA0
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.
SCALANCE XSiemens 6GK5992-4GA00-8AA0 SCALANCE X MM992-4CUC 4-Port RJ45 Media Module Networking Accessory
SCALANCE X MM992-4CUC media module, 4x RJ45 ports, 1000 Mbit/s, securing collar, IP20.
Description
About the MM992-4CUC SCALANCE X accessory; Media module MM992-4CUC; 4x 1000 Mbit/s RJ45 ports, electrical; with securing collar.
About the MM992-4CUC SCALANCE X accessory; Media module MM992-4CUC; 4x 1000 Mbit/s RJ45 ports, electrical; with securing collar.

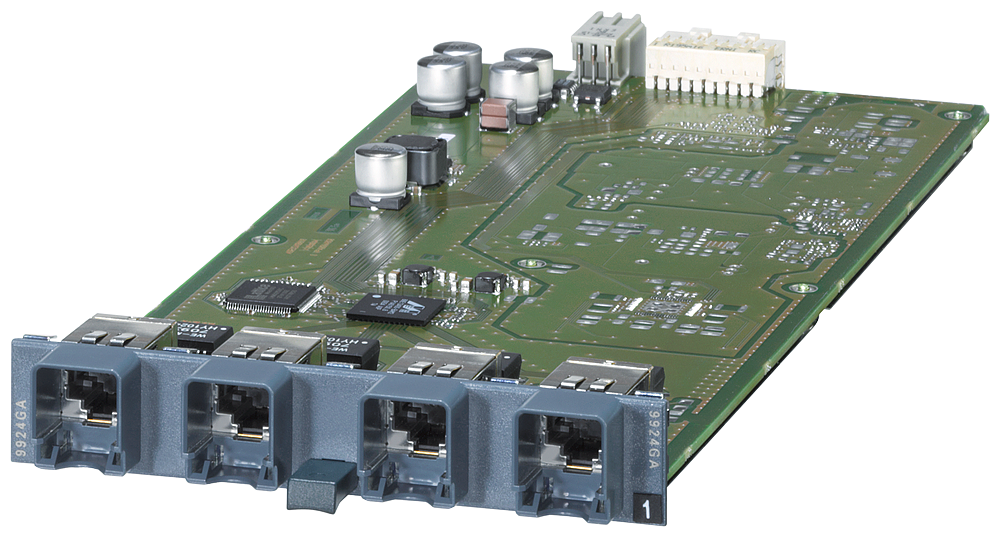

The Siemens 6GK5992-4GA00-8AA0 (MM992-4CUC) is a SCALANCE X media module that adds four RJ45 copper ports at 1000 Mbit/s to a modular SCALANCE X switch, with a securing collar for a locked cable connection. It latches into the switch's media module slot, operates from 0 to 60C, and carries an IP20 rating for cabinet installation.
Certifications & Standards
- CE
- C-Tick
- KC
- BV
- EPD
Selection Notes
MM992-4CUC is the RJ45 copper variant with a securing collar: pick it over the SFP variant when the uplink runs on twisted-pair cable and the installation needs a locked, vibration-resistant connector rather than a standard RJ45 plug. It supplies fixed copper ports at up to 1000 Mbit/s, so no separate transceiver is needed or can be swapped in. It occupies one media module slot on a modular SCALANCE X switch, so available slot count on the target chassis limits how many can be fitted per unit.
Specification
Full specification
General 2
| product type designation | MM992-4CUC SCALANCE X accessory; Media module MM992-4CUC; 4x 1000 Mbit/s RJ45 ports, electrical; with securing collar. |
|---|---|
| product brand name | SCALANCE |
Interfaces 4
| number of electrical/optical connections / for network components or terminal equipment / maximum | 4 |
|---|---|
| number of electrical connections: for network components or terminal equipment / maximum | 4 |
| number of 10/100/1000 Mbit/s RJ45 ports | 4 |
| type of electrical connection: for network components or terminal equipment | RJ45 |
Ambient conditions 5
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Show all 52 specifications ↓ Show less ↑41 more values in Identification, Design, dimensions and weights, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Declaration of Con- China RoHS Manufacturer Declara-, Logistics.
Identification 10
| Part number | 6GK5992-4GA00-8AA0 |
|---|---|
| Type designation | MM992-4CUC SCALANCE X accessory; Media module MM992-4CUC; 4x 1000 Mbit/s RJ45 ports, electrical; with securing collar. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4019169233118 |
| ETIM class | EC001099 |
| eCl@ss | 19170301 |
Design, dimensions and weights 6
| design | Media module |
|---|---|
| width | 120.3 mm |
| height | 22.3 mm |
| depth | 275.5 mm |
| fastening method | latched |
| installation in media module slot | Yes |
Standards, specifications, approvals 11
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
|---|---|
| standard: for emitted interference | EN 61000-6-4 (Class A) |
| standard: for interference immunity | EN 61000-6-2 |
| certificate of suitability | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| CE marking | Yes |
| C-Tick | Yes |
| KC approval | Yes |
| CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
| CCC / for hazardous zone according to GB standard / as marking | Ex nA IIC T4 Gc |
| E1 approval | No |
| Marine classification association: French marine classification society (BV) | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 102.1 kg |
| global warming potential [CO2 eq]: during manufacturing | 10.1 kg |
| global warming potential [CO2 eq]: during operation | 91.9 kg |
| global warming potential [CO2 eq]: after end of life | 0.1 kg |
Declaration of Con- China RoHS Manufacturer Declara- 2
| formity tion | For use in hazard- |
|---|---|
| General Product Approval EMV China RoHS | ous locations |
Logistics 7
| Net weight | 0.474 kg |
|---|---|
| Package dimensions | 58 × 72 × 90 mm |
| Country of origin | DE |
| Shipping weight | 0.974 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5992-4GA00-8AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- C-Tick
- KC approval
- French marine classification society (BV)
- Environmental Product Declaration
Quick answers
Questions about the MM992-4CUC SCALANCE X accessory; Media module MM992-4CUC; 4x 1000 Mbit/s RJ45 ports, electrical; with securing collar.
What is the HS code of MM992-4CUC SCALANCE X accessory; Media module MM992-4CUC; 4x 1000 Mbit/s RJ45 ports, electrical; with securing collar. for customs?
The tariff (HS) code on file for MM992-4CUC SCALANCE X accessory; Media module MM992-4CUC; 4x 1000 Mbit/s RJ45 ports, electrical; with securing collar. is 85176200.
What is the EAN of MM992-4CUC SCALANCE X accessory; Media module MM992-4CUC; 4x 1000 Mbit/s RJ45 ports, electrical; with securing collar.?
The EAN (GTIN) of MM992-4CUC SCALANCE X accessory; Media module MM992-4CUC; 4x 1000 Mbit/s RJ45 ports, electrical; with securing collar. is 4019169233118.
Where does MM992-4CUC SCALANCE X accessory; Media module MM992-4CUC; 4x 1000 Mbit/s RJ45 ports, electrical; with securing collar. ship from, and how fast?
MM992-4CUC SCALANCE X accessory; Media module MM992-4CUC; 4x 1000 Mbit/s RJ45 ports, electrical; with securing collar. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
