- Part number
- 6GK5992-4AS00-8AA0
- Model no
- MM992-4SFP SCALANCE X accessory; Media module MM992-4SFP; 4x 100/1000 Mbit/s for SFP plug-in transceiver.
Siemens has announced the end of 6GK5992-4AS00-8AA0
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.
SCALANCE XSiemens 6GK5992-4AS00-8AA0 SCALANCE X MM992-4SFP 4-Port SFP Media Module Networking Accessory
SCALANCE X MM992-4SFP media module, 4x SFP slots, 100/1000 Mbit/s, IP20.
Description
About the MM992-4SFP SCALANCE X accessory; Media module MM992-4SFP; 4x 100/1000 Mbit/s for SFP plug-in transceiver.
About the MM992-4SFP SCALANCE X accessory; Media module MM992-4SFP; 4x 100/1000 Mbit/s for SFP plug-in transceiver.

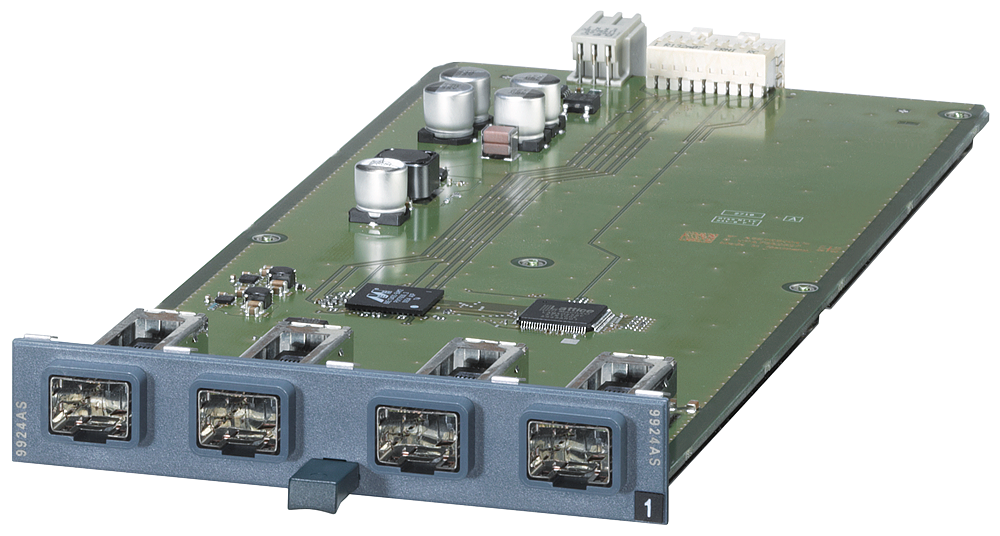

The Siemens 6GK5992-4AS00-8AA0 (MM992-4SFP) is a SCALANCE X media module that adds four SFP slots for 100 or 1000 Mbit/s plug-in transceivers, letting a modular SCALANCE X switch take optical or additional copper uplinks. It latches into the switch's media module slot, operates from 0 to 60C, and carries an IP20 rating for cabinet installation.
Certifications & Standards
- CE
- C-Tick
- KC
- BV
- EPD
Selection Notes
MM992-4SFP is the SFP variant of this media module family: pick it over the RJ45 copper variants when the uplink needs optical fiber or when transceiver types must be swapped without rewiring copper runs. It supplies slots only, SFP transceivers are ordered separately, so match the transceiver's rated distance and fiber type to the actual run. It occupies one media module slot on a modular SCALANCE X switch, so available slot count on the target chassis limits how many can be fitted per unit.
Specification
Full specification
General 2
| product type designation | MM992-4SFP SCALANCE X accessory; Media module MM992-4SFP; 4x 100/1000 Mbit/s for SFP plug-in transceiver. |
|---|---|
| product brand name | SCALANCE |
Interfaces 2
| number of electrical/optical connections / for network components or terminal equipment / maximum | 4 |
|---|---|
| number of electrical connections: for SFP / plug-in | 4 |
Ambient conditions 5
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Show all 50 specifications ↓ Show less ↑41 more values in Identification, Design, dimensions and weights, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Declaration of Con- China RoHS Manufacturer Declara-, Logistics.
Identification 10
| Part number | 6GK5992-4AS00-8AA0 |
|---|---|
| Type designation | MM992-4SFP SCALANCE X accessory; Media module MM992-4SFP; 4x 100/1000 Mbit/s for SFP plug-in transceiver. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4019169229777 |
| ETIM class | EC001099 |
| eCl@ss | 19170301 |
Design, dimensions and weights 6
| design | Media module |
|---|---|
| width | 120.3 mm |
| height | 22.3 mm |
| depth | 275.5 mm |
| fastening method | latched |
| installation in media module slot | Yes |
Standards, specifications, approvals 11
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
|---|---|
| standard: for emitted interference | EN 61000-6-4 (Class A) |
| standard: for interference immunity | EN 61000-6-2 |
| certificate of suitability | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| CE marking | Yes |
| C-Tick | Yes |
| KC approval | Yes |
| CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
| CCC / for hazardous zone according to GB standard / as marking | Ex nA IIC T4 Gc |
| E1 approval | No |
| Marine classification association: French marine classification society (BV) | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 23.99 kg |
| global warming potential [CO2 eq]: during manufacturing | 10.1 kg |
| global warming potential [CO2 eq]: during operation | 13.79 kg |
| global warming potential [CO2 eq]: after end of life | 0.1 kg |
Declaration of Con- China RoHS Manufacturer Declara- 2
| formity tion | For use in hazard- |
|---|---|
| General Product Approval EMV China RoHS | ous locations |
Logistics 7
| Net weight | 0.44 kg |
|---|---|
| Package dimensions | 58 × 72 × 90 mm |
| Country of origin | DE |
| Shipping weight | 0.94 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5992-4AS00-8AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- C-Tick
- KC approval
- French marine classification society (BV)
- Environmental Product Declaration
Quick answers
Questions about the MM992-4SFP SCALANCE X accessory; Media module MM992-4SFP; 4x 100/1000 Mbit/s for SFP plug-in transceiver.
What is the HS code of MM992-4SFP SCALANCE X accessory; Media module MM992-4SFP; 4x 100/1000 Mbit/s for SFP plug-in transceiver. for customs?
The tariff (HS) code on file for MM992-4SFP SCALANCE X accessory; Media module MM992-4SFP; 4x 100/1000 Mbit/s for SFP plug-in transceiver. is 85176200.
What is the EAN of MM992-4SFP SCALANCE X accessory; Media module MM992-4SFP; 4x 100/1000 Mbit/s for SFP plug-in transceiver.?
The EAN (GTIN) of MM992-4SFP SCALANCE X accessory; Media module MM992-4SFP; 4x 100/1000 Mbit/s for SFP plug-in transceiver. is 4019169229777.
Where does MM992-4SFP SCALANCE X accessory; Media module MM992-4SFP; 4x 100/1000 Mbit/s for SFP plug-in transceiver. ship from, and how fast?
MM992-4SFP SCALANCE X accessory; Media module MM992-4SFP; 4x 100/1000 Mbit/s for SFP plug-in transceiver. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
