- Part number
- 6GK5992-1AN00-8AA0
- Model no
- SFP992-1LH SCALANCE X accessory, Plug-in transceiver SFP992-1LH 1x 1000 Mbit/s LC port, optical single-mode up to max. 40 km.
- CE

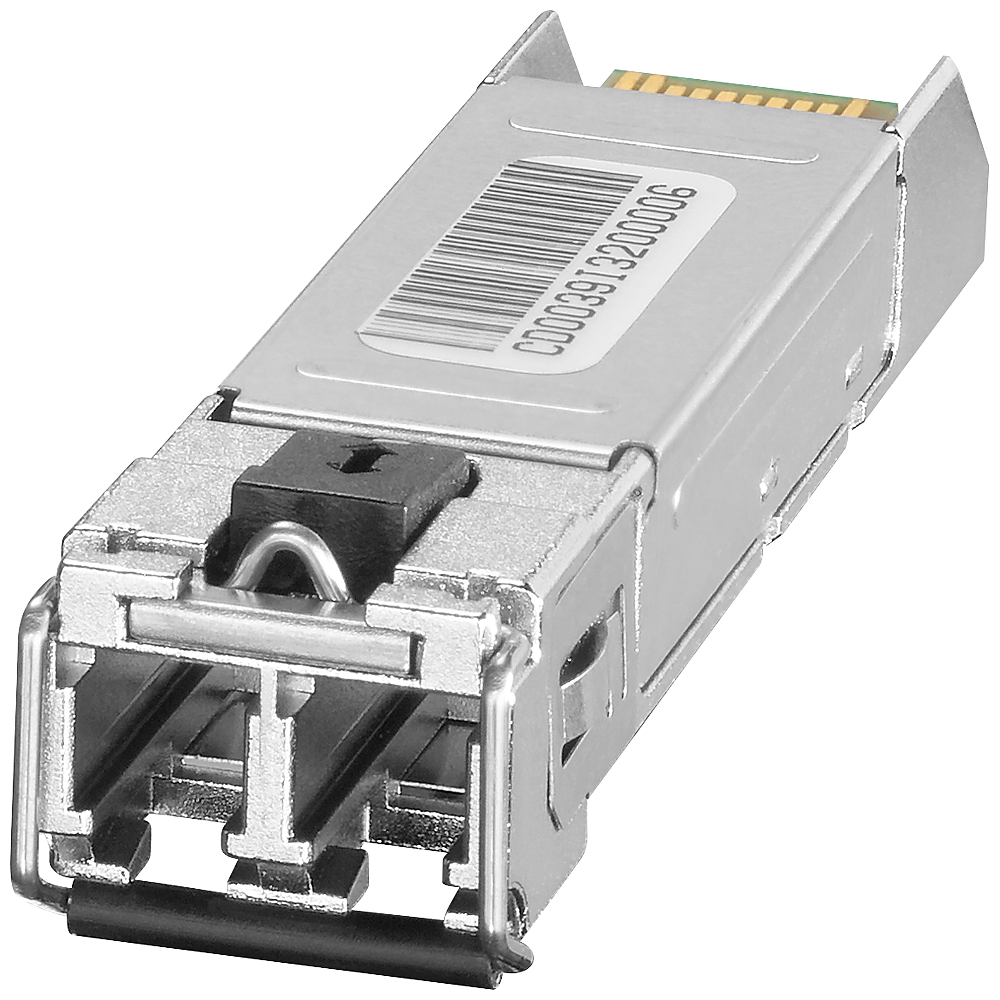

SCALANCE XSiemens 6GK5992-1AN00-8AA0 SCALANCE X SFP992-1LH 1000 Mbit/s LC Single-Mode 8-40 km SFP Transceiver Module
Siemens SFP992-1LH SCALANCE X SFP transceiver: 1000 Mbit/s LC single-mode, 8-40 km, IP20, -40 to +85 deg C.
Description
About the SFP992-1LH SCALANCE X accessory, Plug-in transceiver SFP992-1LH 1x 1000 Mbit/s LC port, optical single-mode up to max. 40 km.
About the SFP992-1LH SCALANCE X accessory, Plug-in transceiver SFP992-1LH 1x 1000 Mbit/s LC port, optical single-mode up to max. 40 km.
The Siemens 6GK5992-1AN00-8AA0 (SFP992-1LH) is a plug-in SFP transceiver for the SCALANCE X media module slot, adding one 1000 Mbit/s optical LC port. It runs single-mode fiber on the 1000BASE-EX link at 1550 nm and covers a range of 8 to 40 km. Operating temperature is -40 to +85 degrees C, and IP20 latched mounting keeps it fixed in the switch housing.
Certifications & Standards
- CE
- C-Tick
- BV
- EPD
Selection Notes
The LH designation marks the long-haul tier of the SFP992 family: 1550 nm optics push the range to 8-40 km, above the 30 km ceiling of the LD+ variant, but the 3 dB minimum link attenuation means it needs a minimum fiber loss and is not meant for very short runs. Choose it for inter-site links in the tens-of-kilometers range where the shorter LD/LD+ single-mode SFPs run out of optical budget, and step down to those variants once the link falls under 30 km, since they cost less for the same 1000 Mbit/s bandwidth. For distances beyond 40 km, the LH+ or ELH variant in the same family is required.
Specification
Full specification
General 2
| product type designation | SFP992-1LH SCALANCE X accessory, Plug-in transceiver SFP992-1LH 1x 1000 Mbit/s LC port, optical single-mode up to max. 40 km. |
|---|---|
| product brand name | SCALANCE |
Interfaces 11
| number of electrical/optical connections / for network components or terminal equipment / maximum | 1 |
|---|---|
| number of optical interfaces / for network components or terminal equipment / maximum | 1 |
| number of 1000 Mbit/s LC ports / for single mode (LD) / integrated | 1 |
| design of the optical interface / for network components or terminal equipment | LC |
| wavelength / of the optical interface | 1550 nm; Single-mode |
| connectable optical power relative to 1 mW: of the transmitter output / minimum | -6 dB |
| connectable optical power relative to 1 mW: of the receiver input / maximum | -3 dB |
| optical sensitivity relating to 1 mW / of the receiver input / minimum | -23 dB |
| attenuation factor / of the FOC transmission link / minimum necessary | 3 dB |
| range / at the optical interface / depending on the optical fiber used | 8 ... 40 km |
| transmission method / for connection type 1 | 1000BASE-EX |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: note | A maximum operating temperature of +85 °C is permissible for a duration of 16 hours |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Show all 59 specifications ↓ Show less ↑40 more values in Identification, Design, dimensions and weights, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK5992-1AN00-8AA0 |
|---|---|
| Type designation | SFP992-1LH SCALANCE X accessory, Plug-in transceiver SFP992-1LH 1x 1000 Mbit/s LC port, optical single-mode up to max. 40 km. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169207980 |
| ETIM class | EC003628 |
| eCl@ss | 19170302 |
Design, dimensions and weights 18
| design | SFP Module |
|---|---|
| width | 14 mm |
| height | 9 mm |
| depth | 57 mm |
| fastening method standards, specifications, approvals | latched |
| standard: for FM | FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4 |
| standard: for hazardous zone | EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X |
| standard: for safety / from CSA and UL | UL 62368-1 and CAN/CSA C22.2 No. 62368-1:19 |
| standard: for emitted interference | EN 61000-6-4:2007 (Class A) |
| standard: for interference immunity | EN 61000-6-2:2005 |
| certificate of suitability | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| CE marking | Yes |
| C-Tick | Yes |
| KC approval | No |
| CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
| CCC / for hazardous zone according to GB standard / as marking | Ex nA IIC T4 Gc |
| Marine classification association: French marine classification society (BV) | Yes |
| MTBF | 490 a |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 14.03 kg |
| global warming potential [CO2 eq]: during manufacturing | 1.7 kg |
| global warming potential [CO2 eq]: during operation | 12.32 kg |
| global warming potential [CO2 eq]: after end of life | 0.01 kg |
Logistics 7
| Net weight | 0.064 kg |
|---|---|
| Package dimensions | 100 × 60 × 22 mm |
| Country of origin | Taiwan, China |
| Shipping weight | 0.564 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5992-1AN00-8AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CE marking
- C-Tick
- French marine classification society (BV)
- Environmental Product Declaration
Quick answers
Questions about the SFP992-1LH SCALANCE X accessory, Plug-in transceiver SFP992-1LH 1x 1000 Mbit/s LC port, optical single-mode up to max. 40 km.
What is the HS code of SFP992-1LH SCALANCE X accessory, Plug-in transceiver SFP992-1LH 1x 1000 Mbit/s LC port, optical single-mode up to max. 40 km. for customs?
The tariff (HS) code on file for SFP992-1LH SCALANCE X accessory, Plug-in transceiver SFP992-1LH 1x 1000 Mbit/s LC port, optical single-mode up to max. 40 km. is 85176200.
What is the EAN of SFP992-1LH SCALANCE X accessory, Plug-in transceiver SFP992-1LH 1x 1000 Mbit/s LC port, optical single-mode up to max. 40 km.?
The EAN (GTIN) of SFP992-1LH SCALANCE X accessory, Plug-in transceiver SFP992-1LH 1x 1000 Mbit/s LC port, optical single-mode up to max. 40 km. is 4019169207980.
Where does SFP992-1LH SCALANCE X accessory, Plug-in transceiver SFP992-1LH 1x 1000 Mbit/s LC port, optical single-mode up to max. 40 km. ship from, and how fast?
SFP992-1LH SCALANCE X accessory, Plug-in transceiver SFP992-1LH 1x 1000 Mbit/s LC port, optical single-mode up to max. 40 km. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
