- Part number
- 6GK5992-1AM00-8AC0
- Model no
- SFP992-1LD (x10) SCALANCE X accessory; plug-in transceiver SFP992-1LD; 1x 1000 Mbit/s LC port, optical; single-mode optical up to max. 10 km 1 pack = 10 units.
- CE

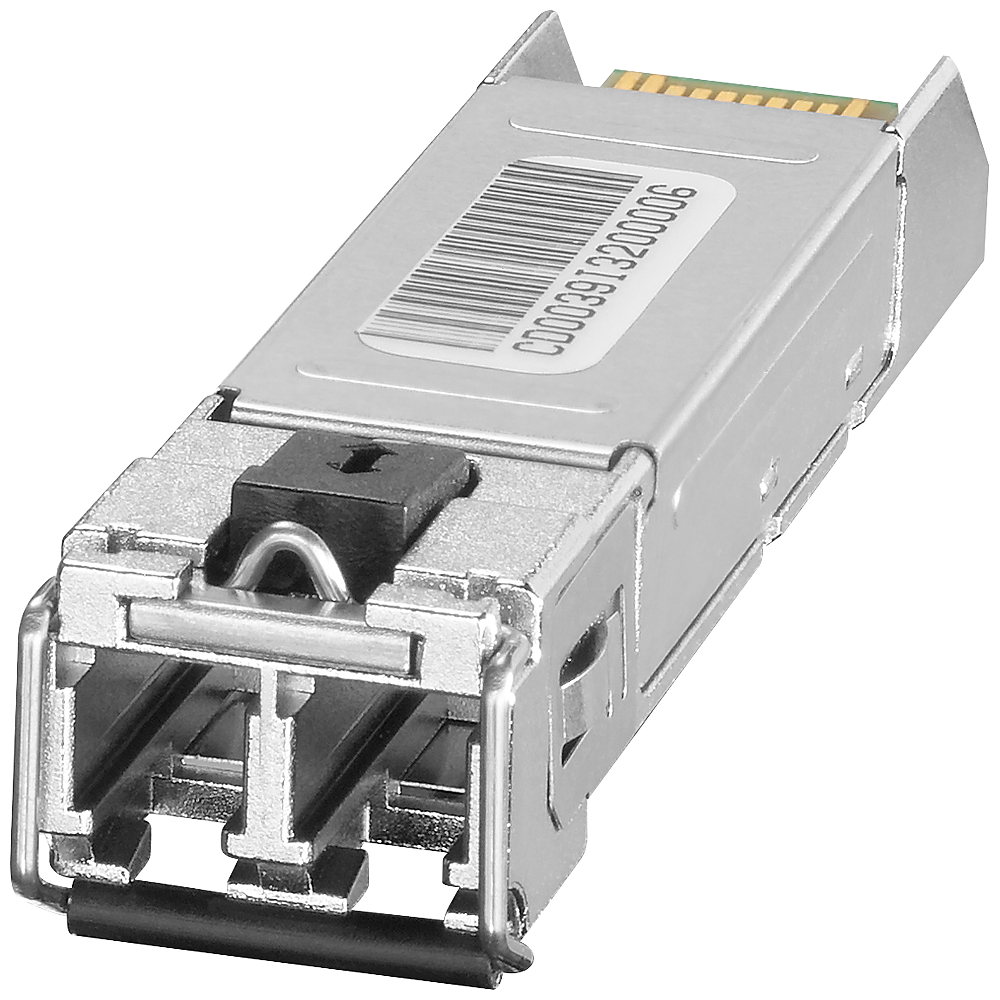

SCALANCE XSiemens 6GK5992-1AM00-8AC0 SCALANCE X SFP992-1LD 1000 Mbit/s LC Single-Mode 10 km 10-Pack SFP Transceiver Module
Siemens SFP992-1LD SCALANCE X SFP transceiver, 10-pack: 1000 Mbit/s LC single-mode, up to 10 km, IP20.
Description
About the SFP992-1LD (x10) SCALANCE X accessory; plug-in transceiver SFP992-1LD; 1x 1000 Mbit/s LC port, optical; single-mode optical up to max. 10 km 1 pack = 10 units.
About the SFP992-1LD (x10) SCALANCE X accessory; plug-in transceiver SFP992-1LD; 1x 1000 Mbit/s LC port, optical; single-mode optical up to max. 10 km 1 pack = 10 units.
The Siemens 6GK5992-1AM00-8AC0 is a 10-piece pack of SFP992-1LD plug-in transceivers for the SCALANCE X media module slot, each adding one 1000 Mbit/s optical LC port. Every transceiver runs single-mode fiber on the 1000BASE-LX link and covers a range of up to 10 km at 1310 nm. Operating temperature extends to -40...+85 degrees C, with a 16-hour rating up to +85 degrees C.
Certifications & Standards
- CE
- C-Tick
- BV
Selection Notes
Buying the SFP992-1LD as this 10-piece pack cuts per-unit handling for projects that need to populate multiple SCALANCE X switches at once, since it ships and is ordered as a single line item instead of ten. Its 1000BASE-LX single-mode link reaches 10 km, the shortest-range option in the SFP992 single-mode family, so it is the right pick when switch cabinets sit within a plant or a single building and a longer-reach, higher-cost transceiver is not needed. For a single spare unit rather than a bulk fit-out, or for links beyond 10 km, a longer-range single-mode SFP is the better fit.
Specification
Full specification
General 2
| product type designation | SFP992-1LD (x10) SCALANCE X accessory; plug-in transceiver SFP992-1LD; 1x 1000 Mbit/s LC port, optical; single-mode optical up to max. 10 km 1 pack = 10 units. |
|---|---|
| product brand name | SCALANCE |
Interfaces 11
| number of electrical/optical connections / for network components or terminal equipment / maximum | 1 |
|---|---|
| number of optical interfaces / for network components or terminal equipment / maximum | 1 |
| number of 1000 Mbit/s LC ports / for single mode (LD) / integrated | 1 |
| design of the optical interface / for network components or terminal equipment | LC |
| wavelength / of the optical interface | 1310 nm; Single-mode |
| connectable optical power relative to 1 mW: of the transmitter output / minimum | -9.5 dB |
| connectable optical power relative to 1 mW: of the receiver input / maximum | -3 dB |
| optical sensitivity relating to 1 mW / of the receiver input / minimum | -19 dB |
| attenuation factor / of the FOC transmission link / minimum necessary | 0 dB |
| range / at the optical interface / depending on the optical fiber used | 0 ... 10 km |
| transmission method / for connection type 1 | 1000BASE-LX |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: note | A maximum operating temperature of +85 °C is permissible for a duration of 16 hours |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Show all 52 specifications ↓ Show less ↑33 more values in Identification, Design, dimensions and weights, Logistics.
Identification 10
| Part number | 6GK5992-1AM00-8AC0 |
|---|---|
| Type designation | SFP992-1LD (x10) SCALANCE X accessory; plug-in transceiver SFP992-1LD; 1x 1000 Mbit/s LC port, optical; single-mode optical up to max. 10 km 1 pack = 10 units. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622798867 |
| ETIM class | EC003628 |
| eCl@ss | 19170302 |
Design, dimensions and weights 16
| design | SFP Module |
|---|---|
| width | 14 mm |
| height | 9 mm |
| depth | 57 mm |
| fastening method standards, specifications, approvals | latched |
| standard: for FM | FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4 |
| standard: for hazardous zone | EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X |
| standard: for safety / from CSA and UL | UL 62368-1 and CAN/CSA C22.2 No. 62368-1:19 |
| standard: for emitted interference | EN 61000-6-4:2007 (Class A) |
| standard: for interference immunity | EN 61000-6-2:2005 |
| certificate of suitability | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| CE marking | Yes |
| C-Tick | Yes |
| KC approval | No |
| Marine classification association: French marine classification society (BV) | Yes |
| MTBF | 600 a |
Logistics 7
| Net weight | 0.1 kg |
|---|---|
| Package dimensions | 100 × 60 × 22 mm |
| Country of origin | Malaysia |
| Shipping weight | 0.6 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5992-1AM00-8AC0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CE marking
- C-Tick
- French marine classification society (BV)
Quick answers
Questions about the SFP992-1LD (x10) SCALANCE X accessory; plug-in transceiver SFP992-1LD; 1x 1000 Mbit/s LC port, optical; single-mode optical up to max. 10 km 1 pack = 10 units.
What is the HS code of SFP992-1LD (x10) SCALANCE X accessory; plug-in transceiver SFP992-1LD; 1x 1000 Mbit/s LC port, optical; single-mode optical up to max. 10 km 1 pack = 10 units. for customs?
The tariff (HS) code on file for SFP992-1LD (x10) SCALANCE X accessory; plug-in transceiver SFP992-1LD; 1x 1000 Mbit/s LC port, optical; single-mode optical up to max. 10 km 1 pack = 10 units. is 85176200.
What is the EAN of SFP992-1LD (x10) SCALANCE X accessory; plug-in transceiver SFP992-1LD; 1x 1000 Mbit/s LC port, optical; single-mode optical up to max. 10 km 1 pack = 10 units.?
The EAN (GTIN) of SFP992-1LD (x10) SCALANCE X accessory; plug-in transceiver SFP992-1LD; 1x 1000 Mbit/s LC port, optical; single-mode optical up to max. 10 km 1 pack = 10 units. is 4047622798867.
Where does SFP992-1LD (x10) SCALANCE X accessory; plug-in transceiver SFP992-1LD; 1x 1000 Mbit/s LC port, optical; single-mode optical up to max. 10 km 1 pack = 10 units. ship from, and how fast?
SFP992-1LD (x10) SCALANCE X accessory; plug-in transceiver SFP992-1LD; 1x 1000 Mbit/s LC port, optical; single-mode optical up to max. 10 km 1 pack = 10 units. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
