- Part number
- 6GK5992-1AG00-8AA0
- Model no
- SFP992-1+ SCALANCE X accessory; Plug-in transceiver SFP992-1+; 1x 1000 Mbit/s LC port, optical; multimode optical up to max. 2000 m.
In stock · 11
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
SCALANCE XSiemens 6GK5992-1AG00-8AA0 SCALANCE X SFP992-1+ 1000 Mbit/s Multimode Transceiver
SCALANCE X SFP992-1+ plug-in transceiver, 1000 Mbit/s multimode LC, 1-2 km.
Description
About the SFP992-1+ SCALANCE X accessory; Plug-in transceiver SFP992-1+; 1x 1000 Mbit/s LC port, optical; multimode optical up to max. 2000 m.
About the SFP992-1+ SCALANCE X accessory; Plug-in transceiver SFP992-1+; 1x 1000 Mbit/s LC port, optical; multimode optical up to max. 2000 m.

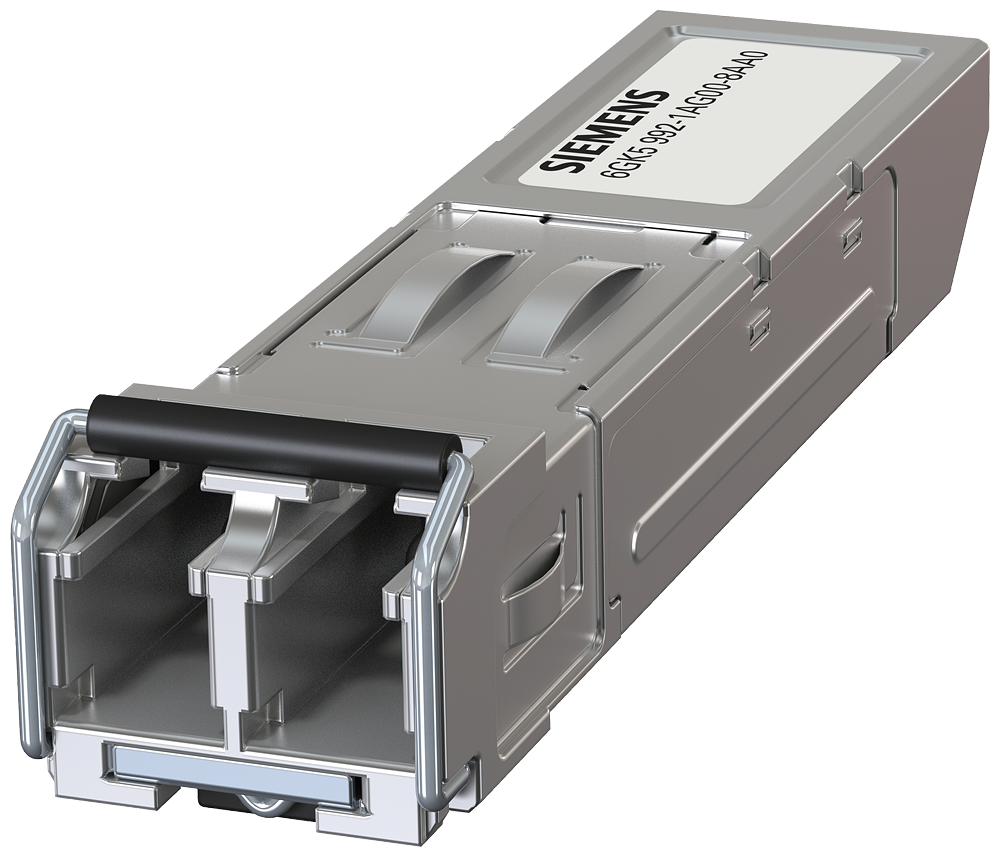

The Siemens 6GK5992-1AG00-8AA0 SFP992-1+ is a SCALANCE X plug-in SFP transceiver with one 1000 Mbit/s multimode LC port, extending an optical fiber run up to 2 km at 1310 nm using the 1000BASE-LSX transmission method. It latches into any SCALANCE X switch SFP slot and is rated IP20 for -40 to +85 C operation.
Certifications & Standards
- CE
- C-Tick
- EPD
Selection Notes
The multimode LC port and 1-2 km range make this the SFP to pick for inter-building or inter-panel links within a plant where a copper RJ45 run would exceed 100 m, not for long-haul single-mode backbones. The -40 to +85 C rating and IP20 slot-mount design match it to SCALANCE X switches installed in unheated cabinets or outdoor enclosures rather than office-grade network gear.
Applications
Fiber uplink between SCALANCE X switches across plant buildings, machine cells, or long cable runs where copper Ethernet is not practical, including hazardous-area-adjacent installations per its Ex-related approvals.
Specification
Full specification
General 2
| product type designation | SFP992-1+ SCALANCE X accessory; Plug-in transceiver SFP992-1+; 1x 1000 Mbit/s LC port, optical; multimode optical up to max. 2000 m. |
|---|---|
| product brand name | SCALANCE |
Interfaces 11
| number of electrical/optical connections / for network components or terminal equipment / maximum | 1 |
|---|---|
| number of optical interfaces / for network components or terminal equipment / maximum | 1 |
| number of 1000 Mbit/s LC ports / for multimode / integrated | 1 |
| design of the optical interface / for network components or terminal equipment | LC |
| wavelength / of the optical interface | 1310 nm; Multi-mode |
| connectable optical power relative to 1 mW: of the transmitter output / minimum | -9 dB |
| connectable optical power relative to 1 mW: of the receiver input / maximum | -1 dB |
| optical sensitivity relating to 1 mW / of the receiver input / minimum | -19 dB |
| attenuation factor / of the FOC transmission link / minimum necessary | 0 dB |
| range / at the optical interface / depending on the optical fiber used | 1 ... 2 km |
| transmission method / for connection type 1 | 1000BASE-LSX |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: note | A maximum operating temperature of +85 °C is permissible for a duration of 16 hours |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Show all 57 specifications ↓ Show less ↑38 more values in Identification, Design, dimensions and weights, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK5992-1AG00-8AA0 |
|---|---|
| Type designation | SFP992-1+ SCALANCE X accessory; Plug-in transceiver SFP992-1+; 1x 1000 Mbit/s LC port, optical; multimode optical up to max. 2000 m. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622313282 |
| ETIM class | EC003628 |
| eCl@ss | 19170302 |
Design, dimensions and weights 16
| design | Plug-in transceiver |
|---|---|
| width | 14 mm |
| height | 9 mm |
| depth | 57 mm |
| fastening method | latched |
| standards, specifications, approvals standard: for FM | FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4 |
| standards, specifications, approvals standard: for hazardous zone | EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X |
| standards, specifications, approvals standard: for safety / from CSA and UL | UL 62368-1 and CAN/CSA C22.2 No. 62368-1:19 |
| standards, specifications, approvals standard: for emitted interference | EN 61000-6-4:2007 (Class A) |
| standards, specifications, approvals standard: for interference immunity | EN 61000-6-2:2005 |
| certificate of suitability | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| CE marking | Yes |
| C-Tick | Yes |
| KC approval | No |
| CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
| CCC / for hazardous zone according to GB standard / as marking | Ex nA IIC T4 Gc |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 16.27 kg |
| global warming potential [CO2 eq]: during manufacturing | 1.7 kg |
| global warming potential [CO2 eq]: during operation | 14.56 kg |
| global warming potential [CO2 eq]: after end of life | 0.01 kg |
Logistics 7
| Net weight | 0.1 kg |
|---|---|
| Package dimensions | 57 × 14 × 9 mm |
| Country of origin | Taiwan, China |
| Shipping weight | 0.6 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5992-1AG00-8AA0 1
-
Datasheet
ProductDownload PDF: Product data sheet 6GK5992-1AG00-8AA0
Product data sheet 6GK5992-1AG00-8AA0
Certifications
Certifications and standards
- CE marking
- C-Tick
- Environmental Product Declaration
Quick answers
Questions about the SFP992-1+ SCALANCE X accessory; Plug-in transceiver SFP992-1+; 1x 1000 Mbit/s LC port, optical; multimode optical up to max. 2000 m.
What is the HS code of SFP992-1+ SCALANCE X accessory; Plug-in transceiver SFP992-1+; 1x 1000 Mbit/s LC port, optical; multimode optical up to max. 2000 m. for customs?
The tariff (HS) code on file for SFP992-1+ SCALANCE X accessory; Plug-in transceiver SFP992-1+; 1x 1000 Mbit/s LC port, optical; multimode optical up to max. 2000 m. is 85176200.
What is the EAN of SFP992-1+ SCALANCE X accessory; Plug-in transceiver SFP992-1+; 1x 1000 Mbit/s LC port, optical; multimode optical up to max. 2000 m.?
The EAN (GTIN) of SFP992-1+ SCALANCE X accessory; Plug-in transceiver SFP992-1+; 1x 1000 Mbit/s LC port, optical; multimode optical up to max. 2000 m. is 4047622313282.
Where does SFP992-1+ SCALANCE X accessory; Plug-in transceiver SFP992-1+; 1x 1000 Mbit/s LC port, optical; multimode optical up to max. 2000 m. ship from, and how fast?
SFP992-1+ SCALANCE X accessory; Plug-in transceiver SFP992-1+; 1x 1000 Mbit/s LC port, optical; multimode optical up to max. 2000 m. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
