- Part number
- 6GK5991-1AE30-8AA0
- Model no
- SFP991-1ELH200 SCALANCE X accessory, Plug-in transceiver SFP991-1ELH200 1x 100 Mbit/s LC port, optical; single-mode glass up to max. 200 km.
- CE

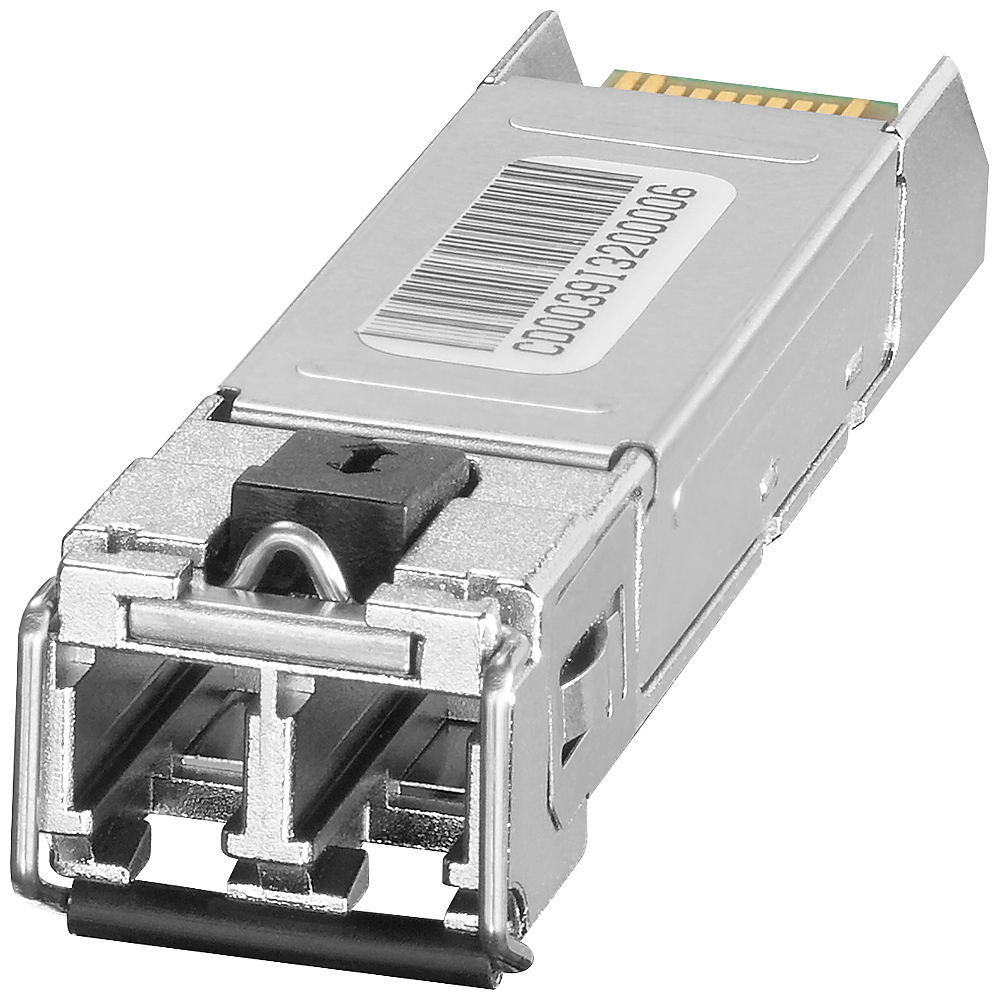

SCALANCE XSiemens 6GK5991-1AE30-8AA0 SCALANCE X SFP991-1ELH200 100Mbps LC Single-Mode 200km SFP Transceiver
100Mbps SFP transceiver, LC single-mode, up to 200km, 1550nm, Ex-rated for hazardous zones.
Description
About the SFP991-1ELH200 SCALANCE X accessory, Plug-in transceiver SFP991-1ELH200 1x 100 Mbit/s LC port, optical; single-mode glass up to max. 200 km.
About the SFP991-1ELH200 SCALANCE X accessory, Plug-in transceiver SFP991-1ELH200 1x 100 Mbit/s LC port, optical; single-mode glass up to max. 200 km.
The Siemens 6GK5991-1AE30-8AA0 SFP991-1ELH200 is a 100 Mbps SFP transceiver for SCALANCE X switches, with a single LC port running 100BASE-LX over single-mode fiber for 61 to 200 km reach at 1550 nm. Its 1 to 5 dBm transmit power and -42 dBm receiver sensitivity give it the longest optical budget in the SFP991 family, and it carries FM and ATEX hazardous-location approval plus CCC Ex marking for China.
Certifications & Standards
- CE
- C-Tick
- EPD
Selection Notes
Specify the SFP991-1ELH200 only when the run genuinely needs 61 to 200 km of single-mode fiber; the 14 dB minimum attenuation requirement means it will saturate its own receiver on shorter links where a lower-power single-mode variant would work instead. Its 1 to 5 dBm transmitter output is the highest in the family, which is what buys the extended reach at the cost of needing more fiber loss between the two ends to stay in the receiver's working range.
Specification
Full specification
General 2
| product type designation | SFP991-1ELH200 SCALANCE X accessory, Plug-in transceiver SFP991-1ELH200 1x 100 Mbit/s LC port, optical; single-mode glass up to max. 200 km. |
|---|---|
| product brand name | SCALANCE |
Interfaces 11
| number of electrical/optical connections / for network components or terminal equipment / maximum | 1 |
|---|---|
| number of optical interfaces / for network components or terminal equipment / maximum | 1 |
| number of 100 Mbit/s LC ports | 1 |
| design of the optical interface / for network components or terminal equipment | LC |
| wavelength / of the optical interface | 1550 nm; Single-mode |
| connectable optical power relative to 1 mW: of the transmitter output / minimum | 1 dB |
| connectable optical power relative to 1 mW: of the receiver input / maximum | -9 dB |
| optical sensitivity relating to 1 mW / of the receiver input / minimum | -42 dB |
| attenuation factor / of the FOC transmission link / minimum necessary | 14 dB |
| range / at the optical interface / depending on the optical fiber used | 61 ... 200 km |
| transmission method / for connection type 1 | 100BASE-LX |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| ambient temperature: note | A maximum operating temperature of +85 °C is permissible for a duration of 16 hours |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Show all 59 specifications ↓ Show less ↑40 more values in Identification, Design, dimensions and weights, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK5991-1AE30-8AA0 |
|---|---|
| Type designation | SFP991-1ELH200 SCALANCE X accessory, Plug-in transceiver SFP991-1ELH200 1x 100 Mbit/s LC port, optical; single-mode glass up to max. 200 km. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169256902 |
| ETIM class | EC003628 |
| eCl@ss | 19170302 |
Design, dimensions and weights 18
| design | SFP Module |
|---|---|
| width | 14 mm |
| height | 9 mm |
| depth | 57 mm |
| fastening method | latched |
| standards, specifications, approvals standard: for FM | FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4 |
| standards, specifications, approvals standard: for hazardous zone | EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X |
| standards, specifications, approvals standard: for safety / from CSA and UL | UL 62368-1 and CAN/CSA C22.2 No. 62368-1:19 |
| standards, specifications, approvals standard: for emitted interference | EN 61000-6-4:2007 (Class A) |
| standards, specifications, approvals standard: for interference immunity | EN 61000-6-2:2005 |
| certificate of suitability | EN 61000-6-2:2005, EN 61000-6-4:2007 |
| CE marking | Yes |
| C-Tick | Yes |
| KC approval | No |
| CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
| CCC / for hazardous zone according to GB standard / as marking | Ex nA IIC T4 Gc |
| MTBF | 380 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 18.95 kg |
| global warming potential [CO2 eq]: during manufacturing | 1.7 kg |
| global warming potential [CO2 eq]: during operation | 17.24 kg |
| global warming potential [CO2 eq]: after end of life | 0.01 kg |
Logistics 7
| Net weight | 0.066 kg |
|---|---|
| Package dimensions | 100 × 60 × 22 mm |
| Country of origin | DE |
| Shipping weight | 0.566 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5991-1AE30-8AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CE marking
- C-Tick
- Environmental Product Declaration
Quick answers
Questions about the SFP991-1ELH200 SCALANCE X accessory, Plug-in transceiver SFP991-1ELH200 1x 100 Mbit/s LC port, optical; single-mode glass up to max. 200 km.
What is the HS code of SFP991-1ELH200 SCALANCE X accessory, Plug-in transceiver SFP991-1ELH200 1x 100 Mbit/s LC port, optical; single-mode glass up to max. 200 km. for customs?
The tariff (HS) code on file for SFP991-1ELH200 SCALANCE X accessory, Plug-in transceiver SFP991-1ELH200 1x 100 Mbit/s LC port, optical; single-mode glass up to max. 200 km. is 85176200.
What is the EAN of SFP991-1ELH200 SCALANCE X accessory, Plug-in transceiver SFP991-1ELH200 1x 100 Mbit/s LC port, optical; single-mode glass up to max. 200 km.?
The EAN (GTIN) of SFP991-1ELH200 SCALANCE X accessory, Plug-in transceiver SFP991-1ELH200 1x 100 Mbit/s LC port, optical; single-mode glass up to max. 200 km. is 4019169256902.
Where does SFP991-1ELH200 SCALANCE X accessory, Plug-in transceiver SFP991-1ELH200 1x 100 Mbit/s LC port, optical; single-mode glass up to max. 200 km. ship from, and how fast?
SFP991-1ELH200 SCALANCE X accessory, Plug-in transceiver SFP991-1ELH200 1x 100 Mbit/s LC port, optical; single-mode glass up to max. 200 km. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
