- Part number
- 6GK5923-0PS00-2RA3
- Model no
- SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC.
- CE

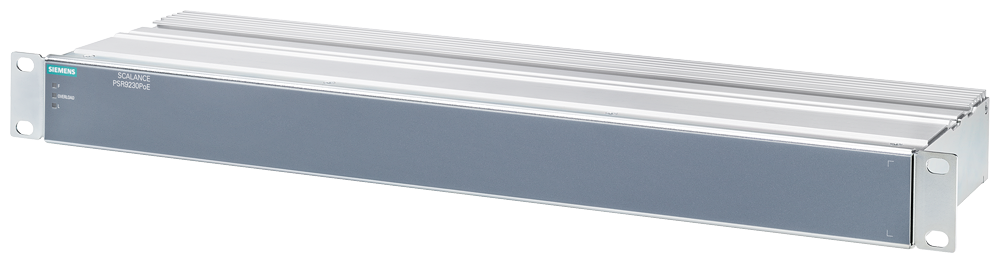

SCALANCESiemens 6GK5923-0PS00-2RA3 SCALANCE PSR9230PoE 54V 4A 180W PoE Networking Accessory
19-inch rack PoE power supply, 100-240VAC input, 54V/4A 180W output, IP30.
Description
About the SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC.
About the SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC.
The Siemens 6GK5923-0PS00-2RA3 SCALANCE PSR9230PoE is a 19-inch rack power supply for Power over Ethernet, converting a 100-240 V AC wide-range input into a 54 V DC, 4 A output rated at 180 W. It carries IP30 protection, mounts in a 19-inch rack or on a DIN rail, and its output can parallel with a second unit to double available power.
Certifications & Standards
- CE
- C-Tick
- EPD
Selection Notes
The 4 A / 180 W output and parallel-switching capability let two PSR9230PoE units feed one PoE segment for 360 W when a switch's PoE budget exceeds what a single unit supplies, without a separate load-sharing controller. IP30 and the 19-inch rack format with DIN-rail mounting as an option fit a cabinet installation rather than an open panel, and the 20 ms buffering time rides through short mains dips without dropping the connected switch's PoE ports.
Specification
Full specification
General 4
| product type designation | SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC. |
|---|---|
| product brand name | SCALANCE |
| type of current supply | 180 W, input: 100 ... 240 V AC, 50/60 Hz, output: 54 V / 4 A DC |
| suitability for use | Power supply for PoE |
Electrical data 1
| product category | Power supply |
|---|
Electrical data / input 13
| voltage curve / at input | AC single phase |
|---|---|
| supply voltage / 1 / rated value | 230 V |
| type of voltage / 1 / of the supply voltage | AC |
| consumed current / 1 / at rated supply voltage / maximum | 4 A |
| design of input / wide range input | Yes |
| overvoltage category | Category II |
| buffering time / for rated value of the output current / in the event of power failure / minimum | 20 ms |
| line frequency: 50 Hz | Yes |
| line frequency: 60 Hz | Yes |
| line frequency | 47 ... 63 Hz |
| input current / at rated input voltage 230 V / rated value | 4 A |
| current limitation / of inrush current / at 25 °C / maximum | 25 A |
| fuse protection type / at input | Fuse T 4A soldered in |
Show all 82 specifications ↓ Show less ↑64 more values in Identification, Electrical data / output, Electrical data / closed-loop control, Electrical data / safety, Interfaces, Signal inputs/outputs, Design, dimensions and weights, Ambient conditions, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Accessories, Logistics.
Identification 10
| Part number | 6GK5923-0PS00-2RA3 |
|---|---|
| Type designation | SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169857574 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Electrical data / output 9
| voltage curve / at output | linear falling (56V at 0A, 54V at 4A) |
|---|---|
| output voltage: 1 / at DC / rated value | 54 V |
| display version / for normal operation | LED green for DC ok |
| output current: rated value | 4 A |
| output current: rated range | 0 ... 4 A |
| supplied active power / typical | 180 W |
| product feature / parallel switching of channels | Yes |
| number of parallel-switched equipment resources / for increasing the power | 2 |
| power loss [W] | 24 W |
Electrical data / closed-loop control 4
| relative overall tolerance / of the voltage electrical data / protection and monitoring | 3% |
|---|---|
| design of the overvoltage protection / at output | < 60 V |
| property of the output / short-circuit proof | Yes |
| design of short-circuit protection | Electronic shutdown, automatic restart |
Electrical data / safety 2
| electrical separation / between input and output | Yes |
|---|---|
| galvanic isolation | Input to output: 4 kV, input to PE 2.5 kV, output to PE: 2.25 kV |
Interfaces 4
| number of electrical connections: for power supply | 1 |
|---|---|
| number of electrical connections: for signaling contact | 0 |
| type of electrical connection: for power supply | IEC plug |
| type of electrical connection: at output | 2-pole terminal block |
Signal inputs/outputs 1
| product component / signaling contact | No |
|---|
Design, dimensions and weights 6
| design | 19-inch rack |
|---|---|
| width | 446 mm |
| height | 43.6 mm |
| depth | 133 mm |
| fastening method: 19-inch installation | Yes |
| fastening method: DIN-rail mounting | Yes |
Ambient conditions 7
| ambient temperature: during operation | -25 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +60 °C |
| ambient temperature: during transport | -40 ... +60 °C |
| ambient temperature: note | Convection |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| environmental category / according to IEC 60721 | Climate class 3K3, without condensation |
| protection class IP | IP30 |
Standards, specifications, approvals 9
| standard: for safety / from CSA and UL | UL 62368-1:2014 (Second Edition) Report No. E115352, IEC 62368-1:2014 (Second Edition) |
|---|---|
| standard: for emitted interference | EN 61000-6-4:2007 +A1:2011 |
| standard: for interference immunity | EN 61000-6-2:2019 |
| certificate of suitability | EN 61000-6-4: 2007 |
| CE marking | Yes |
| C-Tick | Yes |
| MTBF | 110 a; at full load, 40 °C |
| reference temperature | 40 °C |
| percental operating load | 100 % |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 595.15 kg |
| global warming potential [CO2 eq]: during manufacturing | 62.11 kg |
| global warming potential [CO2 eq]: during operation | 532.64 kg |
| global warming potential [CO2 eq]: after end of life | 0.4 kg |
Accessories 1
| accessories / included | Connecting cable power supply / switch |
|---|
Logistics 6
| Net weight | 2.8 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 3.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5923-0PS00-2RA3
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CE marking
- C-Tick
- Environmental Product Declaration
Quick answers
Questions about the SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC.
What is the rated current of SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC.?
The rated current of SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC. is 4 A.
Which supply voltage is SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC. rated for?
The rated operational voltage of SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC. is 230 V AC.
What motor power is SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC. rated for?
The rated motor power of SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC. is 0.18 kW.
What is the HS code of SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC. for customs?
The tariff (HS) code on file for SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC. is 85044083.
What is the EAN of SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC.?
The EAN (GTIN) of SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC. is 4019169857574.
Where does SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC. ship from, and how fast?
SCALANCE PSR9230PoE power supply SCALANCE PSR9230PoE 19" rack power-supply for power over Ethernet, Input: 230 V AC; output: 54 V DC. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
