- Part number
- 6GK5907-4PA00
- Model no
- KEY-PLUG W740 iFeatures
SCALANCE WSiemens 6GK5907-4PA00 SCALANCE W KEY-PLUG W740 iFeatures Client Mode Networking Accessory
Removable KEY-PLUG module for SCALANCE W client mode: activates iPCF/iPRP iFeatures, 256 MiB.
Description
About the KEY-PLUG W740 iFeatures
About the KEY-PLUG W740 iFeatures

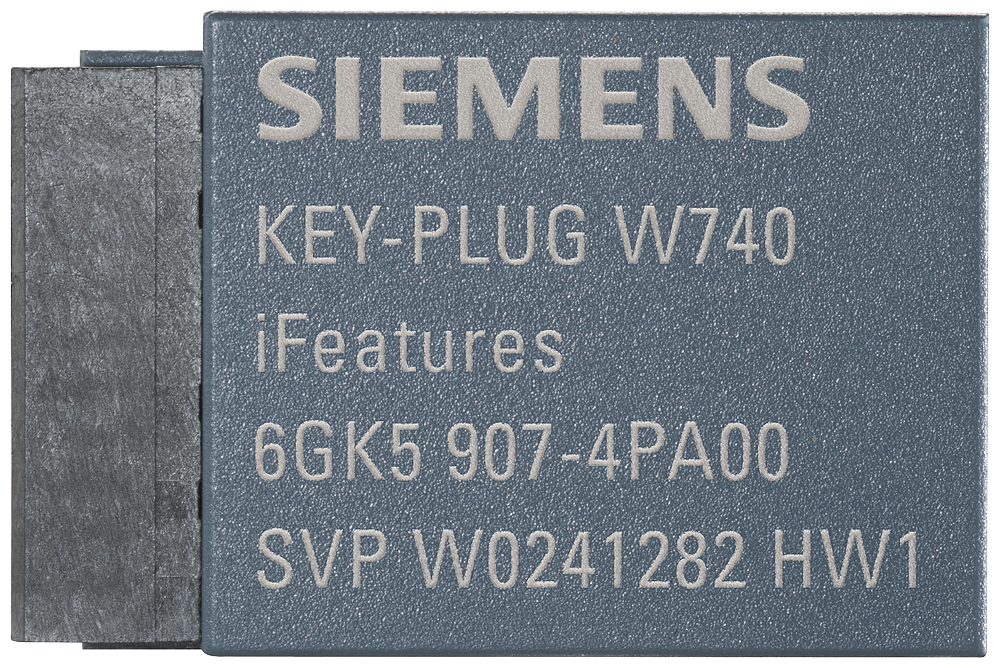

The Siemens 6GK5907-4PA00 KEY-PLUG W740 is a removable data storage medium that activates iPCF, iPCF MC and iPRP client-mode iFeatures on SCALANCE W780/W770 and W740/W730 access points operating as clients. It also stores configuration and application data, so replacing a faulty device is a plug swap rather than a reconfiguration, and it holds 256 MiB of storage in a 24.3 x 17 x 8.1 mm module.
Certifications & Standards
- EPD
Selection Notes
Choose the W740 KEY-PLUG specifically for client-side iFeatures; it targets SCALANCE W devices operating in client mode (iPCF client, iPCF MC client, iPRP client) rather than access-point mode, so it is the module to stock for the moving or subordinate end of a wireless link, not the infrastructure side. The -40 to +75 degC operating rating covers unheated cabinets and vehicle-mounted enclosures, so the module can stay plugged in rather than being pulled out between configuration sessions.
Specification
Full specification
Product type designation 5
| product brand name | SCALANCE |
|---|---|
| product type designation | KEY-PLUG W740 iFeatures |
| product description | removable data storage medium for activating iFeatures for SCALANCE W in client mode and for simple device replacement in an error case |
| suitability for use | activation of iPCF client mode, iPCF MC client mode, iPRP client mode |
| suitability for operation | SCALANCE W780/W770 (client mode), SCALANCE W740/W730 |
Ambient conditions 5
| ambient temperature: during operation | -40 ... +75 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 5
| width | 24.3 mm |
|---|---|
| height | 17 mm |
| depth | 8.1 mm |
| design of the removable storage: C-PLUG | No |
| design of the removable storage: KEY-PLUG | Yes |
Show all 38 specifications ↓ Show less ↑23 more values in Identification, Product features, product functions, product components / general, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK5907-4PA00 |
|---|---|
| Type designation | KEY-PLUG W740 iFeatures |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169240741 |
| ETIM class | EC001068 |
| eCl@ss | 19170304 |
Product features, product functions, product components / general 1
| storage capacity | 256 Mibyte |
|---|
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 1264 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.92 kg |
| global warming potential [CO2 eq]: during operation | 0.34 kg |
| global warming potential [CO2 eq]: after end of life | 0.0042 kg |
Logistics 7
| Net weight | 0.026 kg |
|---|---|
| Package dimensions | 24 × 17 × 8 mm |
| Country of origin | DE |
| Shipping weight | 0.526 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5907-4PA00
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the KEY-PLUG W740 iFeatures
What is the HS code of KEY-PLUG W740 iFeatures for customs?
The tariff (HS) code on file for KEY-PLUG W740 iFeatures is 85235190.
What is the EAN of KEY-PLUG W740 iFeatures?
The EAN (GTIN) of KEY-PLUG W740 iFeatures is 4019169240741.
Where does KEY-PLUG W740 iFeatures ship from, and how fast?
KEY-PLUG W740 iFeatures ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
