- Part number
- 6GK5904-0PA00
- Model no
- KEY-PLUG XM-400 Layer 3 Routing
Siemens has announced the end of 6GK5904-0PA00
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.
SCALANCE XMSiemens 6GK5904-0PA00 SCALANCE XM KEY-PLUG XM-400 Layer 3 Routing Networking Accessory
Removable KEY-PLUG module for SCALANCE XM-400: activates Layer 3 routing, stores config, 256 MiB.
Description
About the KEY-PLUG XM-400 Layer 3 Routing
About the KEY-PLUG XM-400 Layer 3 Routing

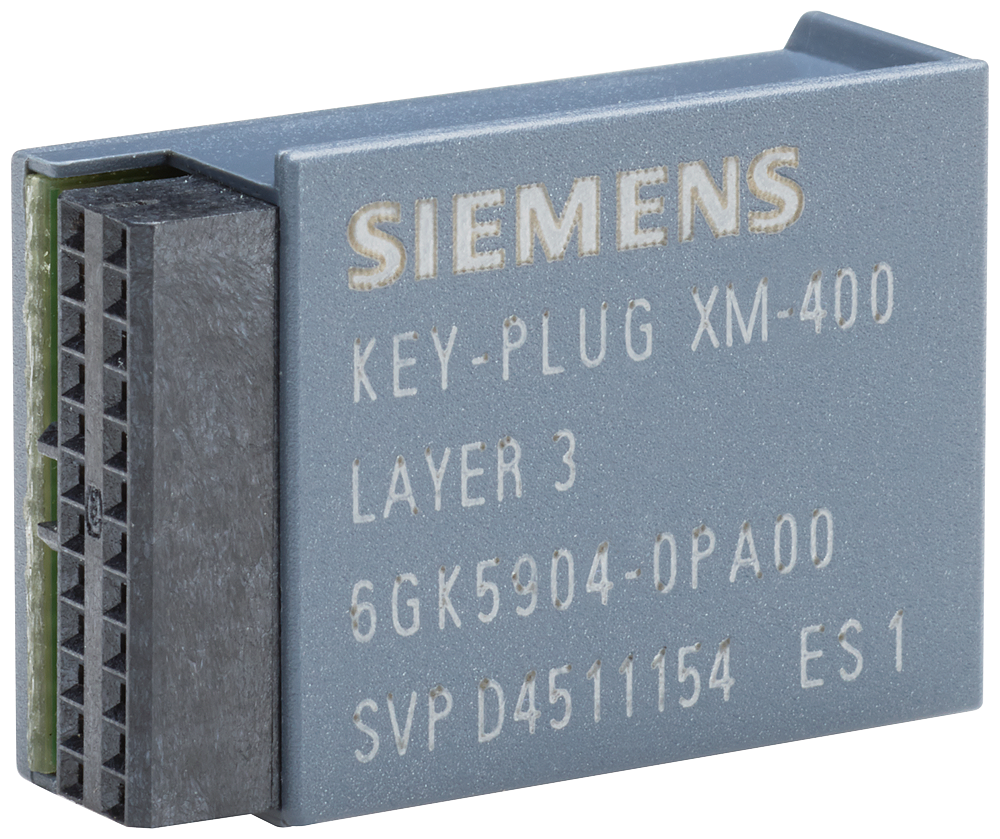

The Siemens 6GK5904-0PA00 KEY-PLUG XM-400 is a removable data storage medium that activates Layer 3 routing features on a SCALANCE XM-400 switch and stores its configuration data. Plugging it into a replacement switch restores the saved configuration without manual reprogramming, and it holds 256 MiB of storage in a 24.3 x 17 x 8.1 mm module.
Certifications & Standards
- EPD
Selection Notes
Use this KEY-PLUG when a SCALANCE XM-400 installation needs Layer 3 routing rather than Layer 2 switching only; without it, the switch's routing functions stay locked. Because the module also carries the saved configuration, swapping it into a spare XM-400 chassis after a hardware fault brings the replacement online with the same settings, cutting the field-service step down to a plug swap instead of a reconfiguration session.
Specification
Full specification
Product type designation 1
| product type designation | KEY-PLUG XM-400 Layer 3 Routing |
|---|
Ambient conditions 5
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 5
| width | 24.3 mm |
|---|---|
| height | 17 mm |
| depth | 8.1 mm |
| design of the removable storage: C-PLUG | No |
| design of the removable storage: KEY-PLUG | Yes |
Show all 34 specifications ↓ Show less ↑23 more values in Identification, Product features, product functions, product components / general, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK5904-0PA00 |
|---|---|
| Type designation | KEY-PLUG XM-400 Layer 3 Routing |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4019169326940 |
| ETIM class | EC001068 |
| eCl@ss | 19170304 |
Product features, product functions, product components / general 1
| storage capacity | 256 Mibyte |
|---|
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 1264 kg |
| global warming potential [CO2 eq]: during manufacturing | 0.92 kg |
| global warming potential [CO2 eq]: during operation | 0.34 kg |
| global warming potential [CO2 eq]: after end of life | 0.0042 kg |
Logistics 7
| Net weight | 0.026 kg |
|---|---|
| Package dimensions | 120 × 90 × 10 mm |
| Country of origin | DE |
| Shipping weight | 0.526 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5904-0PA00
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- Environmental Product Declaration
Quick answers
Questions about the KEY-PLUG XM-400 Layer 3 Routing
What is the HS code of KEY-PLUG XM-400 Layer 3 Routing for customs?
The tariff (HS) code on file for KEY-PLUG XM-400 Layer 3 Routing is 85235190.
What is the EAN of KEY-PLUG XM-400 Layer 3 Routing?
The EAN (GTIN) of KEY-PLUG XM-400 Layer 3 Routing is 4019169326940.
Where does KEY-PLUG XM-400 Layer 3 Routing ship from, and how fast?
KEY-PLUG XM-400 Layer 3 Routing ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
