- Part number
- 6GK5898-1CV00-4AA0
- Model no
- IWLAN angle adapter SMA/SMA male/female Elbow adapter SMA/SMA male/female.

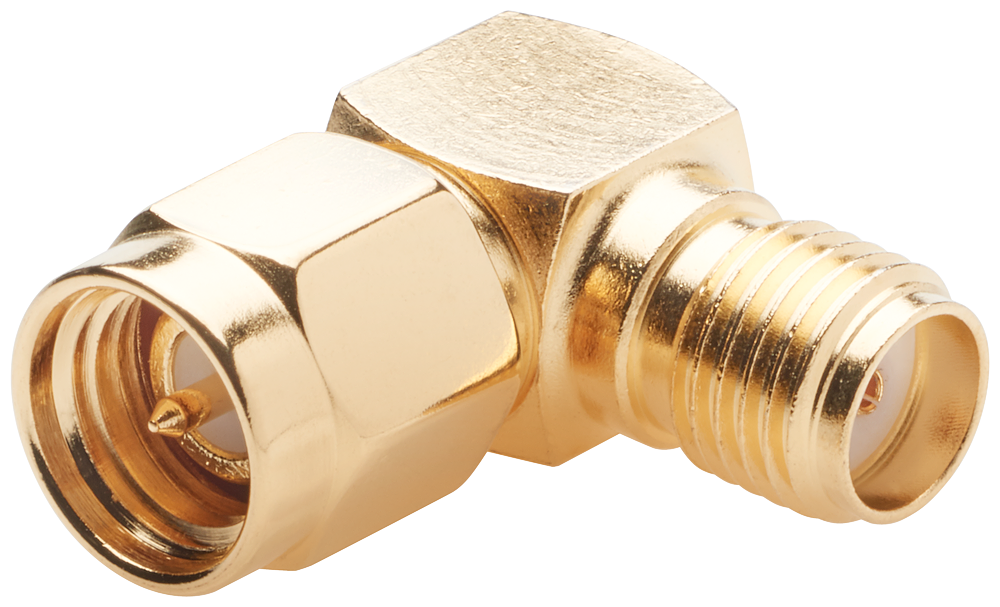

SCALANCE MSiemens 6GK5898-1CV00-4AA0 SCALANCE SMA/SMA Angle Adapter 0-6GHz IP61 Networking Accessory
SMA male/female angle adapter, gold-plated brass, 0-6GHz, 50 Ohm, IP61 mated.
Description
About the IWLAN angle adapter SMA/SMA male/female Elbow adapter SMA/SMA male/female.
About the IWLAN angle adapter SMA/SMA male/female Elbow adapter SMA/SMA male/female.
The Siemens 6GK5898-1CV00-4AA0 is an SMA/SMA elbow adapter with male and female gold-plated brass connectors, rated 0 to 6 GHz at 50 Ohm impedance. It lets an antenna cable exit at a right angle where straight clearance is limited, and its -20 to +80 degC range plus IP61 rating when mated match SCALANCE M and W outdoor antenna hardware.
Certifications & Standards
- RoHS
Selection Notes
Pick this adapter when a straight SMA connection would push the antenna cable into an enclosure wall or roof bracket; the 90 degree bend keeps the same 0-6 GHz, 50 Ohm path with gold-plated brass contacts for low-resistance contact over repeated connect cycles.
Specification
Full specification
General 2
| product type designation | IWLAN angle adapter SMA/SMA male/female Elbow adapter SMA/SMA male/female. |
|---|---|
| product brand name | SCALANCE |
Electrical data 4
| number of electrical connections | 2 |
|---|---|
| type of electrical connection | SMA male / SMA female |
| transmission frequency | 0 ... 6 GHz |
| impedance | 50 Ω |
Mechanical data 1
| material | brass, gold-plated |
|---|
Show all 31 specifications ↓ Show less ↑24 more values in Identification, Ambient conditions, Design, dimensions and weights, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5898-1CV00-4AA0 |
|---|---|
| Type designation | IWLAN angle adapter SMA/SMA male/female Elbow adapter SMA/SMA male/female. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169855624 |
| ETIM class | EC001698 |
| eCl@ss | 19070107 |
Ambient conditions 4
| ambient temperature: during operation | -20 ... +80 °C |
|---|---|
| ambient temperature: during storage | -20 ... +80 °C |
| ambient temperature: during transport | -20 ... +80 °C |
| protection class IP | IP61; when plugged in |
Design, dimensions and weights 2
| width | 17 mm |
|---|---|
| height | 15 mm |
Standards, specifications, approvals 1
| certificate of suitability: RoHS conformity | Yes |
|---|
Logistics 7
| Net weight | 0.009 kg |
|---|---|
| Package dimensions | 32 × 18 × 7 mm |
| Country of origin | DE |
| Shipping weight | 0.509 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5898-1CV00-4AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
Quick answers
Questions about the IWLAN angle adapter SMA/SMA male/female Elbow adapter SMA/SMA male/female.
What is the HS code of IWLAN angle adapter SMA/SMA male/female Elbow adapter SMA/SMA male/female. for customs?
The tariff (HS) code on file for IWLAN angle adapter SMA/SMA male/female Elbow adapter SMA/SMA male/female. is 85366910.
What is the EAN of IWLAN angle adapter SMA/SMA male/female Elbow adapter SMA/SMA male/female.?
The EAN (GTIN) of IWLAN angle adapter SMA/SMA male/female Elbow adapter SMA/SMA male/female. is 4019169855624.
Where does IWLAN angle adapter SMA/SMA male/female Elbow adapter SMA/SMA male/female. ship from, and how fast?
IWLAN angle adapter SMA/SMA male/female Elbow adapter SMA/SMA male/female. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
