- Part number
- 6GK5896-6MH00-0AA0
- Model no
- Antenna ANT896-6MH ANT896-6MH mobile wireless antenna for GSM (2G), UMTS (3G) and LTE (4G) Networks, for Suitable for railway applications, Omnidirectional Characteristic, including N-Connect female connection; 5/6 dBi; IP69K (-40...+85 °C), observe national approvals; mounting on vehicle roof; compact instructions as hard copy German/English; scope of delivery: 1x ANT 896-6MH,.

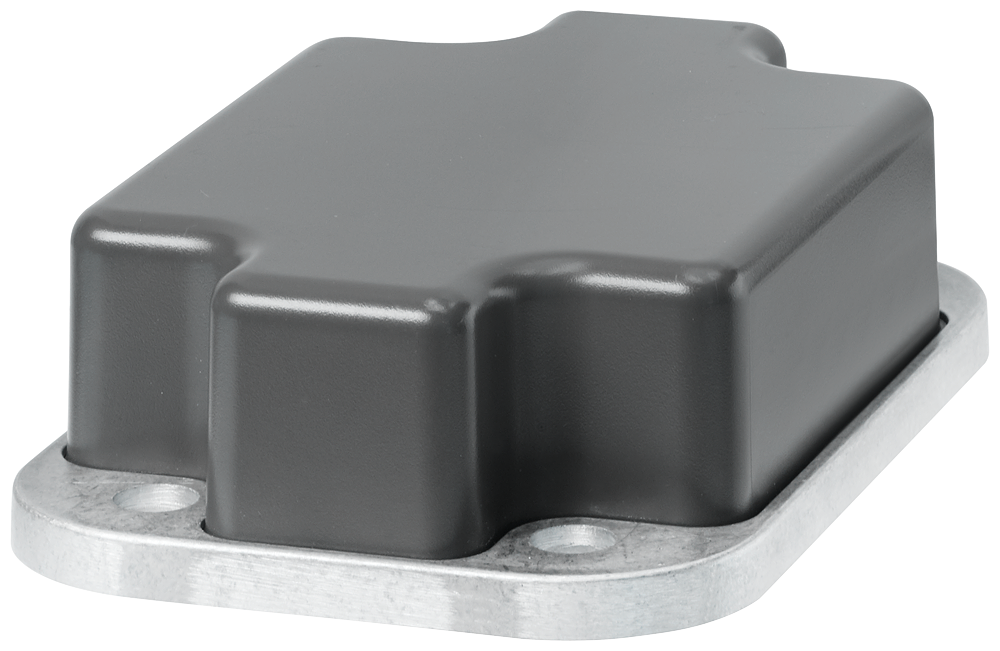

Siemens 6GK5896-6MH00-0AA0 SCALANCE M ANT896-6MH Mobile Radio Antenna 5/6dBi IP69K
Omnidirectional mobile radio antenna, GSM/UMTS/LTE, 5/6dBi, N-Connector, IP69K, railway roof mount.
Description
About the Antenna ANT896-6MH ANT896-6MH mobile wireless antenna for GSM (2G), UMTS (3G) and LTE (4G) Networks, for Suitable for railway applications, Omnidirectional Characteristic, including N-Connect female connection; 5/6 dBi; IP69K (-40...+85 °C), observe national approvals; mounting on vehicle roof; compact instructions as hard copy German/English; scope of delivery: 1x ANT 896-6MH,.
About the Antenna ANT896-6MH ANT896-6MH mobile wireless antenna for GSM (2G), UMTS (3G) and LTE (4G) Networks, for Suitable for railway applications, Omnidirectional Characteristic, including N-Connect female connection; 5/6 dBi; IP69K (-40...+85 °C), observe national approvals; mounting on vehicle roof; compact instructions as hard copy German/English; scope of delivery: 1x ANT 896-6MH,.
The Siemens 6GK5896-6MH00-0AA0 ANT896-6MH is an omnidirectional mobile radio antenna covering GSM, UMTS and LTE bands across 790-960 MHz and 1350-2700 MHz, built for vehicle roof mounting on rail stock. It delivers 5 dB typical gain on both frequency ranges through an N-Connector female interface, carries IP69K sealing across -40 to +85 degC, and is rated to survive wind loads up to 500 km/h.
Certifications & Standards
- RoHS
- EN 50155
- EN 45545-2
Selection Notes
The 5 dB gain and 360 degree horizontal pattern trade peak directional gain for consistent coverage as a vehicle's heading changes relative to the nearest cell site, which matters more on rolling stock than a higher-gain directional antenna would. IP69K sealing and the -40 to +85 degC range are set for open-air roof exposure rather than an enclosure, and the N-Connector female interface mates directly with SCALANCE M mobile router antenna ports. Its EN 50155 and EN 45545-2 compliance is what qualifies it for passenger rail installations rather than generic vehicle use.
Applications
Fits SCALANCE M mobile router installations on trains and other vehicles needing continuous GSM, UMTS and LTE connectivity, where one omnidirectional roof antenna covers both the 790-960 MHz and 1350-2700 MHz ranges instead of separate per-band antennas.
Specification
Full specification
General 2
| product type designation | Antenna ANT896-6MH ANT896-6MH mobile wireless antenna for GSM (2G), UMTS (3G) and LTE (4G) Networks, for Suitable for railway applications, Omnidirectional Characteristic, including N-Connect female connection; 5/6 dBi; IP69K (-40...+85 °C), observe national approvals; mounting on vehicle roof; compact instructions as hard copy German/English; scope of delivery: 1x ANT 896-6MH,. |
|---|---|
| product brand name | SCALANCE |
Radio frequencies 4
| type of wireless network / is supported | LTE, UMTS, GSM |
|---|---|
| operating frequency / 1 | 790 ... 960 MHz |
| operating frequency / 2 | 1350 ... 2700 MHz |
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.4 ... 2.7 GHz |
Electrical data 9
| antenna gain compared to spherical radiator: with linear radiation | measured on a metal floor area 1x1m |
|---|---|
| impedance | 50 Ω |
| polarization | Linear Vertical |
| radiation characteristic | omnidirectional |
| standing wave ratio (VSWR) / maximum | 2.2 |
| radiating angle of the antenna: horizontal | 360° |
| number of electrical connections / of the antenna | 1 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | female |
Show all 47 specifications ↓ Show less ↑32 more values in Identification, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5896-6MH00-0AA0 |
|---|---|
| Type designation | Antenna ANT896-6MH ANT896-6MH mobile wireless antenna for GSM (2G), UMTS (3G) and LTE (4G) Networks, for Suitable for railway applications, Omnidirectional Characteristic, including N-Connect female connection; 5/6 dBi; IP69K (-40...+85 °C), observe national approvals; mounting on vehicle roof; compact instructions as hard copy German/English; scope of delivery: 1x ANT 896-6MH,. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169855662 |
| ETIM class | EC001698 |
| eCl@ss | 19070107 |
Ambient conditions 4
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| protection class IP | IP69K |
| wind load / maximum | Survival at 500 km/h |
Design, dimensions and weights 6
| width | 100 mm |
|---|---|
| height | 40 mm |
| depth | 145 mm |
| fastening method: mast mounting | No |
| fastening method: flat roof mounting | Yes |
| fastening method: directly on the device | No |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Standards, specifications, approvals 4
| certificate of suitability | Railway application acc. to DIN5510-2, BS6853, NF-F-16-101, NF-F-16-102 |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| certificate of suitability: railway application in accordance with EN 50155 | Yes |
| certificate of suitability: fire protection in accordance with EN 45545-2 | Yes |
Logistics 7
| Net weight | 0.488 kg |
|---|---|
| Package dimensions | 100 × 40 × 145 mm |
| Country of origin | Poland |
| Shipping weight | 0.988 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5896-6MH00-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
- railway application in accordance with EN 50155
- fire protection in accordance with EN 45545-2
Quick answers
Questions about the Antenna ANT896-6MH ANT896-6MH mobile wireless antenna for GSM (2G), UMTS (3G) and LTE (4G) Networks, for Suitable for railway applications, Omnidirectional Characteristic, including N-Connect female connection; 5/6 dBi; IP69K (-40...+85 °C), observe national approvals; mounting on vehicle roof; compact instructions as hard copy German/English; scope of delivery: 1x ANT 896-6MH,.
What is the HS code of Antenna ANT896-6MH ANT896-6MH mobile wireless antenna for GSM (2G), UMTS (3G) and LTE (4G) Networks, for Suitable for railway applications, Omnidirectional Characteristic, including N-Connect female connection; 5/6 dBi; IP69K (-40...+85 °C), observe national approvals; mounting on vehicle roof; compact instructions as hard copy German/English; scope of delivery: 1x ANT 896-6MH,. for customs?
The tariff (HS) code on file for Antenna ANT896-6MH ANT896-6MH mobile wireless antenna for GSM (2G), UMTS (3G) and LTE (4G) Networks, for Suitable for railway applications, Omnidirectional Characteristic, including N-Connect female connection; 5/6 dBi; IP69K (-40...+85 °C), observe national approvals; mounting on vehicle roof; compact instructions as hard copy German/English; scope of delivery: 1x ANT 896-6MH,. is 85177100.
What is the EAN of Antenna ANT896-6MH ANT896-6MH mobile wireless antenna for GSM (2G), UMTS (3G) and LTE (4G) Networks, for Suitable for railway applications, Omnidirectional Characteristic, including N-Connect female connection; 5/6 dBi; IP69K (-40...+85 °C), observe national approvals; mounting on vehicle roof; compact instructions as hard copy German/English; scope of delivery: 1x ANT 896-6MH,.?
The EAN (GTIN) of Antenna ANT896-6MH ANT896-6MH mobile wireless antenna for GSM (2G), UMTS (3G) and LTE (4G) Networks, for Suitable for railway applications, Omnidirectional Characteristic, including N-Connect female connection; 5/6 dBi; IP69K (-40...+85 °C), observe national approvals; mounting on vehicle roof; compact instructions as hard copy German/English; scope of delivery: 1x ANT 896-6MH,. is 4019169855662.
Where does Antenna ANT896-6MH ANT896-6MH mobile wireless antenna for GSM (2G), UMTS (3G) and LTE (4G) Networks, for Suitable for railway applications, Omnidirectional Characteristic, including N-Connect female connection; 5/6 dBi; IP69K (-40...+85 °C), observe national approvals; mounting on vehicle roof; compact instructions as hard copy German/English; scope of delivery: 1x ANT 896-6MH,. ship from, and how fast?
Antenna ANT896-6MH ANT896-6MH mobile wireless antenna for GSM (2G), UMTS (3G) and LTE (4G) Networks, for Suitable for railway applications, Omnidirectional Characteristic, including N-Connect female connection; 5/6 dBi; IP69K (-40...+85 °C), observe national approvals; mounting on vehicle roof; compact instructions as hard copy German/English; scope of delivery: 1x ANT 896-6MH,. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
