- Part number
- 6GK5896-4MA00-0AA3
- Model no
- Antenna ANT896-4MA ANT896-4MA mobile wireless antenna for GSM (2G), UMTS (3G) and LTE(4G) networks; Omnidirectional Characteristic, Radially rotatable, with additional joint, Antenna gain: 2 dBi, incl. SMA plug, IP54, (-40-+85 °C), observe national approvals; for direct installation with SMA connection system; scope of delivery: 1x ANT 896-4MA, compact instructions as hard copy German/English.

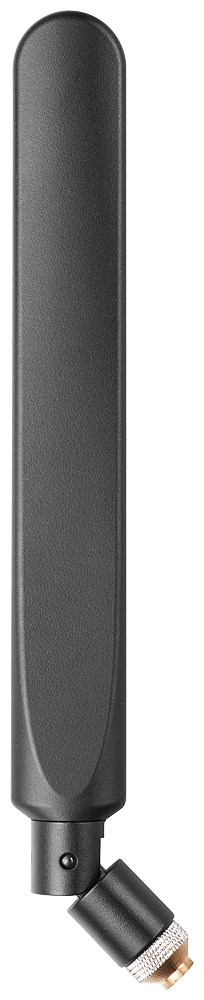

Siemens 6GK5896-4MA00-0AA3 ANT896-4MA GSM/UMTS/LTE Antenna 2dBi IP54 IWLAN Antenna
ANT896-4MA mobile antenna, GSM/UMTS/LTE, 2 dBi, male SMA plug, IP54, -40 to +85C.
Description
About the Antenna ANT896-4MA ANT896-4MA mobile wireless antenna for GSM (2G), UMTS (3G) and LTE(4G) networks; Omnidirectional Characteristic, Radially rotatable, with additional joint, Antenna gain: 2 dBi, incl. SMA plug, IP54, (-40-+85 °C), observe national approvals; for direct installation with SMA connection system; scope of delivery: 1x ANT 896-4MA, compact instructions as hard copy German/English.
About the Antenna ANT896-4MA ANT896-4MA mobile wireless antenna for GSM (2G), UMTS (3G) and LTE(4G) networks; Omnidirectional Characteristic, Radially rotatable, with additional joint, Antenna gain: 2 dBi, incl. SMA plug, IP54, (-40-+85 °C), observe national approvals; for direct installation with SMA connection system; scope of delivery: 1x ANT 896-4MA, compact instructions as hard copy German/English.
The Siemens 6GK5896-4MA00-0AA3 ANT896-4MA is an omnidirectional mobile-radio antenna covering GSM, UMTS, and LTE bands from 698 to 2700 MHz, with roughly 2 dB gain across all three ranges. It connects directly to a router via a male SMA plug that swivels 0 to 90 degrees, is rated IP54 for -40 to +85 degrees C, and weighs 44 g.
Certifications & Standards
- RoHS
Selection Notes
The male SMA connector swivels 0 to 90 degrees, so the antenna mounts directly on a router's antenna socket without a separate cable run. Its 360-degree horizontal pattern and roughly 2 dB gain across the GSM, UMTS, and LTE bands make it a general-purpose cellular antenna rather than a directional, high-gain unit for weak-signal sites.
Specification
Full specification
General 2
| product type designation | Antenna ANT896-4MA ANT896-4MA mobile wireless antenna for GSM (2G), UMTS (3G) and LTE(4G) networks; Omnidirectional Characteristic, Radially rotatable, with additional joint, Antenna gain: 2 dBi, incl. SMA plug, IP54, (-40-+85 °C), observe national approvals; for direct installation with SMA connection system; scope of delivery: 1x ANT 896-4MA, compact instructions as hard copy German/English. |
|---|---|
| product brand name | SCALANCE |
Radio frequencies 4
| type of wireless network / is supported | LTE, UMTS, GSM |
|---|---|
| operating frequency / 1 | 698 ... 960 MHz |
| operating frequency / 2 | 1575.42 MHz |
| operating frequency / 3 | 1710 ... 2700 MHz |
Electrical data 9
| antenna gain compared to spherical radiator: with linear radiation | typical gain |
|---|---|
| impedance | 50 Ω |
| polarization | Linear Vertical |
| radiation characteristic | omnidirectional |
| standing wave ratio (VSWR) / maximum | 2.5 |
| radiating angle of the antenna: horizontal | 360° |
| number of electrical connections / of the antenna | 1 |
| type of electrical connection / of the antenna | SMA Connector |
| design of plug-in connection | male, variable 0-90° |
Show all 40 specifications ↓ Show less ↑25 more values in Identification, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Logistics.
Identification 10
| Part number | 6GK5896-4MA00-0AA3 |
|---|---|
| Type designation | Antenna ANT896-4MA ANT896-4MA mobile wireless antenna for GSM (2G), UMTS (3G) and LTE(4G) networks; Omnidirectional Characteristic, Radially rotatable, with additional joint, Antenna gain: 2 dBi, incl. SMA plug, IP54, (-40-+85 °C), observe national approvals; for direct installation with SMA connection system; scope of delivery: 1x ANT 896-4MA, compact instructions as hard copy German/English. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169855358 |
| ETIM class | EC001698 |
| eCl@ss | 19070107 |
Ambient conditions 2
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| protection class IP | IP54 |
Design, dimensions and weights 4
| width | 24 mm |
|---|---|
| height | 210 mm |
| fastening method: flat roof mounting | No |
| fastening method: directly on the device | Yes |
Product features, product functions, product components / general 2
| product feature / silicon-free | Yes |
|---|---|
| standards, specifications, approvals certificate of suitability: RoHS conformity | Yes |
Logistics 7
| Net weight | 0.058 kg |
|---|---|
| Package dimensions | 24 × 210 × 24 mm |
| Country of origin | CN |
| Shipping weight | 0.558 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5896-4MA00-0AA3
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
Quick answers
Questions about the Antenna ANT896-4MA ANT896-4MA mobile wireless antenna for GSM (2G), UMTS (3G) and LTE(4G) networks; Omnidirectional Characteristic, Radially rotatable, with additional joint, Antenna gain: 2 dBi, incl. SMA plug, IP54, (-40-+85 °C), observe national approvals; for direct installation with SMA connection system; scope of delivery: 1x ANT 896-4MA, compact instructions as hard copy German/English.
What is the HS code of Antenna ANT896-4MA ANT896-4MA mobile wireless antenna for GSM (2G), UMTS (3G) and LTE(4G) networks; Omnidirectional Characteristic, Radially rotatable, with additional joint, Antenna gain: 2 dBi, incl. SMA plug, IP54, (-40-+85 °C), observe national approvals; for direct installation with SMA connection system; scope of delivery: 1x ANT 896-4MA, compact instructions as hard copy German/English. for customs?
The tariff (HS) code on file for Antenna ANT896-4MA ANT896-4MA mobile wireless antenna for GSM (2G), UMTS (3G) and LTE(4G) networks; Omnidirectional Characteristic, Radially rotatable, with additional joint, Antenna gain: 2 dBi, incl. SMA plug, IP54, (-40-+85 °C), observe national approvals; for direct installation with SMA connection system; scope of delivery: 1x ANT 896-4MA, compact instructions as hard copy German/English. is 85177100.
What is the EAN of Antenna ANT896-4MA ANT896-4MA mobile wireless antenna for GSM (2G), UMTS (3G) and LTE(4G) networks; Omnidirectional Characteristic, Radially rotatable, with additional joint, Antenna gain: 2 dBi, incl. SMA plug, IP54, (-40-+85 °C), observe national approvals; for direct installation with SMA connection system; scope of delivery: 1x ANT 896-4MA, compact instructions as hard copy German/English.?
The EAN (GTIN) of Antenna ANT896-4MA ANT896-4MA mobile wireless antenna for GSM (2G), UMTS (3G) and LTE(4G) networks; Omnidirectional Characteristic, Radially rotatable, with additional joint, Antenna gain: 2 dBi, incl. SMA plug, IP54, (-40-+85 °C), observe national approvals; for direct installation with SMA connection system; scope of delivery: 1x ANT 896-4MA, compact instructions as hard copy German/English. is 4019169855358.
Where does Antenna ANT896-4MA ANT896-4MA mobile wireless antenna for GSM (2G), UMTS (3G) and LTE(4G) networks; Omnidirectional Characteristic, Radially rotatable, with additional joint, Antenna gain: 2 dBi, incl. SMA plug, IP54, (-40-+85 °C), observe national approvals; for direct installation with SMA connection system; scope of delivery: 1x ANT 896-4MA, compact instructions as hard copy German/English. ship from, and how fast?
Antenna ANT896-4MA ANT896-4MA mobile wireless antenna for GSM (2G), UMTS (3G) and LTE(4G) networks; Omnidirectional Characteristic, Radially rotatable, with additional joint, Antenna gain: 2 dBi, incl. SMA plug, IP54, (-40-+85 °C), observe national approvals; for direct installation with SMA connection system; scope of delivery: 1x ANT 896-4MA, compact instructions as hard copy German/English. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
